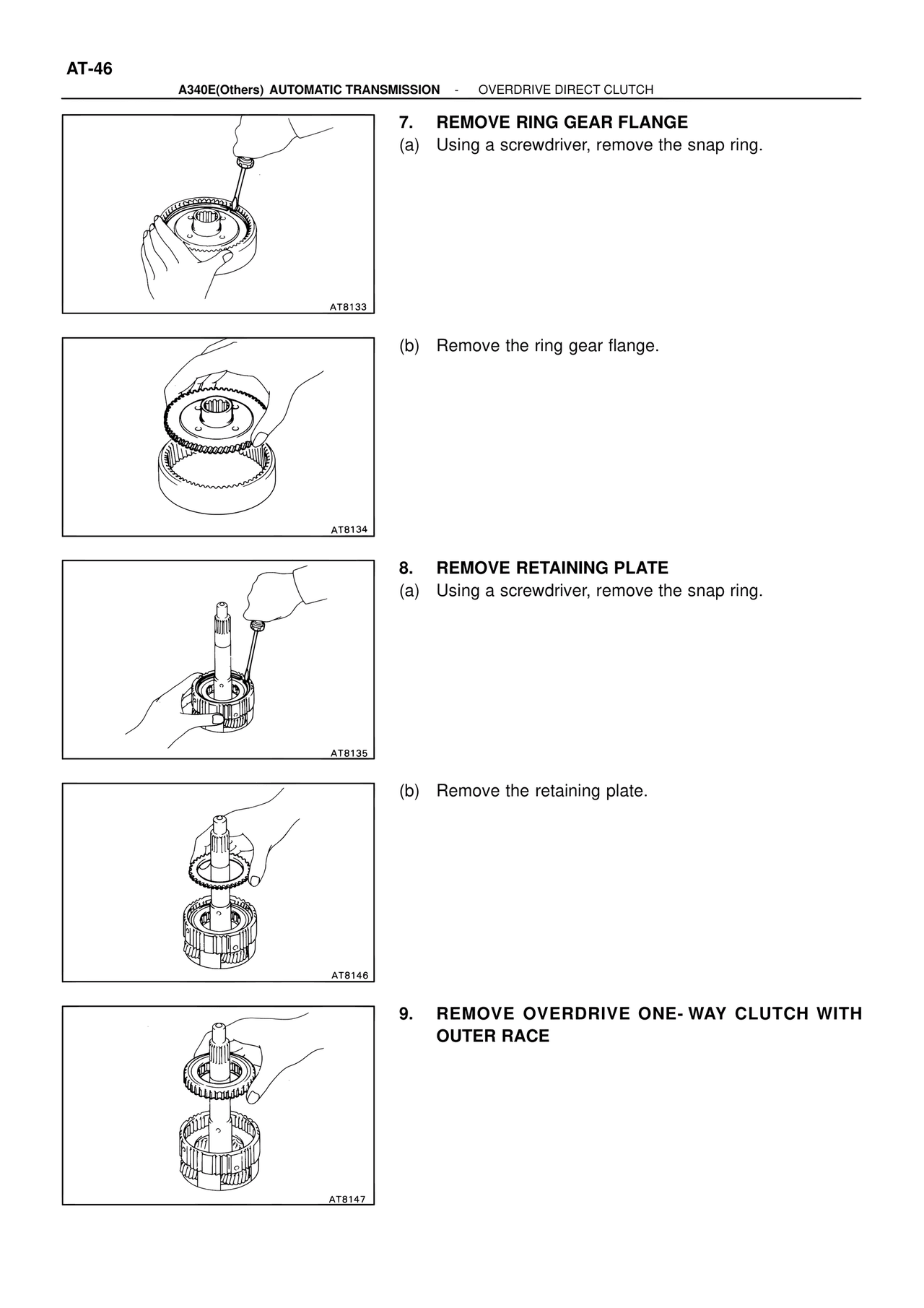

AT-46 A340E(Others) AUTOMATIC TRANSMISSION - OVERDRIVE DIRECT CLUTCH 7. REMOVE RING GEAR FLANGE (a) Using a screwdriver, remove the snap ring. AT8133 (b) Remove the ring gear flange. AT8134 8. REMOVE RETAINING PLATE (a) Using a screwdriver, remove the snap ring. AT8135 (b) Remove the retaining plate. AT8146 9. REMOVE OVERDRIVE ONE-WAY CLUTCH WITH OUTER RACE AT8147
