AT-53

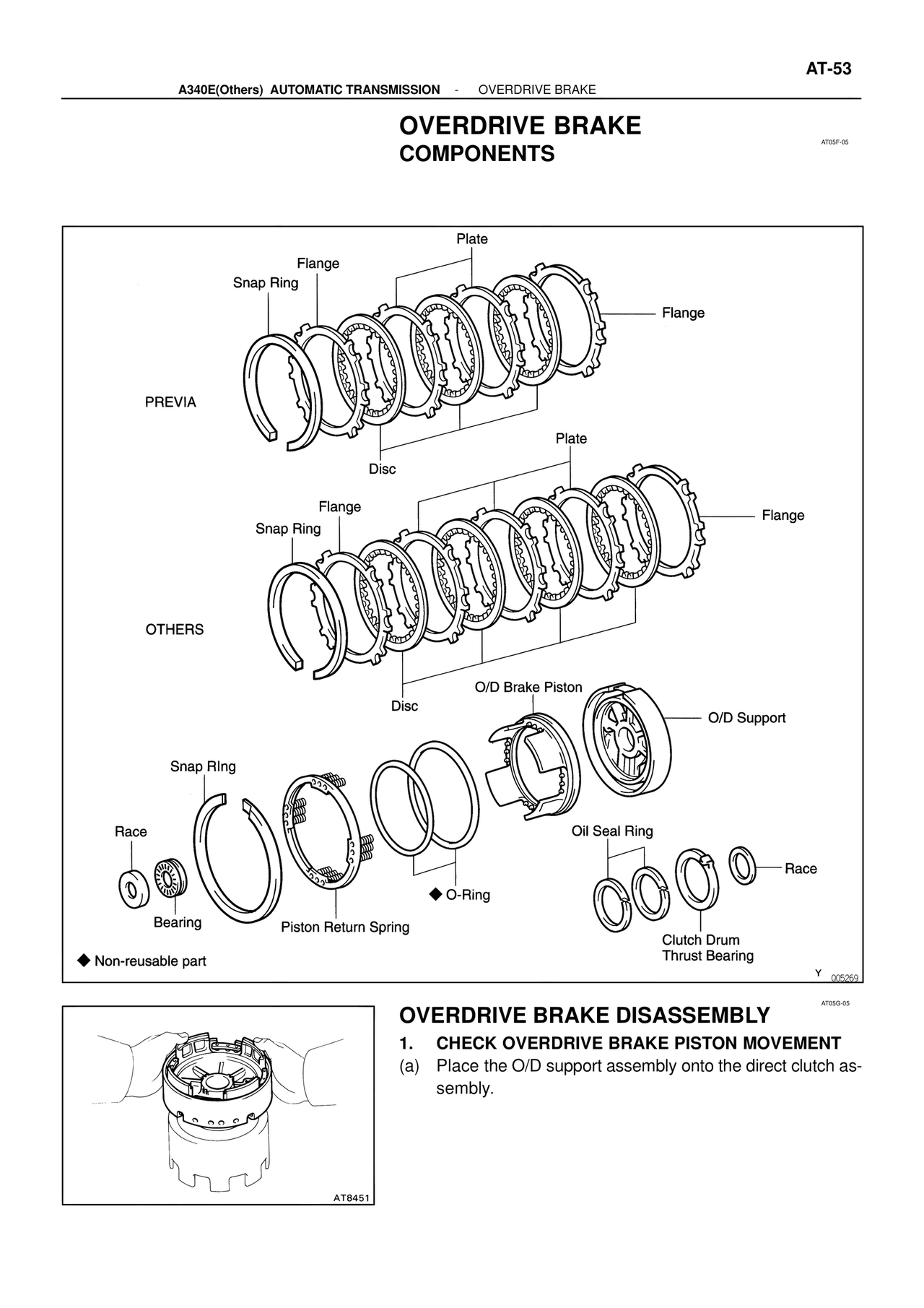

A340E(Others) AUTOMATIC TRANSMISSION - OVERDRIVE BRAKE
OVERDRIVE BRAKE
COMPONENTS
AT05F-05
Plate
Flange
Snap Ring
Flange
PREVIA
Plate
Disc
Flange
Snap Ring
Flange
OTHERS
Disc
O/D Brake Piston
O/D Support
Snap Ring
Oil Seal Ring
Race
Race
Bearing
◆ O-Ring
Piston Return Spring
Clutch Drum
Thrust Bearing
◆ Non-reusable part
Y 005269
AT05G-05
OVERDRIVE BRAKE DISASSEMBLY
1. CHECK OVERDRIVE BRAKE PISTON MOVEMENT
(a) Place the O/D support assembly onto the direct clutch assembly.
AT8451
