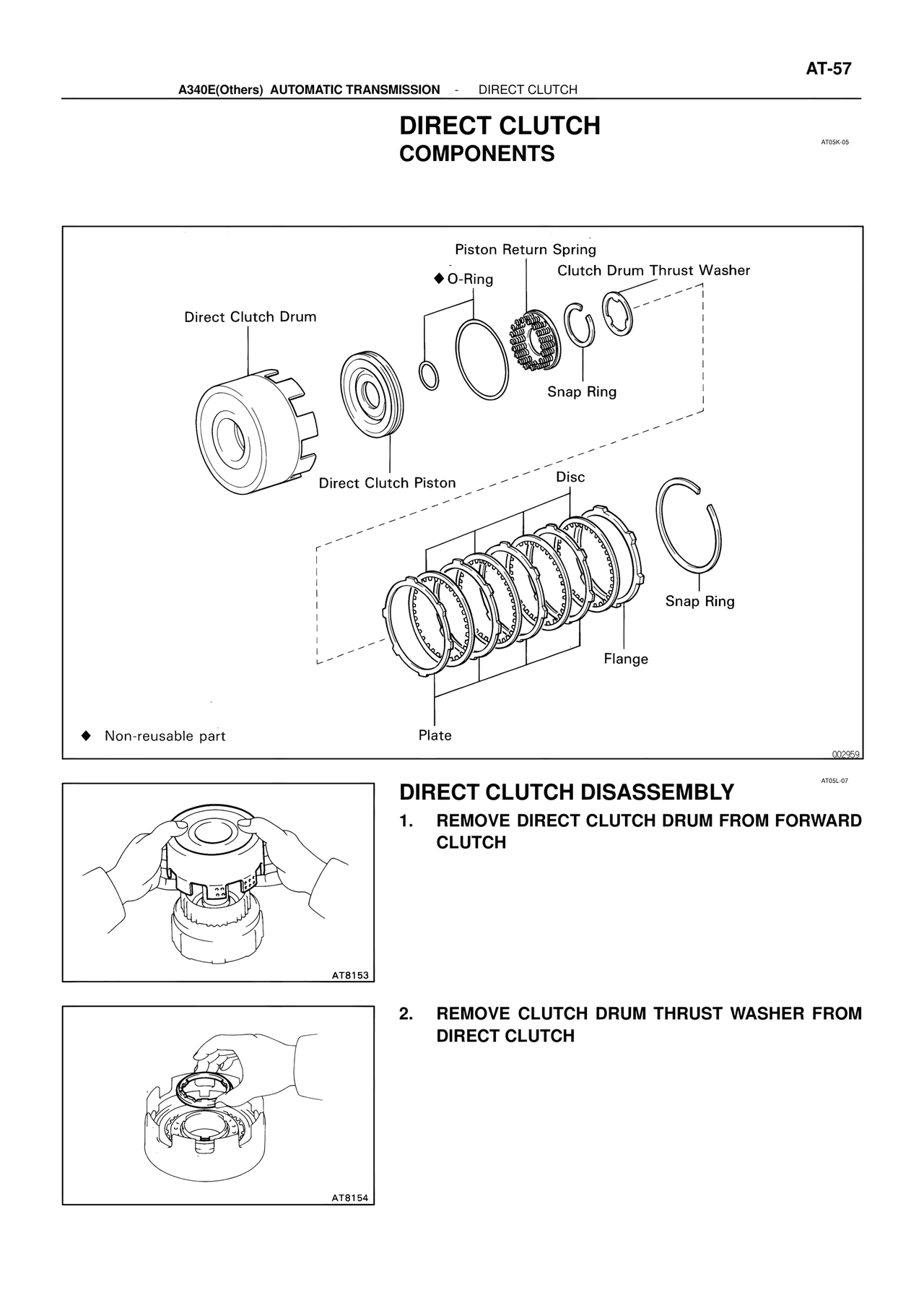

AT-57 A340E(Others) AUTOMATIC TRANSMISSION - DIRECT CLUTCH DIRECT CLUTCH COMPONENTS AT05K-05 Direct Clutch Drum Piston Return Spring ◆ O-Ring Clutch Drum Thrust Washer Snap Ring Direct Clutch Piston Disc Snap Ring Flange ◆ Non-reusable part Plate 000959 AT05L-07 DIRECT CLUTCH DISASSEMBLY 1. REMOVE DIRECT CLUTCH DRUM FROM FORWARD CLUTCH AT8153 2. REMOVE CLUTCH DRUM THRUST WASHER FROM DIRECT CLUTCH AT8154
