AT-63

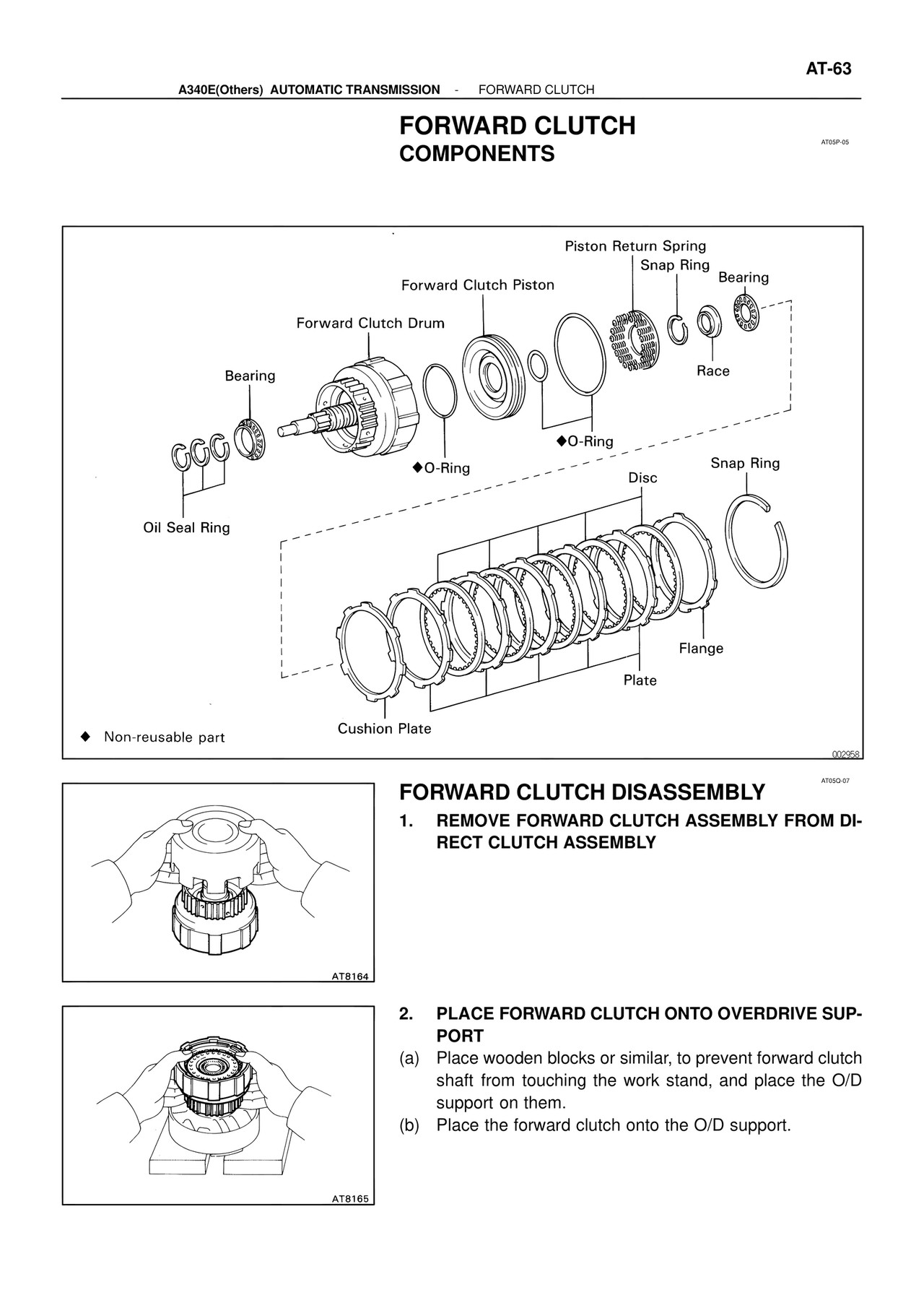

A340E(Others) AUTOMATIC TRANSMISSION - FORWARD CLUTCH
FORWARD CLUTCH
COMPONENTS
AT05P-05
Piston Return Spring
Snap Ring
Bearing
Forward Clutch Piston
Forward Clutch Drum
Race
Bearing
♦O-Ring
♦O-Ring
Disc
Snap Ring
Oil Seal Ring
Flange
Plate
Cushion Plate
♦ Non-reusable part
000958
FORWARD CLUTCH DISASSEMBLY
AT05Q-07
1. REMOVE FORWARD CLUTCH ASSEMBLY FROM DIRECT CLUTCH ASSEMBLY
AT8164
2. PLACE FORWARD CLUTCH ONTO OVERDRIVE SUPPORT
(a) Place wooden blocks or similar, to prevent forward clutch shaft from touching the work stand, and place the O/D support on them.
(b) Place the forward clutch onto the O/D support.
AT8165
