AT-77

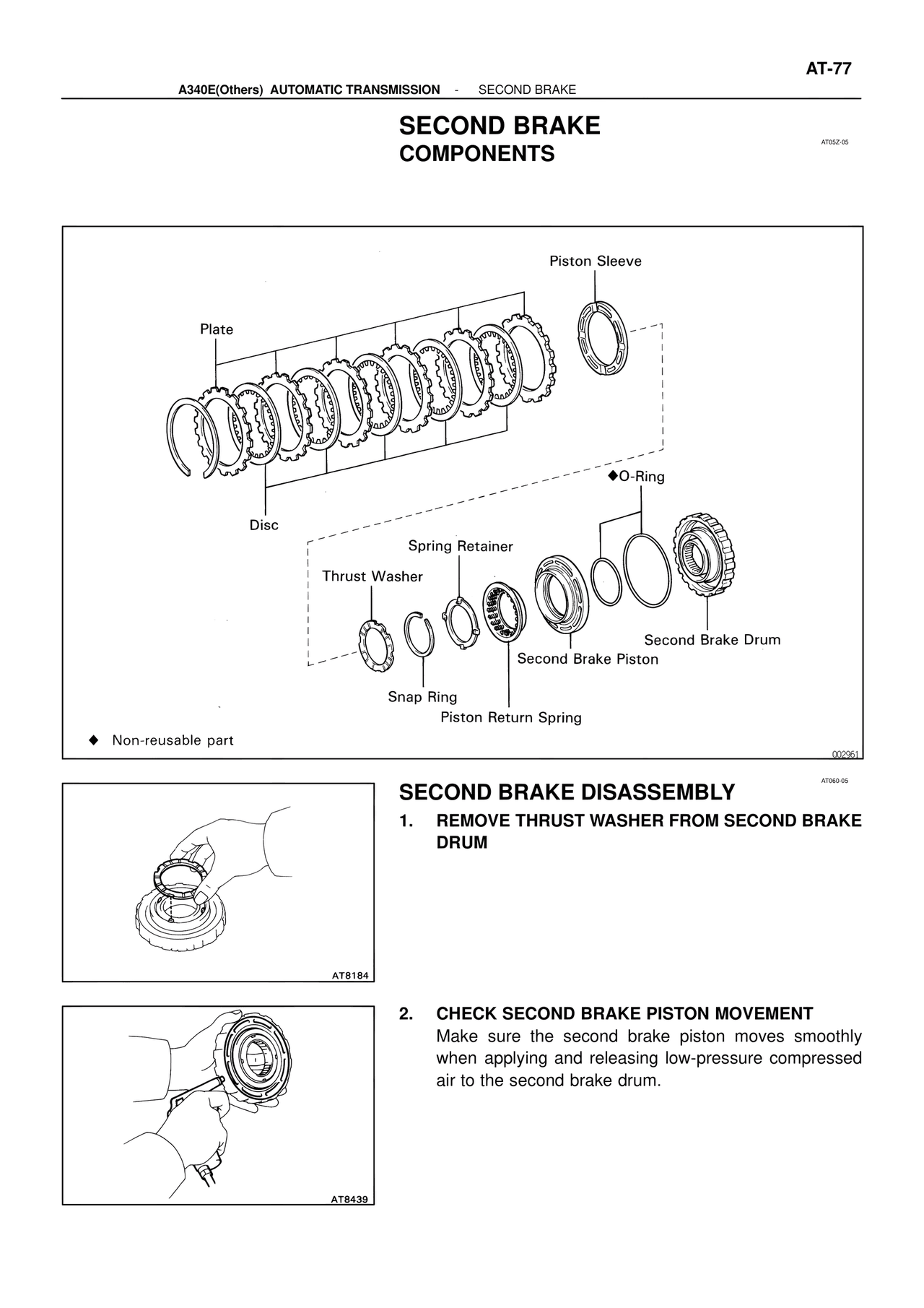

A340E(Others) AUTOMATIC TRANSMISSION - SECOND BRAKE
SECOND BRAKE
COMPONENTS
AT05Z-05
Piston Sleeve
Plate
◆O-Ring
Disc
Spring Retainer
Thrust Washer
Second Brake Drum
Second Brake Piston
Snap Ring
Piston Return Spring
◆ Non-reusable part
002961
AT060-05
SECOND BRAKE DISASSEMBLY
1. REMOVE THRUST WASHER FROM SECOND BRAKE
DRUM
AT8184
2. CHECK SECOND BRAKE PISTON MOVEMENT
Make sure the second brake piston moves smoothly
when applying and releasing low-pressure compressed
air to the second brake drum.
AT8439
