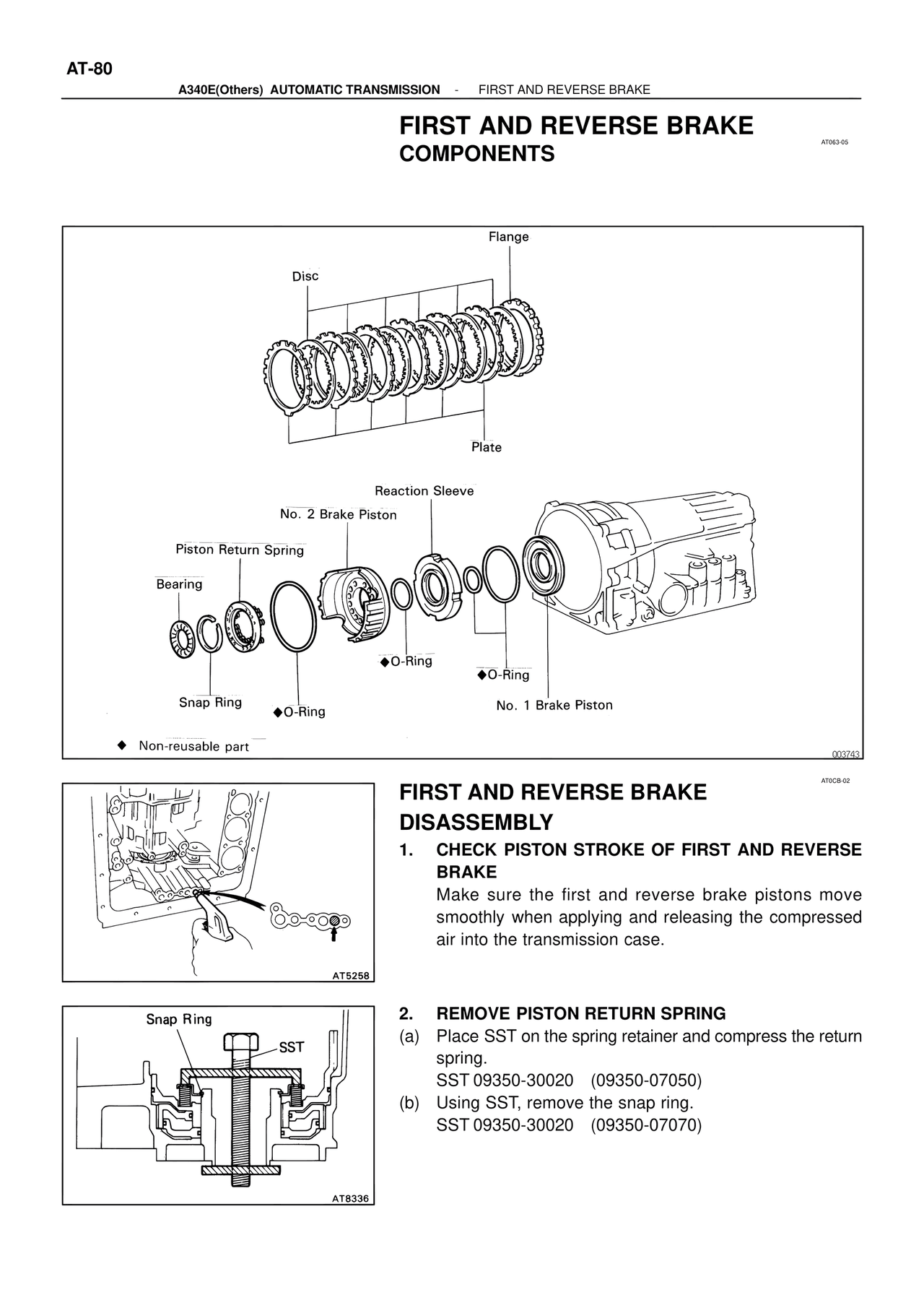

ATR/ATM Unit Repair — First and Reverse Brake Components, page 226

AT-80

A340E(Others) AUTOMATIC TRANSMISSION - FIRST AND REVERSE BRAKE

FIRST AND REVERSE BRAKE COMPONENTS

AT063-05

Flange
Disc
Plate
Reaction Sleeve
No. 2 Brake Piston
Piston Return Spring
Bearing
♦O-Ring
♦O-Ring
Snap Ring
♦O-Ring
No. 1 Brake Piston

♦ Non-reusable part

003743

AT0CB-02

FIRST AND REVERSE BRAKE DISASSEMBLY

1. CHECK PISTON STROKE OF FIRST AND REVERSE BRAKE
Make sure the first and reverse brake pistons move smoothly when applying and releasing the compressed air into the transmission case.

AT5258

Snap Ring
SST

2. REMOVE PISTON RETURN SPRING
(a) Place SST on the spring retainer and compress the return spring.
SST 09350-30020 (09350-07050)
(b) Using SST, remove the snap ring.
SST 09350-30020 (09350-07070)

AT8336
