A340E(Others) AUTOMATIC TRANSMISSION - UPPER VALVE BODY

AT06E-05

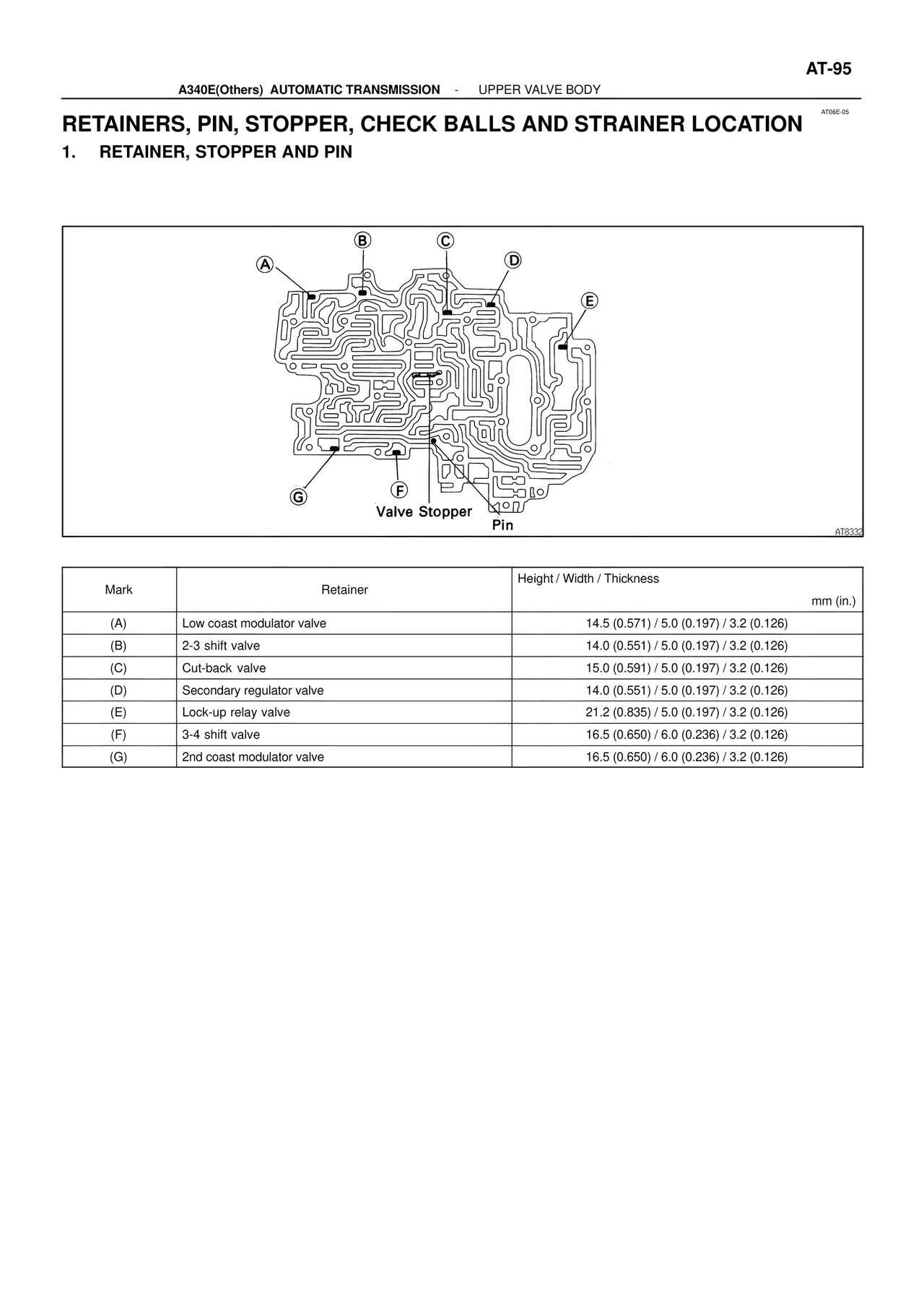

RETAINERS, PIN, STOPPER, CHECK BALLS AND STRAINER LOCATION
1. RETAINER, STOPPER AND PIN

(B) (C)
(A) (D)
(E)

(G) (F)
Valve Stopper Pin

AT8332

Mark | Retainer | Height / Width / Thickness
mm (in.)
(A) | Low coast modulator valve | 14.5 (0.571) / 5.0 (0.197) / 3.2 (0.126)
(B) | 2-3 shift valve | 14.0 (0.551) / 5.0 (0.197) / 3.2 (0.126)
(C) | Cut-back valve | 15.0 (0.591) / 5.0 (0.197) / 3.2 (0.126)
(D) | Secondary regulator valve | 14.0 (0.551) / 5.0 (0.197) / 3.2 (0.126)
(E) | Lock-up relay valve | 21.2 (0.835) / 5.0 (0.197) / 3.2 (0.126)
(F) | 3-4 shift valve | 16.5 (0.650) / 6.0 (0.236) / 3.2 (0.126)
(G) | 2nd coast modulator valve | 16.5 (0.650) / 6.0 (0.236) / 3.2 (0.126)
