AT-98

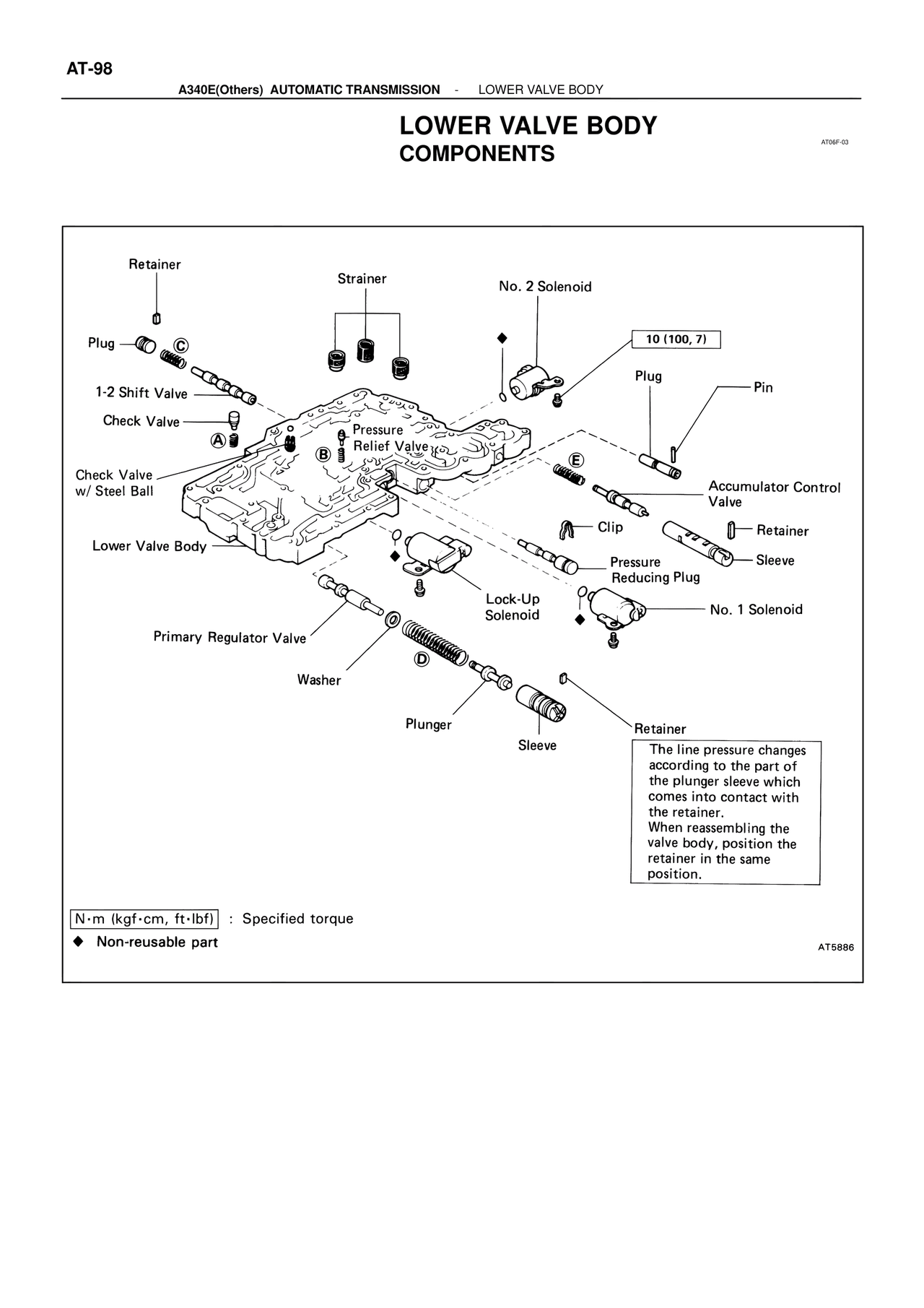

A340E(Others) AUTOMATIC TRANSMISSION - LOWER VALVE BODY
LOWER VALVE BODY
COMPONENTS
AT06F-03
Retainer
Strainer
No. 2 Solenoid
Plug
10 (100, 7)
Plug
Pin
1-2 Shift Valve
Check Valve
Pressure
Relief Valve
Check Valve
w/ Steel Ball
Accumulator Control
Valve
Clip
Retainer
Lower Valve Body
Sleeve
Pressure Reducing Plug
No. 1 Solenoid
Primary Regulator Valve
Lock-Up
Solenoid
Washer
Plunger
Retainer
Sleeve
The line pressure changes
according to the part of
the plunger sleeve which
comes into contact with
the retainer.
When reassembling the
valve body, position the
retainer in the same
position.
N·m (kgf·cm, ft·lbf) : Specified torque
◆ Non-reusable part
AT5886
