A340E(Others)  AUTOMATIC TRANSMISSION  -  LOWER VALVE BODY

AT08H-06

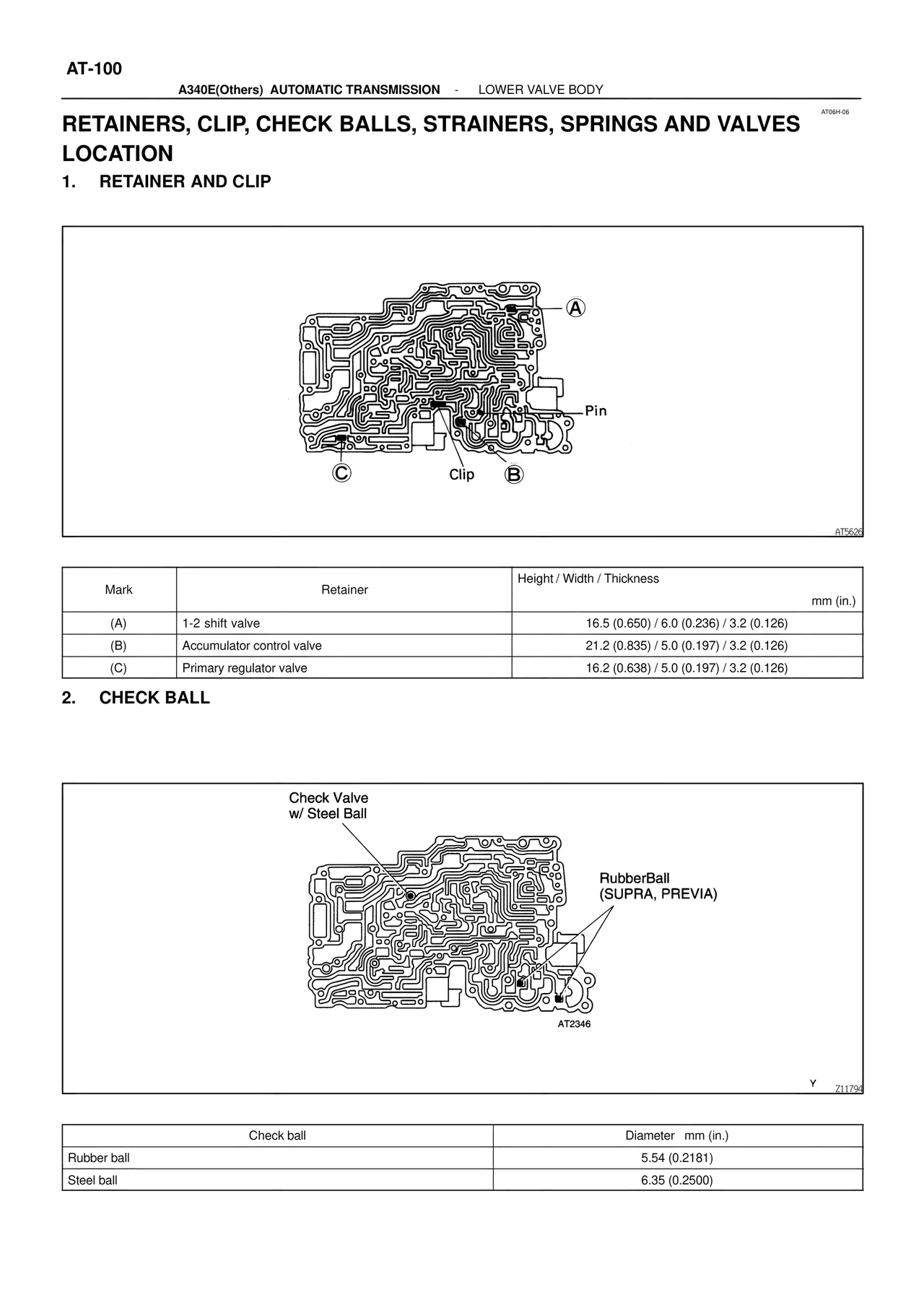

RETAINERS, CLIP, CHECK BALLS, STRAINERS, SPRINGS AND VALVES LOCATION

1.    RETAINER AND CLIP

A

Pin

C          Clip     B

AT5626

Mark          Retainer                                                    Height / Width / Thickness
                                                                                                    mm (in.)
(A)           1-2 shift valve                                            16.5 (0.650) / 6.0 (0.236) / 3.2 (0.126)
(B)           Accumulator control valve                          21.2 (0.835) / 5.0 (0.197) / 3.2 (0.126)
(C)           Primary regulator valve                             16.2 (0.638) / 5.0 (0.197) / 3.2 (0.126)

2.    CHECK BALL

Check Valve
w/ Steel Ball

RubberBall
(SUPRA, PREVIA)

AT2346

Y    Z11794

Check ball                                                              Diameter  mm (in.)
Rubber ball                                                            5.54 (0.2181)
Steel ball                                                              6.35 (0.2500)
