AT-105

A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION

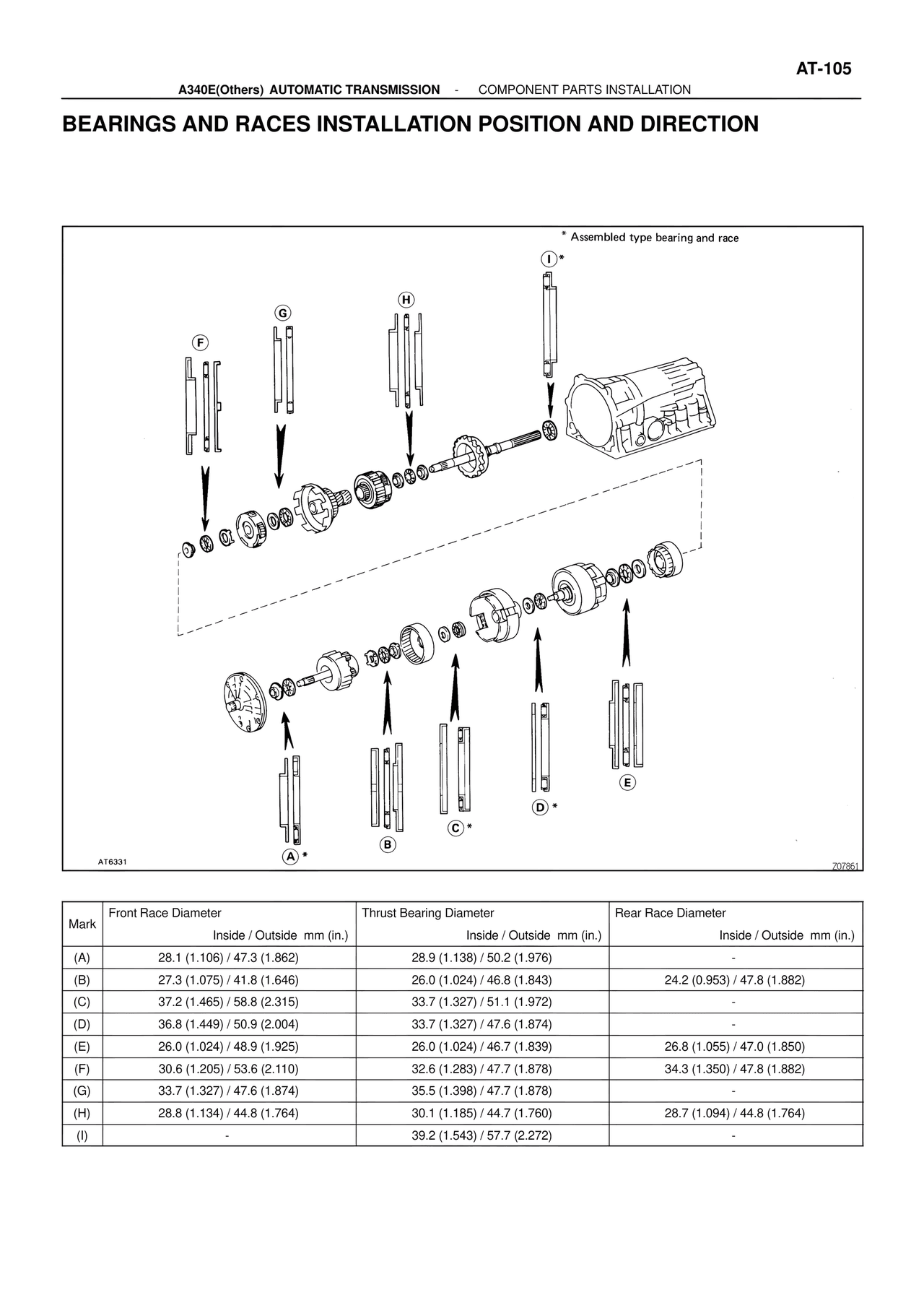

BEARINGS AND RACES INSTALLATION POSITION AND DIRECTION

* Assembled type bearing and race

(I)*

(H)

(G)

(F)

(E)

(D)*

(C)*

(B)

(A)*

AT6331
Z07861

Mark | Front Race Diameter | Thrust Bearing Diameter | Rear Race Diameter
     | Inside / Outside mm (in.) | Inside / Outside mm (in.) | Inside / Outside mm (in.)

(A) | 28.1 (1.106) / 47.3 (1.862) | 28.9 (1.138) / 50.2 (1.976) | -
(B) | 27.3 (1.075) / 41.8 (1.646) | 26.0 (1.024) / 46.8 (1.843) | 24.2 (0.953) / 47.8 (1.882)
(C) | 37.2 (1.465) / 58.8 (2.315) | 33.7 (1.327) / 51.1 (1.972) | -
(D) | 36.8 (1.449) / 50.9 (2.004) | 33.7 (1.327) / 47.6 (1.874) | -
(E) | 26.0 (1.024) / 48.9 (1.925) | 26.0 (1.024) / 46.7 (1.839) | 26.8 (1.055) / 47.0 (1.850)
(F) | 30.6 (1.205) / 53.6 (2.110) | 32.6 (1.283) / 47.7 (1.878) | 34.3 (1.350) / 47.8 (1.882)
(G) | 33.7 (1.327) / 47.6 (1.874) | 35.5 (1.398) / 47.7 (1.878) | -
(H) | 28.8 (1.134) / 44.8 (1.764) | 30.1 (1.185) / 44.7 (1.760) | 28.7 (1.094) / 44.8 (1.764)
(I) | - | 39.2 (1.543) / 57.7 (2.272) | -
