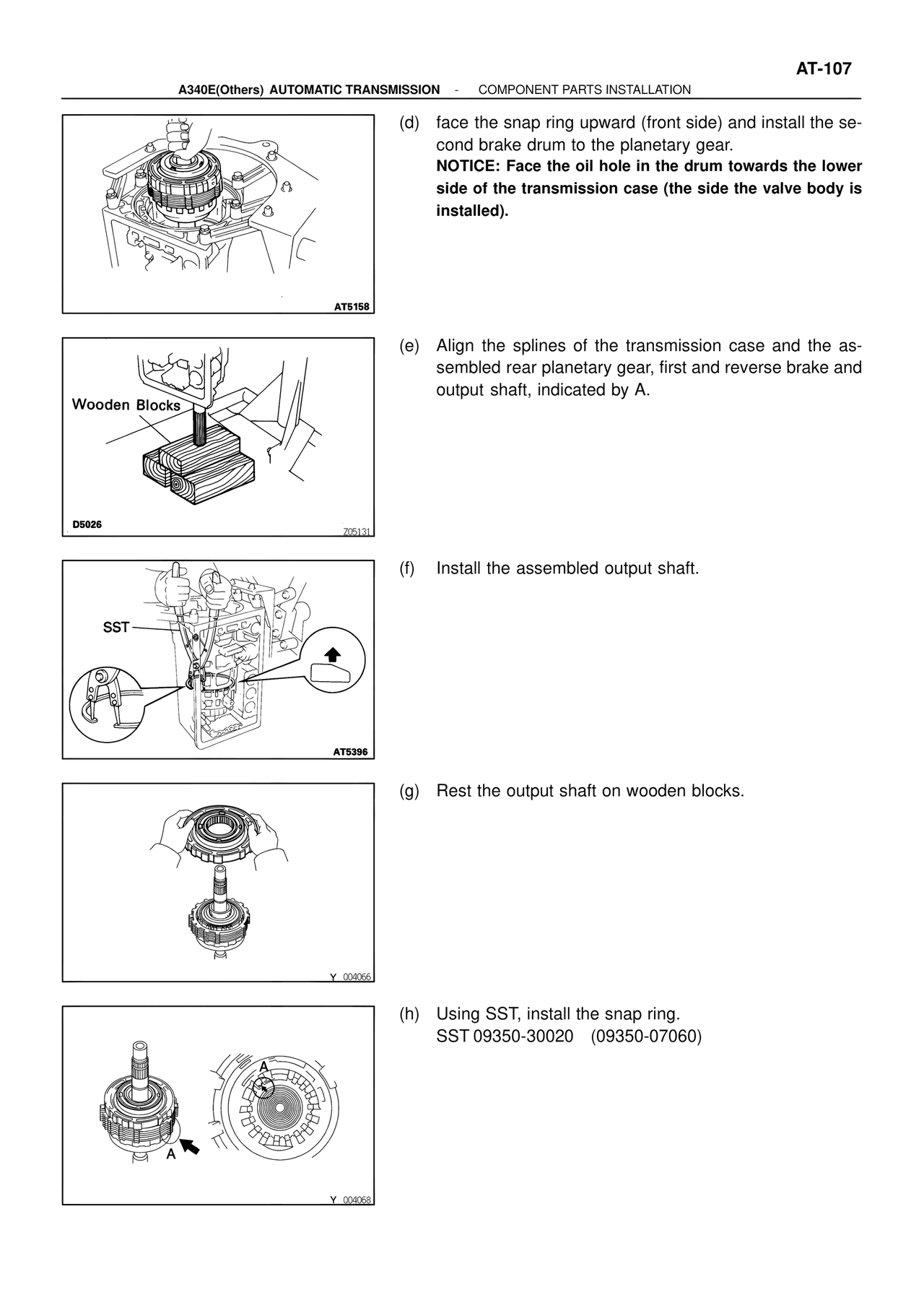

AT-107
A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION
AT5158
(d) face the snap ring upward (front side) and install the se-
cond brake drum to the planetary gear.
NOTICE: Face the oil hole in the drum towards the lower
side of the transmission case (the side the valve body is
installed).
Wooden Blocks
D5026 Z05131
(e) Align the splines of the transmission case and the as-
sembled rear planetary gear, first and reverse brake and
output shaft, indicated by A.
SST
AT5396
(f) Install the assembled output shaft.
Y 004066
(g) Rest the output shaft on wooden blocks.
A
Y 004068
(h) Using SST, install the snap ring.
SST 09350-30020 (09350-07060)
