A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION
Seal Breadth
2 – 3 mm (0.08 – 0.12 in.)
AT1362
AT4472
Q00626
Q00779
AT8478

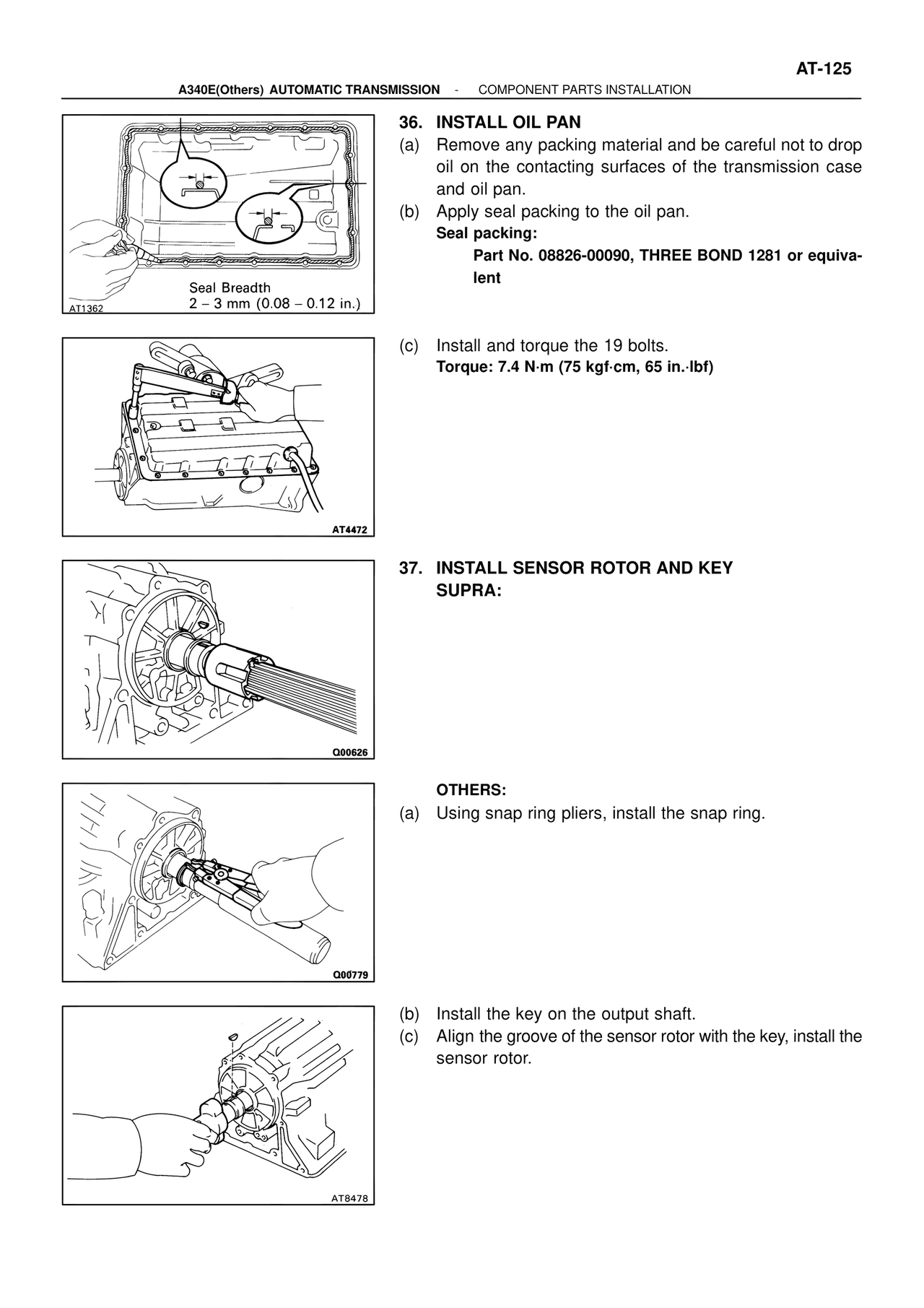

36. INSTALL OIL PAN
(a) Remove any packing material and be careful not to drop oil on the contacting surfaces of the transmission case and oil pan.
(b) Apply seal packing to the oil pan.
Seal packing:
Part No. 08826-00090, THREE BOND 1281 or equivalent
(c) Install and torque the 19 bolts.
Torque: 7.4 N·m (75 kgf·cm, 65 in.·lbf)
37. INSTALL SENSOR ROTOR AND KEY
SUPRA:
OTHERS:
(a) Using snap ring pliers, install the snap ring.
(b) Install the key on the output shaft.
(c) Align the groove of the sensor rotor with the key, install the sensor rotor.
