AT-38
A340H AUTOMATIC TRANSMISSION - SERVICE SPECIFICATIONS
AT06Q-08

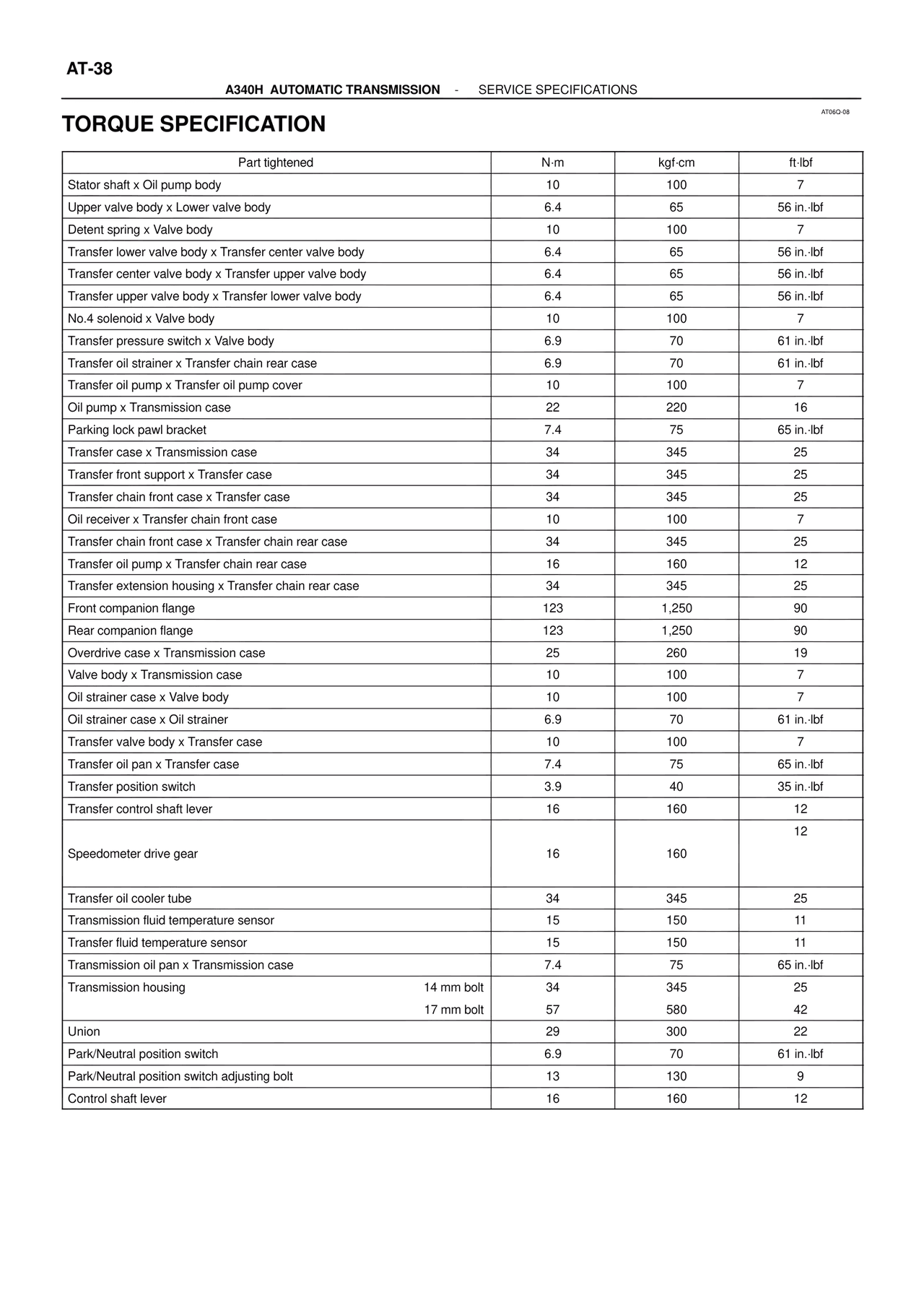

TORQUE SPECIFICATION
Part tightened N·m kgf·cm ft·lbf
Stator shaft x Oil pump body 10 100 7
Upper valve body x Lower valve body 6.4 65 56 in.·lbf
Detent spring x Valve body 10 100 7
Transfer lower valve body x Transfer center valve body 6.4 65 56 in.·lbf
Transfer center valve body x Transfer upper valve body 6.4 65 56 in.·lbf
Transfer upper valve body x Transfer lower valve body 6.4 65 56 in.·lbf
No.4 solenoid x Valve body 10 100 7
Transfer pressure switch x Valve body 6.9 70 61 in.·lbf
Transfer oil strainer x Transfer chain rear case 6.9 70 61 in.·lbf
Transfer oil pump x Transfer oil pump cover 10 100 7
Oil pump x Transmission case 22 220 16
Parking lock pawl bracket 7.4 75 65 in.·lbf
Transfer case x Transmission case 34 345 25
Transfer front support x Transfer case 34 345 25
Transfer chain front case x Transfer case 34 345 25
Oil receiver x Transfer chain front case 10 100 7
Transfer chain front case x Transfer chain rear case 34 345 25
Transfer oil pump x Transfer chain rear case 16 160 12
Transfer extension housing x Transfer chain rear case 34 345 25
Front companion flange 123 1,250 90
Rear companion flange 123 1,250 90
Overdrive case x Transmission case 25 260 19
Valve body x Transmission case 10 100 7
Oil strainer case x Valve body 10 100 7
Oil strainer case x Oil strainer 6.9 70 61 in.·lbf
Transfer valve body x Transfer case 10 100 7
Transfer oil pan x Transfer case 7.4 75 65 in.·lbf
Transfer position switch 3.9 40 35 in.·lbf
Transfer control shaft lever 16 160 12
Speedometer drive gear 16 160 12
Transfer oil cooler tube 34 345 25
Transmission fluid temperature sensor 15 150 11
Transfer fluid temperature sensor 15 150 11
Transmission oil pan x Transmission case 7.4 75 65 in.·lbf
Transmission housing 14 mm bolt 34 345 25
17 mm bolt 57 580 42
Union 29 300 22
Park/Neutral position switch 6.9 70 61 in.·lbf
Park/Neutral position switch adjusting bolt 13 130 9
Control shaft lever 16 160 12
