AT-42
A340F AUTOMATIC TRANSMISSION - SERVICE SPECIFICATIONS
AT06Q-0D

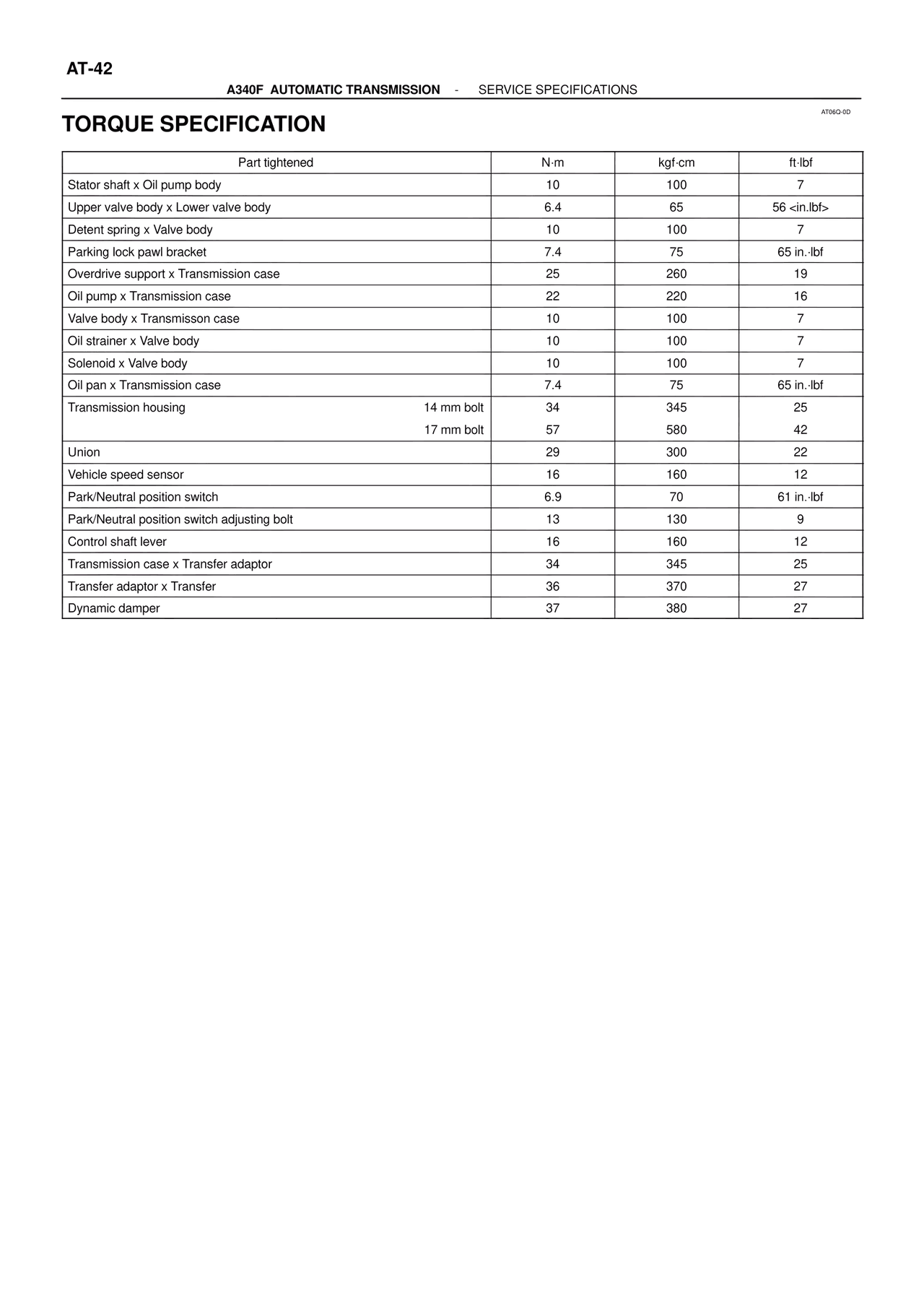

TORQUE SPECIFICATION
Part tightened | N·m | kgf·cm | ft·lbf
Stator shaft x Oil pump body | 10 | 100 | 7
Upper valve body x Lower valve body | 6.4 | 65 | 56 <in.lbf>
Detent spring x Valve body | 10 | 100 | 7
Parking lock pawl bracket | 7.4 | 75 | 65 in.·lbf
Overdrive support x Transmission case | 25 | 260 | 19
Oil pump x Transmission case | 22 | 220 | 16
Valve body x Transmisson case | 10 | 100 | 7
Oil strainer x Valve body | 10 | 100 | 7
Solenoid x Valve body | 10 | 100 | 7
Oil pan x Transmission case | 7.4 | 75 | 65 in.·lbf
Transmission housing | 14 mm bolt | 34 | 345 | 25
| 17 mm bolt | 57 | 580 | 42
Union | 29 | 300 | 22
Vehicle speed sensor | 16 | 160 | 12
Park/Neutral position switch | 6.9 | 70 | 61 in.·lbf
Park/Neutral position switch adjusting bolt | 13 | 130 | 9
Control shaft lever | 16 | 160 | 12
Transmission case x Transfer adaptor | 34 | 345 | 25
Transfer adaptor x Transfer | 36 | 370 | 27
Dynamic damper | 37 | 380 | 27
