AT-10

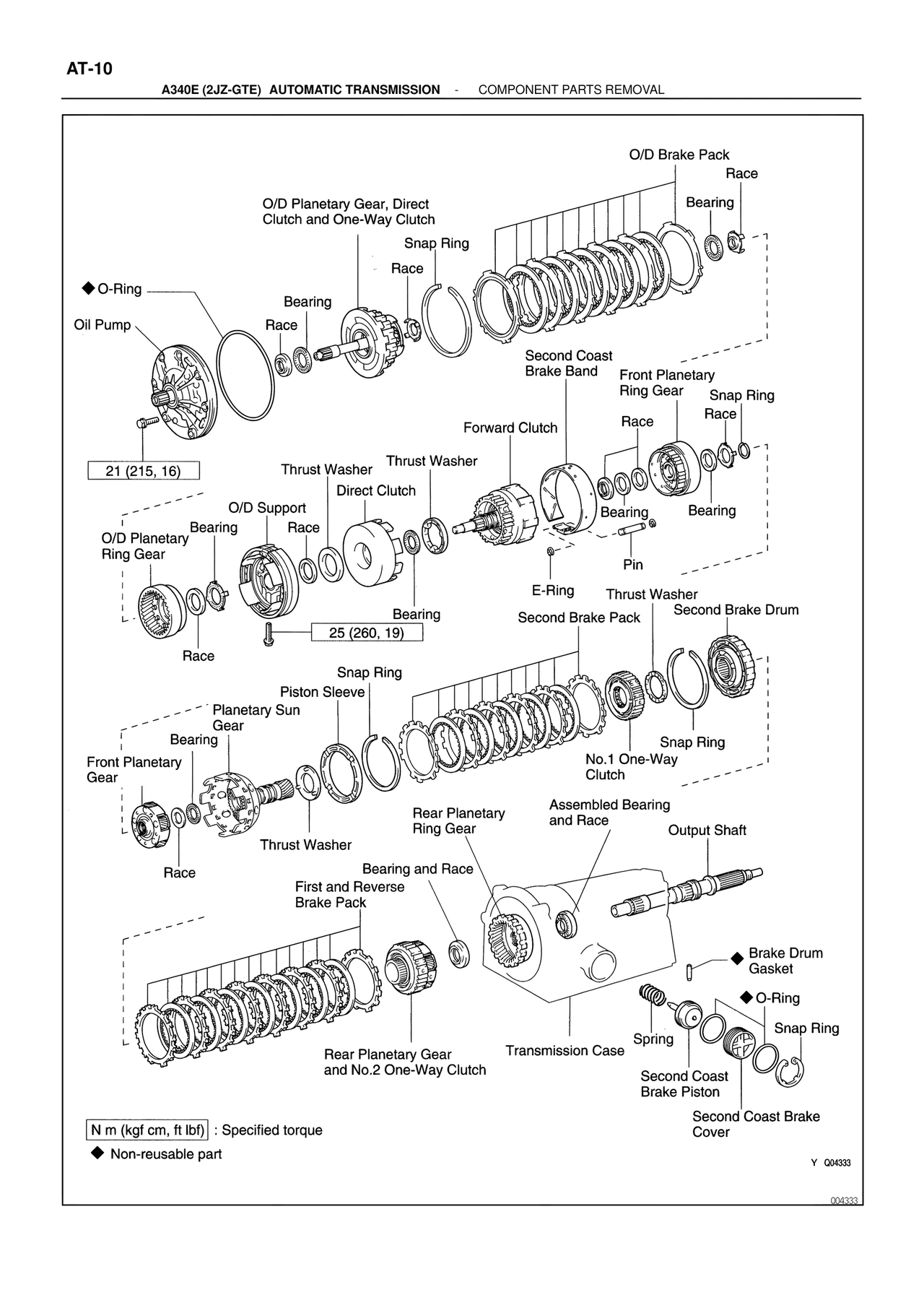

A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
O/D Brake Pack
Race
Bearing
O/D Planetary Gear, Direct
Clutch and One-Way Clutch
Snap Ring
Race
◆ O-Ring
Bearing
Oil Pump
Race
Second Coast
Brake Band
Front Planetary
Ring Gear
Snap Ring
Race
Forward Clutch
Race
21 (215, 16)
Thrust Washer
Thrust Washer
Direct Clutch
Bearing
Bearing
O/D Support
O/D Planetary
Ring Gear
Bearing
Race
Pin
E-Ring
Thrust Washer
Second Brake Pack
Second Brake Drum
Bearing
25 (260, 19)
Race
Snap Ring
Piston Sleeve
Planetary Sun
Gear
Bearing
Front Planetary
Gear
Snap Ring
No.1 One-Way
Clutch
Assembled Bearing
and Race
Output Shaft
Thrust Washer
Rear Planetary
Ring Gear
Race
Bearing and Race
First and Reverse
Brake Pack
◆ Brake Drum
Gasket
◆ O-Ring
Snap Ring
Spring
Rear Planetary Gear
and No.2 One-Way Clutch
Transmission Case
Second Coast
Brake Piston
Second Coast Brake
Cover
N m (kgf cm, ft lbf) : Specified torque
◆ Non-reusable part
Y Q04333
004333
