AT-28

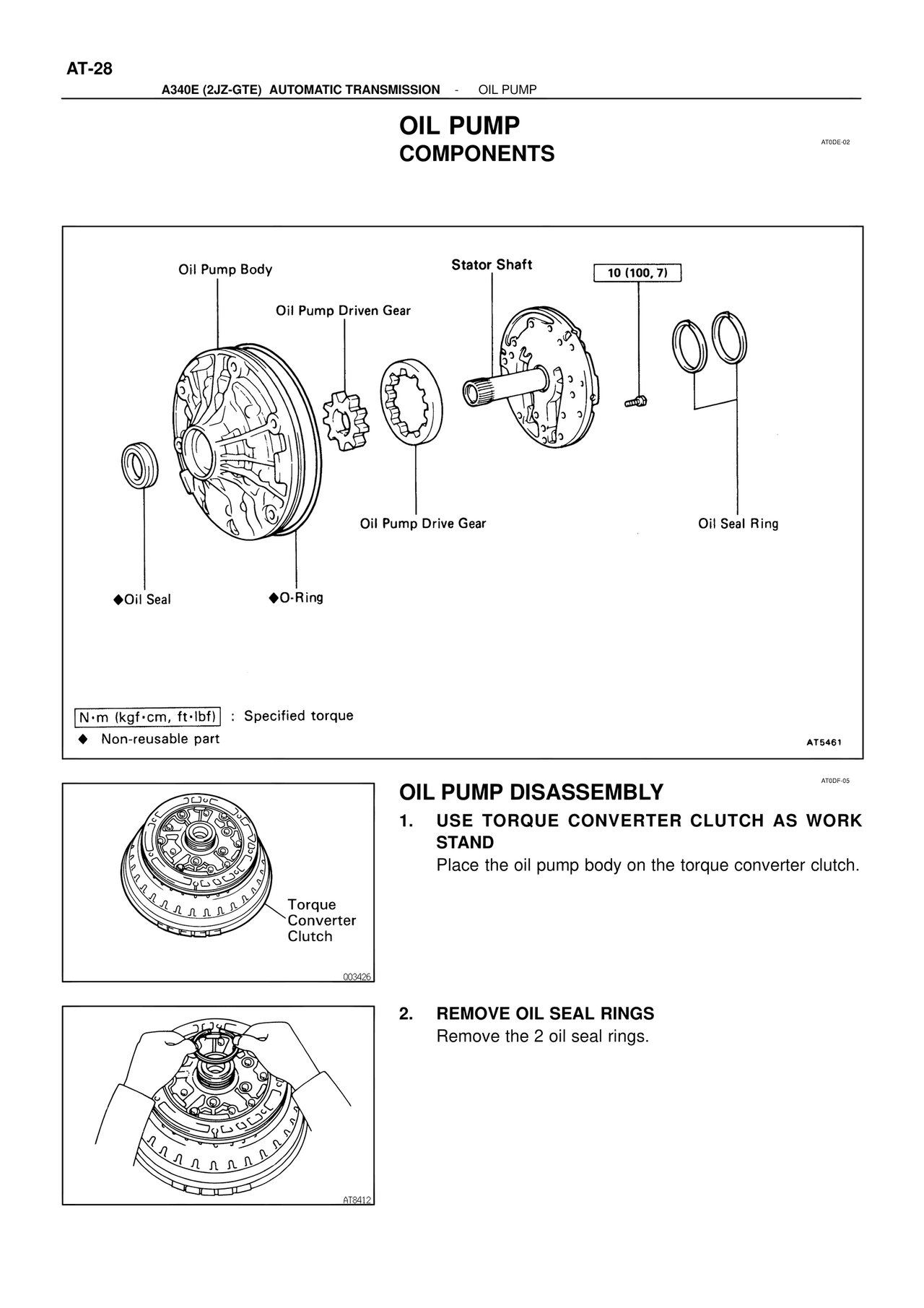

A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - OIL PUMP
OIL PUMP
COMPONENTS
AT0DE-02
Oil Pump Body
Stator Shaft
10 (100, 7)
Oil Pump Driven Gear
Oil Pump Drive Gear
Oil Seal Ring
◆Oil Seal
◆O-Ring
N·m (kgf·cm, ft·lbf) : Specified torque
◆ Non-reusable part
AT5461
AT0DF-05
OIL PUMP DISASSEMBLY
1. USE TORQUE CONVERTER CLUTCH AS WORK STAND
Place the oil pump body on the torque converter clutch.
Torque Converter Clutch
003426
2. REMOVE OIL SEAL RINGS
Remove the 2 oil seal rings.
AT8412
