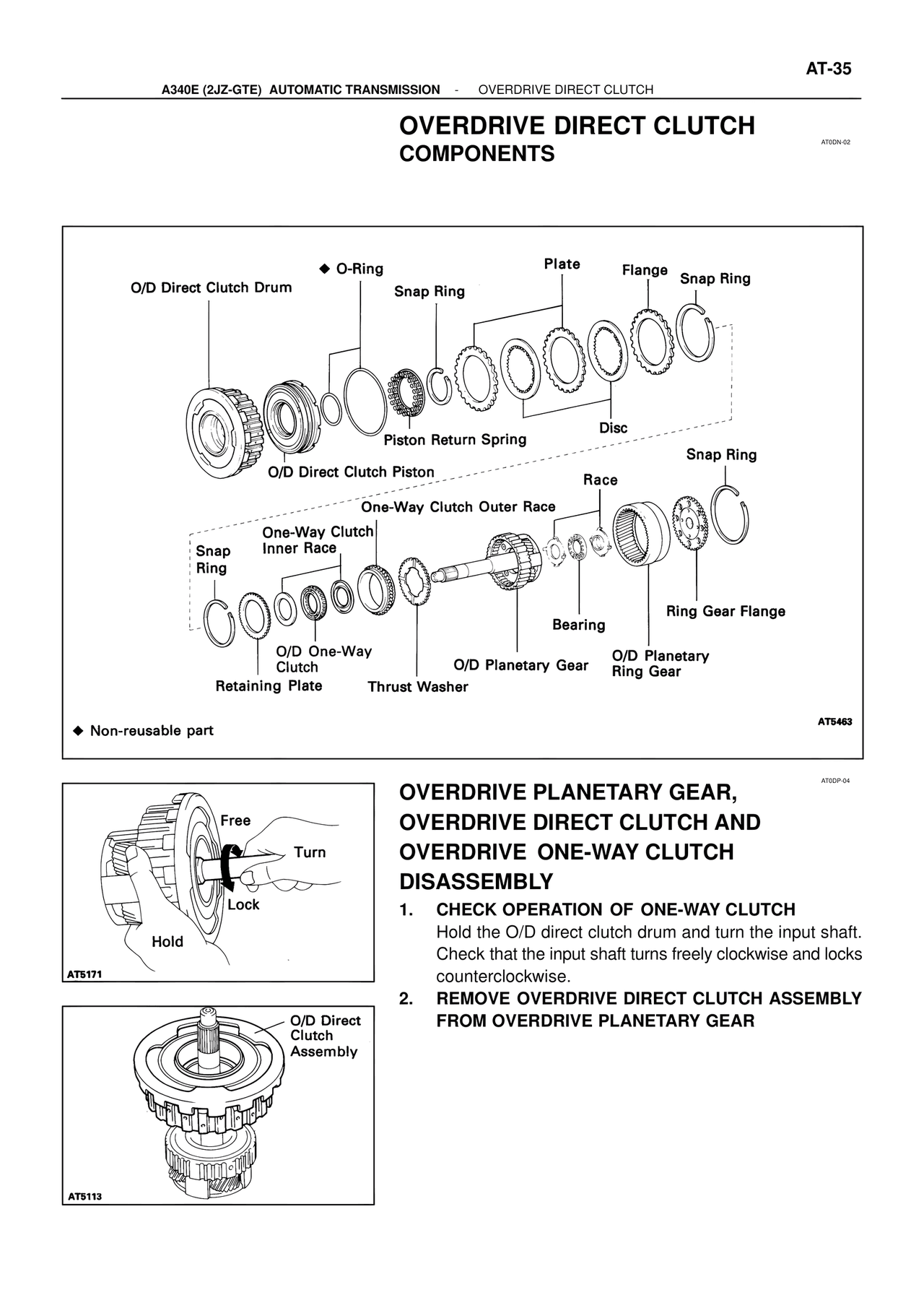

AT-35
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - OVERDRIVE DIRECT CLUTCH
OVERDRIVE DIRECT CLUTCH COMPONENTS
AT0DN-02
◆ O-Ring
Plate
Flange
Snap Ring
O/D Direct Clutch Drum
Snap Ring
Disc
Piston Return Spring
Snap Ring
O/D Direct Clutch Piston
Race
One-Way Clutch Outer Race
Snap Ring
One-Way Clutch Inner Race
O/D One-Way Clutch
Retaining Plate
Thrust Washer
O/D Planetary Gear
Bearing
Ring Gear Flange
O/D Planetary Ring Gear
◆ Non-reusable part
AT5463
AT0DP-04
Free
Turn
Lock
Hold
AT5171
OVERDRIVE PLANETARY GEAR, OVERDRIVE DIRECT CLUTCH AND OVERDRIVE ONE-WAY CLUTCH DISASSEMBLY
1. CHECK OPERATION OF ONE-WAY CLUTCH
Hold the O/D direct clutch drum and turn the input shaft. Check that the input shaft turns freely clockwise and locks counterclockwise.
2. REMOVE OVERDRIVE DIRECT CLUTCH ASSEMBLY FROM OVERDRIVE PLANETARY GEAR
O/D Direct Clutch Assembly
AT5113
