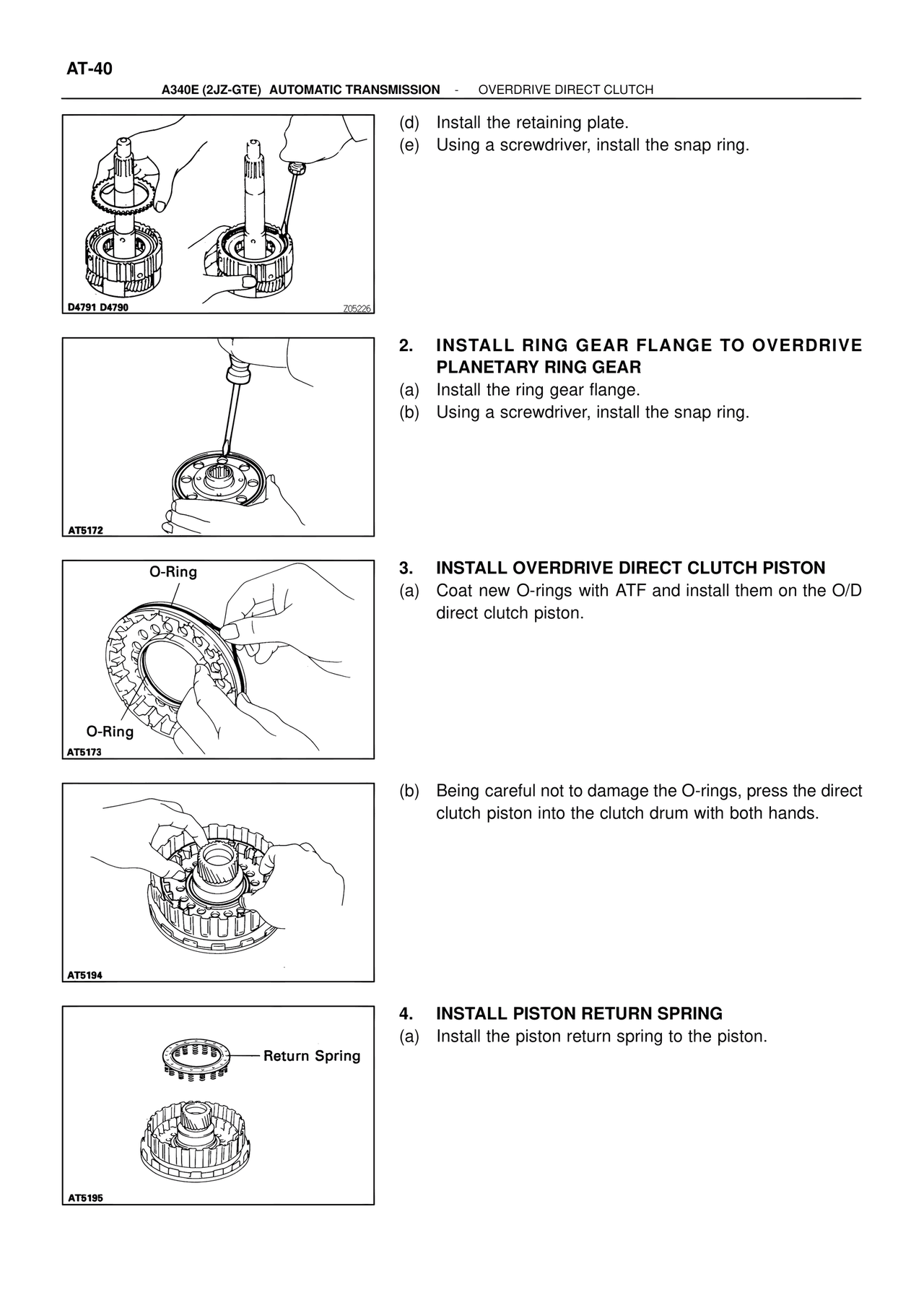

AT-40
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - OVERDRIVE DIRECT CLUTCH
D4791 D4790
(d) Install the retaining plate.
(e) Using a screwdriver, install the snap ring.
2. INSTALL RING GEAR FLANGE TO OVERDRIVE
PLANETARY RING GEAR
(a) Install the ring gear flange.
(b) Using a screwdriver, install the snap ring.
AT5172
O-Ring
O-Ring
AT5173
3. INSTALL OVERDRIVE DIRECT CLUTCH PISTON
(a) Coat new O-rings with ATF and install them on the O/D
direct clutch piston.
AT5194
(b) Being careful not to damage the O-rings, press the direct
clutch piston into the clutch drum with both hands.
Return Spring
AT5195
4. INSTALL PISTON RETURN SPRING
(a) Install the piston return spring to the piston.
