AT-48

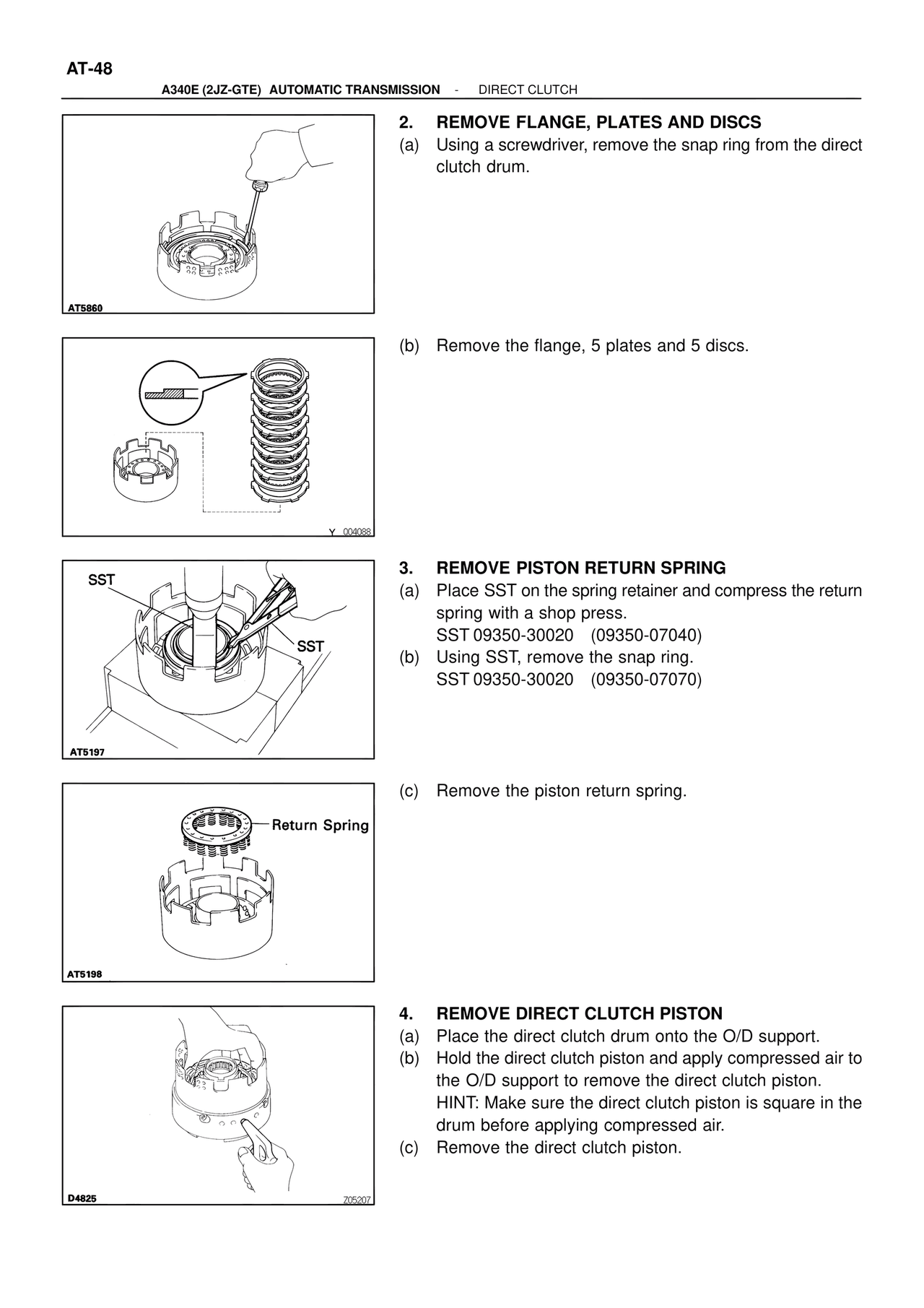

A340E (2JZ-GTE)  AUTOMATIC TRANSMISSION  -  DIRECT CLUTCH

2.  REMOVE FLANGE, PLATES AND DISCS
(a)  Using a screwdriver, remove the snap ring from the direct
clutch drum.

AT5860

(b)  Remove the flange, 5 plates and 5 discs.

Y_004088

3.  REMOVE PISTON RETURN SPRING
(a)  Place SST on the spring retainer and compress the return
spring with a shop press.
SST 09350-30020  (09350-07040)
(b)  Using SST, remove the snap ring.
SST 09350-30020  (09350-07070)

SST
SST

AT5197

(c)  Remove the piston return spring.

Return Spring

AT5198

4.  REMOVE DIRECT CLUTCH PISTON
(a)  Place the direct clutch drum onto the O/D support.
(b)  Hold the direct clutch piston and apply compressed air to
the O/D support to remove the direct clutch piston.
HINT: Make sure the direct clutch piston is square in the
drum before applying compressed air.
(c)  Remove the direct clutch piston.

D4825
705207
