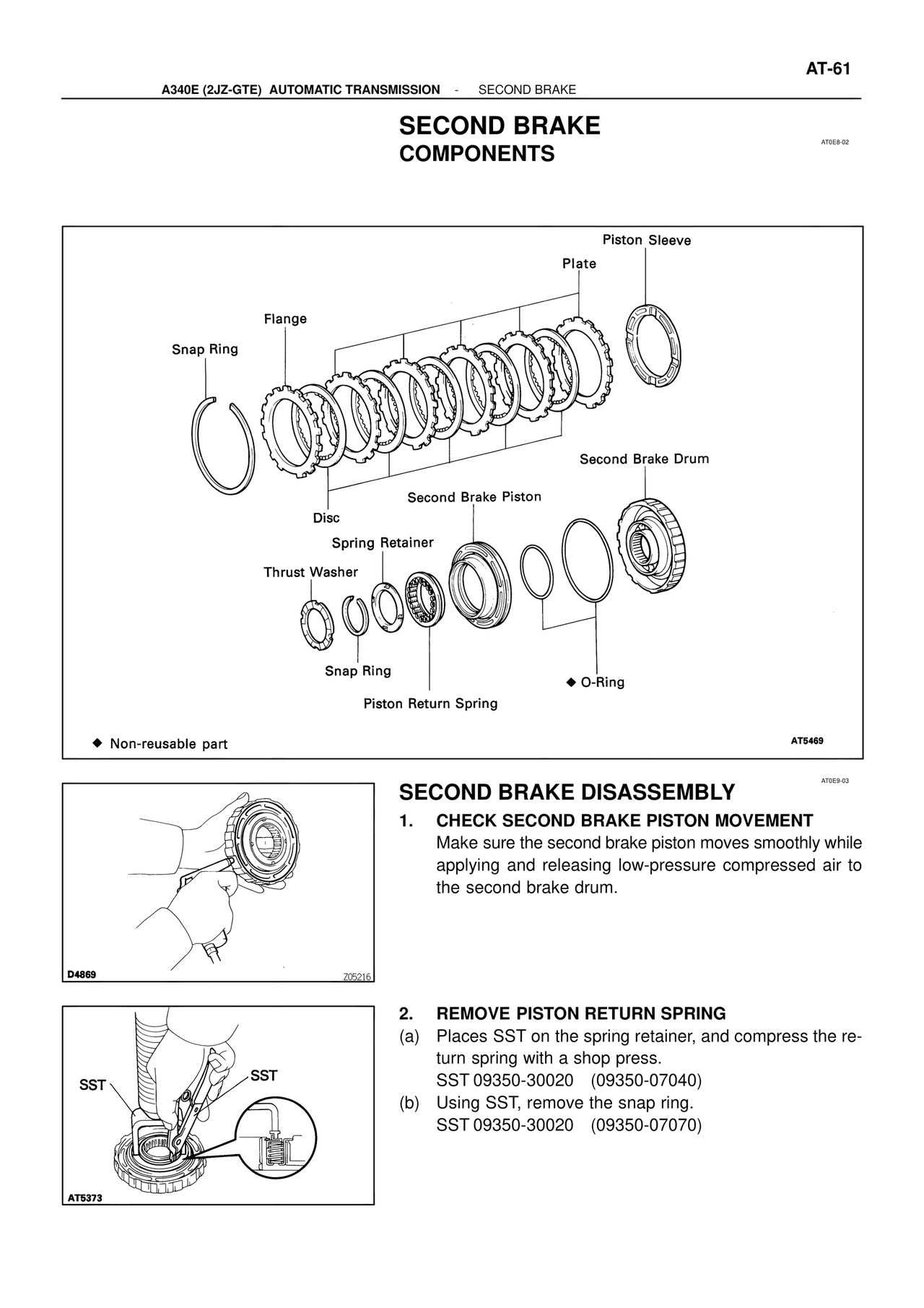

A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - SECOND BRAKE
SECOND BRAKE
COMPONENTS
AT0E8-02
Piston Sleeve
Plate
Flange
Snap Ring
Second Brake Drum
Second Brake Piston
Disc
Spring Retainer
Thrust Washer
Snap Ring
◆ O-Ring
Piston Return Spring
◆ Non-reusable part
AT5469
AT0E9-03
SECOND BRAKE DISASSEMBLY
1. CHECK SECOND BRAKE PISTON MOVEMENT
Make sure the second brake piston moves smoothly while
applying and releasing low-pressure compressed air to
the second brake drum.
D4869 705216
2. REMOVE PISTON RETURN SPRING
(a) Places SST on the spring retainer, and compress the re-
turn spring with a shop press.
SST 09350-30020 (09350-07040)
(b) Using SST, remove the snap ring.
SST 09350-30020 (09350-07070)
SST SST
AT5373
