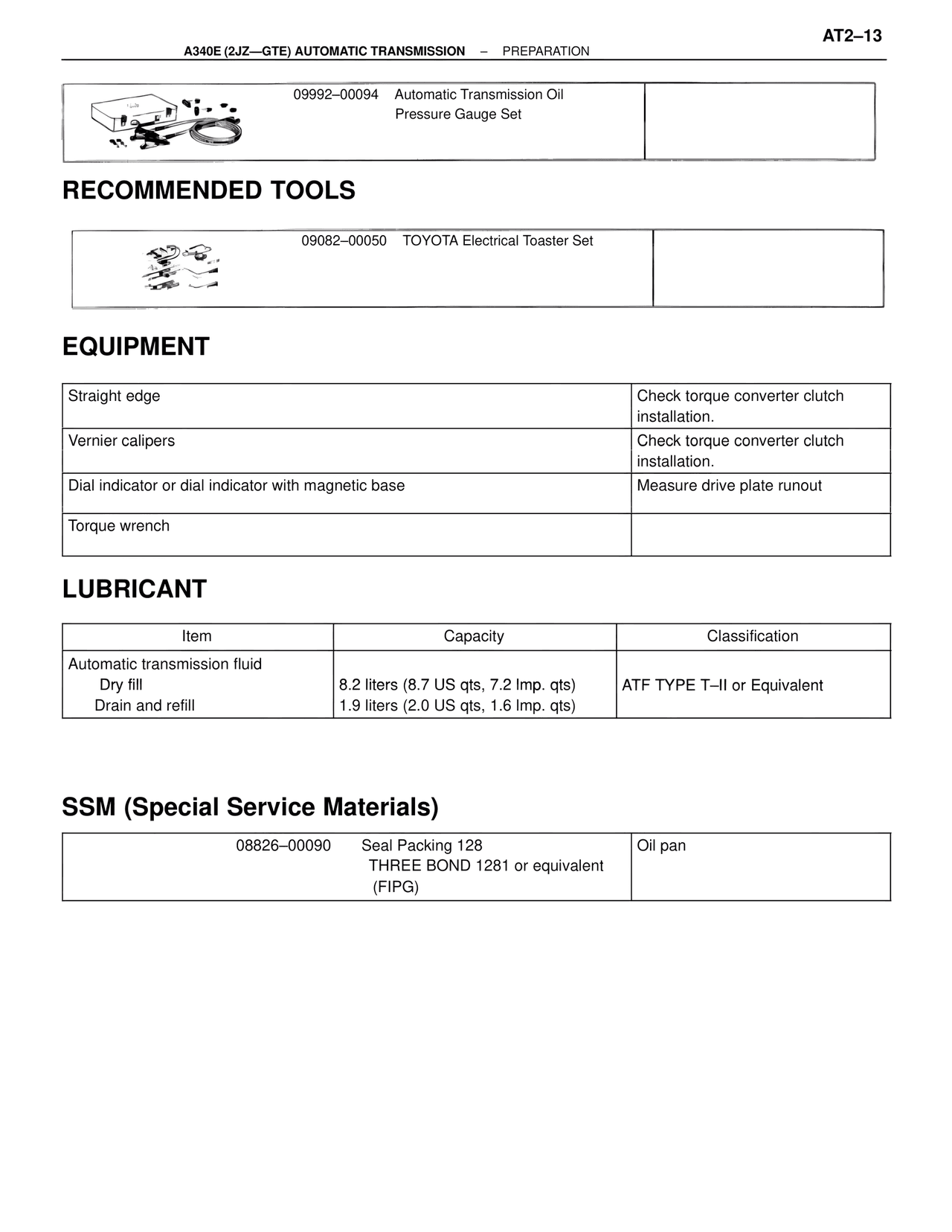

ATTE/A340 Automatic Trans (GTE) — Recommended Tools, page 13

AT2–13

A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – PREPARATION

09992–00094  Automatic Transmission Oil
             Pressure Gauge Set

RECOMMENDED TOOLS

09082–00050  TOYOTA Electrical Toaster Set

EQUIPMENT

Straight edge                                          Check torque converter clutch
                                                       installation.
Vernier calipers                                       Check torque converter clutch
                                                       installation.
Dial indicator or dial indicator with magnetic base    Measure drive plate runout
Torque wrench

LUBRICANT

Item                          Capacity                              Classification
Automatic transmission fluid
  Dry fill                    8.2 liters (8.7 US qts, 7.2 Imp. qts)  ATF TYPE T–II or Equivalent
  Drain and refill            1.9 liters (2.0 US qts, 1.6 Imp. qts)

SSM (Special Service Materials)

08826–00090  Seal Packing 128                Oil pan
             THREE BOND 1281 or equivalent
             (FIPG)
