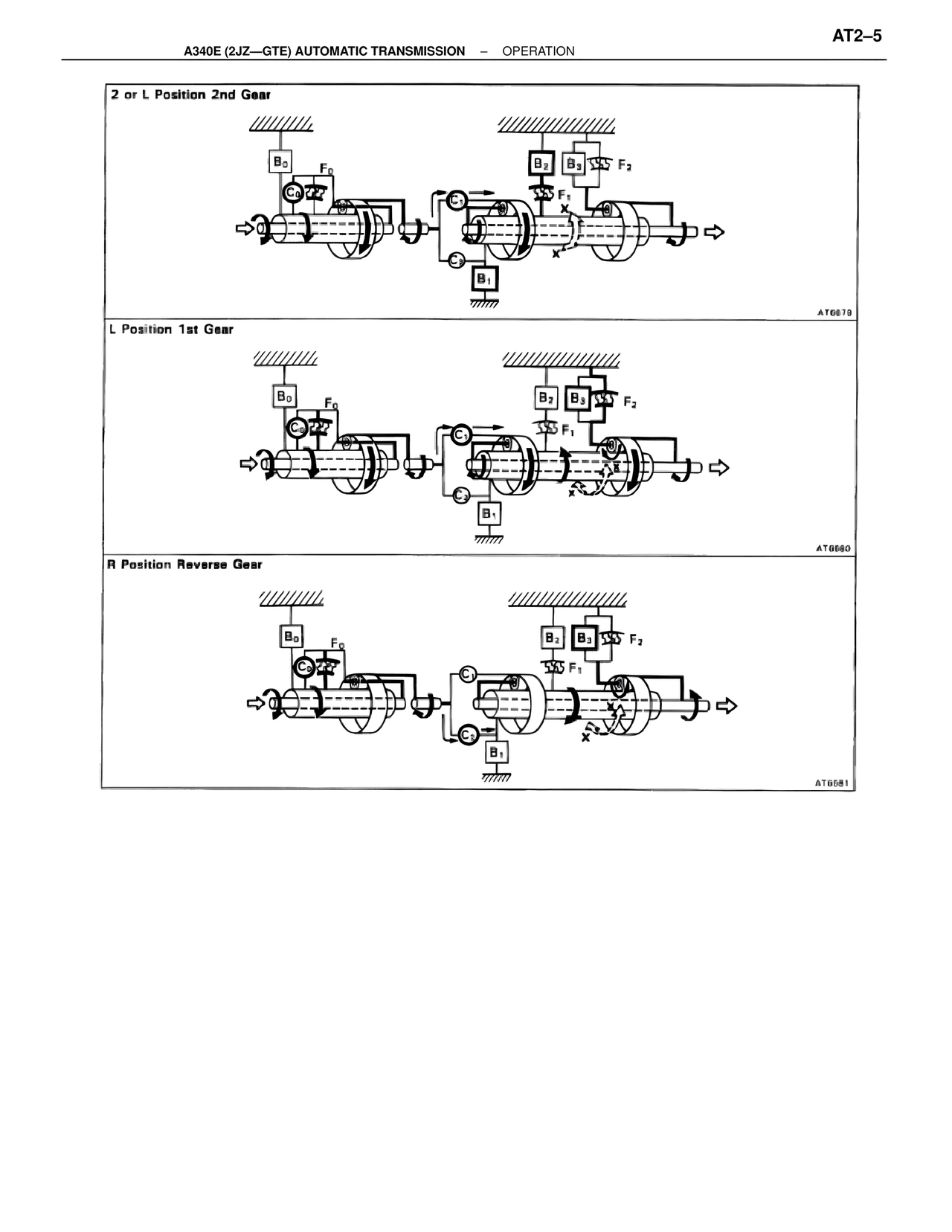

AT2–5 A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – OPERATION 2 or L Position 2nd Gear B0 F0 C0 B2 B3 F2 F1 C3 B1 AT6679 L Position 1st Gear B0 F0 C0 B2 B3 F2 F1 C3 B1 AT6680 R Position Reverse Gear B0 F0 C0 B2 B3 F2 F1 C3 B1 AT6681
