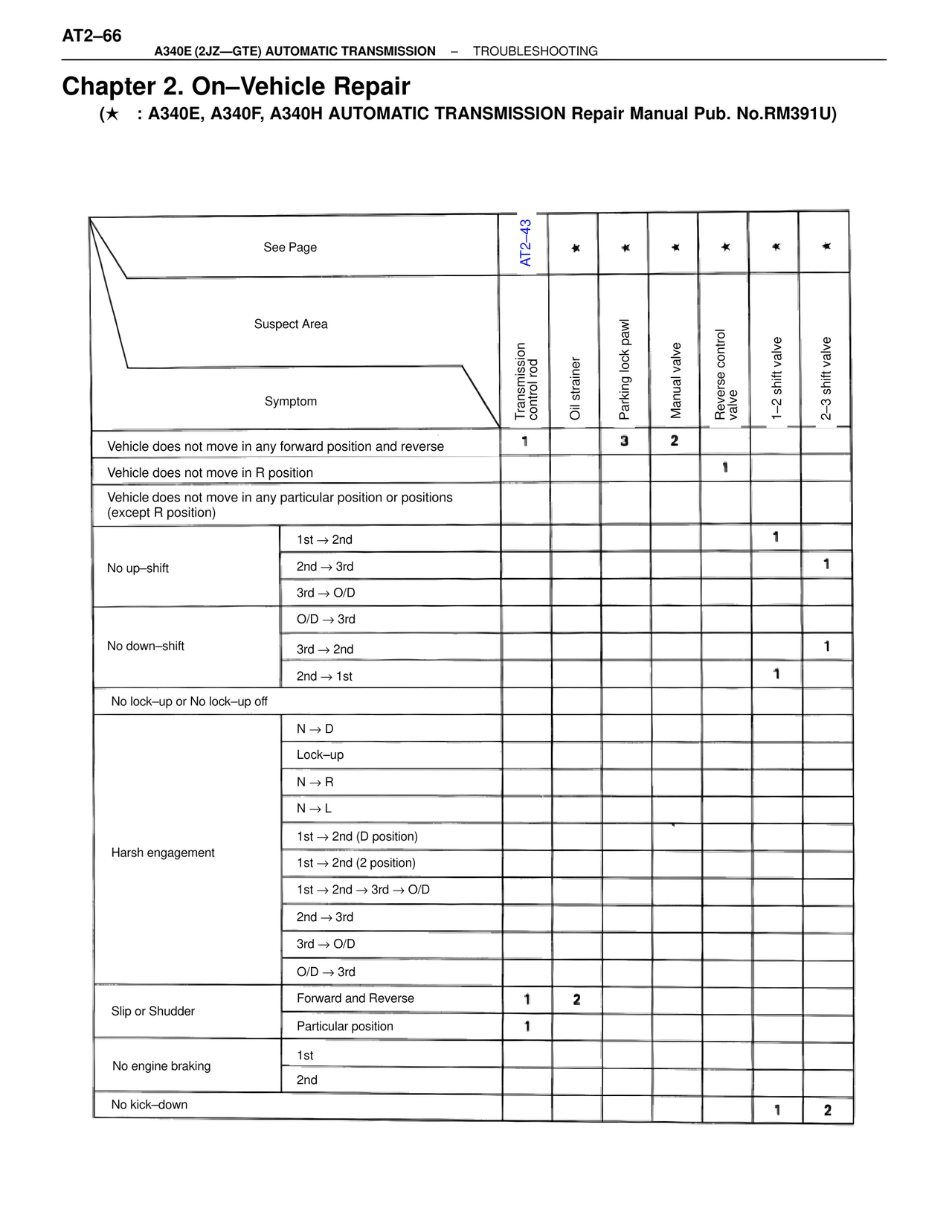

AT2–66
A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – TROUBLESHOOTING
Chapter 2. On–Vehicle Repair
(★ : A340E, A340F, A340H AUTOMATIC TRANSMISSION Repair Manual Pub. No.RM391U)
See Page
AT2–43 ★ ★ ★ ★ ★ ★
Suspect Area
Transmission control rod
Oil strainer
Parking lock pawl
Manual valve
Reverse control valve
1–2 shift valve
2–3 shift valve
Symptom
Vehicle does not move in any forward position and reverse 1 3 2
Vehicle does not move in R position 1
Vehicle does not move in any particular position or positions (except R position)
No up–shift
1st → 2nd 1
2nd → 3rd 1
3rd → O/D
No down–shift
O/D → 3rd
3rd → 2nd 1
2nd → 1st 1
No lock–up or No lock–up off
Harsh engagement
N → D
Lock–up
N → R
N → L
1st → 2nd (D position)
1st → 2nd (2 position)
1st → 2nd → 3rd → O/D
2nd → 3rd
3rd → O/D
O/D → 3rd
Slip or Shudder
Forward and Reverse 1 2
Particular position 1
No engine braking
1st
2nd
No kick–down 1 2
