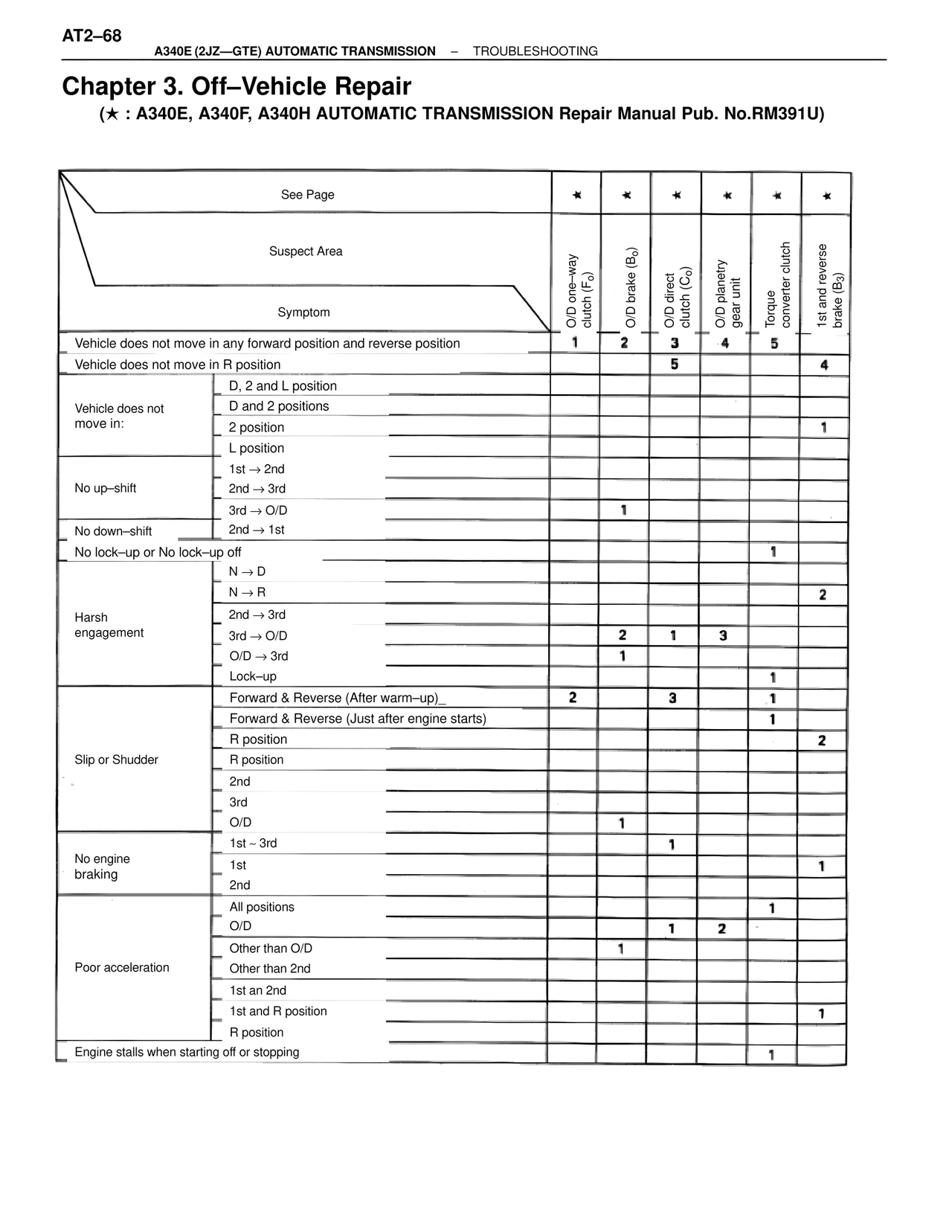

A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – TROUBLESHOOTING
Chapter 3. Off–Vehicle Repair
(★ : A340E, A340F, A340H AUTOMATIC TRANSMISSION Repair Manual Pub. No.RM391U)
See Page
Suspect Area
Symptom
O/D one–way clutch (F₀)
O/D brake (B₀)
O/D direct clutch (C₀)
O/D planetry gear unit
Torque converter clutch
1st and reverse brake (B₃)
Vehicle does not move in any forward position and reverse position 1 2 3 4 5
Vehicle does not move in R position 5 4
Vehicle does not move in:
D, 2 and L position
D and 2 positions
2 position 1
L position
No up–shift
1st → 2nd
2nd → 3rd
3rd → O/D 1
No down–shift
2nd → 1st
No lock–up or No lock–up off 1
Harsh engagement
N → D
N → R 2
2nd → 3rd
3rd → O/D 2 1 3
O/D → 3rd 1
Lock–up 1
Slip or Shudder
Forward & Reverse (After warm–up)_ 2 3 1
Forward & Reverse (Just after engine starts) 1
R position 2
R position
2nd
3rd
O/D 1
No engine braking
1st – 3rd 1
1st 1
2nd
Poor acceleration
All positions 1
O/D 1 2
Other than O/D 1
Other than 2nd
1st an 2nd
1st and R position 1
R position
Engine stalls when starting off or stopping 1
