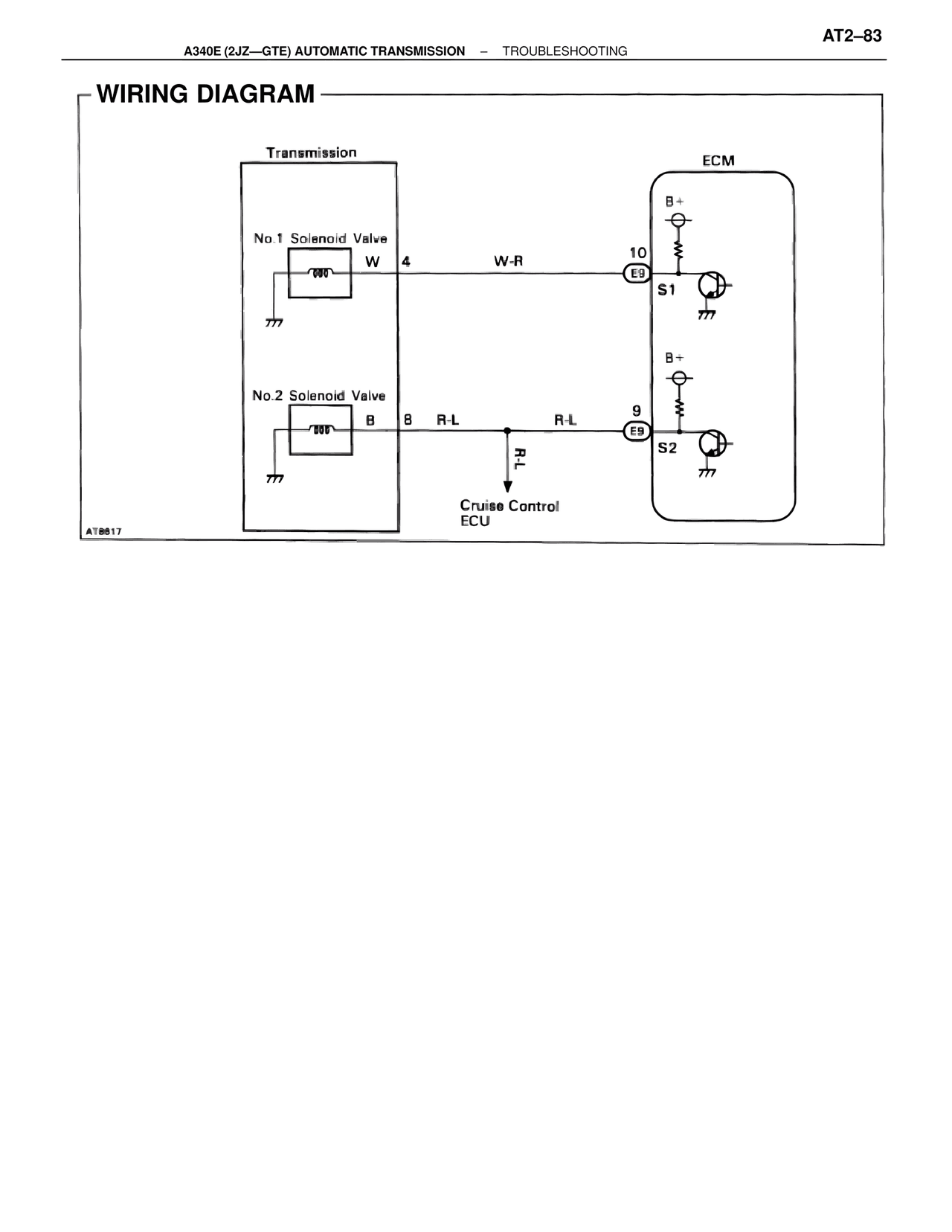

AT2–83 A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – TROUBLESHOOTING WIRING DIAGRAM Transmission No.1 Solenoid Valve W 000 4 W-R 10 E9 S1 B+ No.2 Solenoid Valve B B R-L R-L 9 000 E9 S2 B+ R-L Cruise Control ECU ECM AT8617
