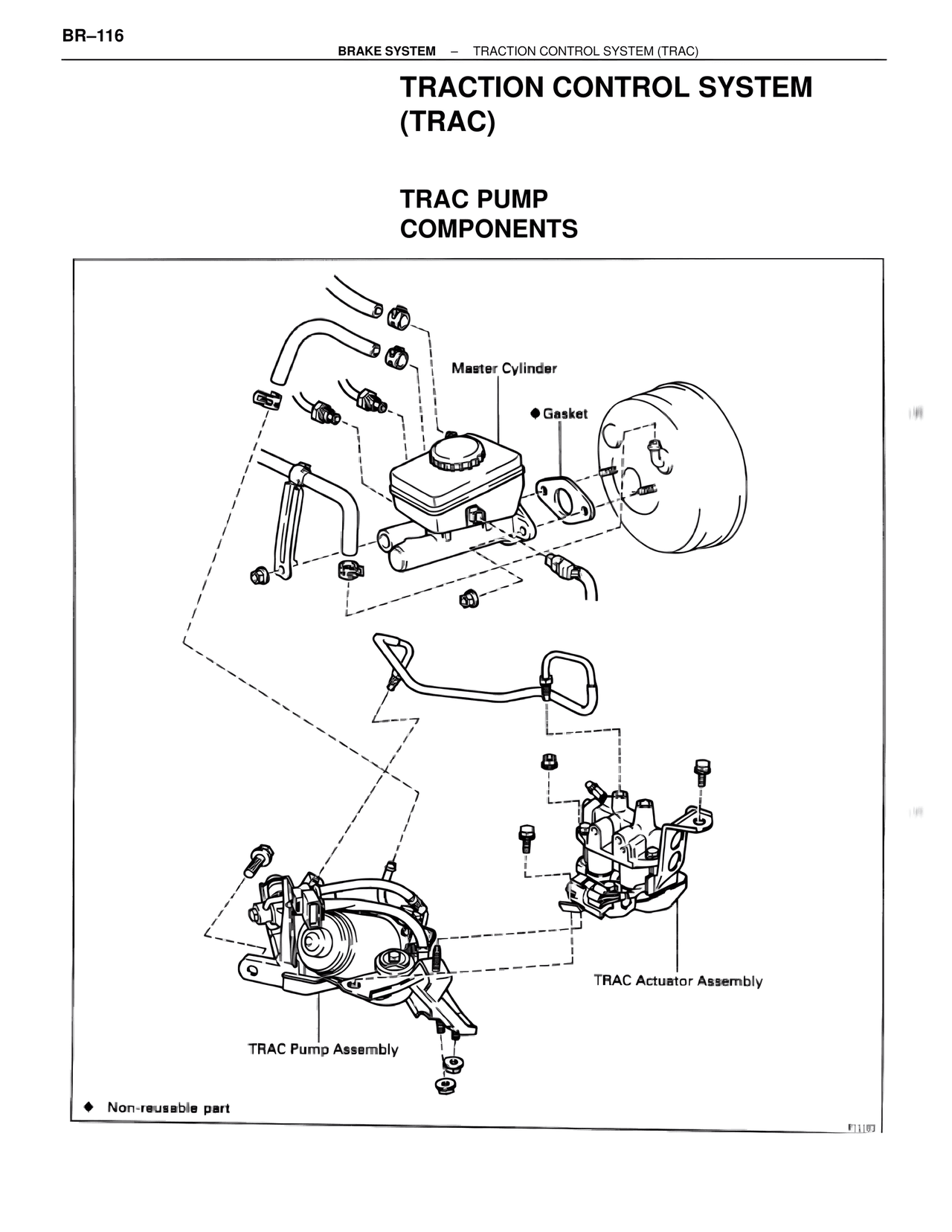

BR–116 BRAKE SYSTEM – TRACTION CONTROL SYSTEM (TRAC) TRACTION CONTROL SYSTEM (TRAC) TRAC PUMP COMPONENTS Master Cylinder ● Gasket TRAC Actuator Assembly TRAC Pump Assembly ● Non-reusable part R11183
