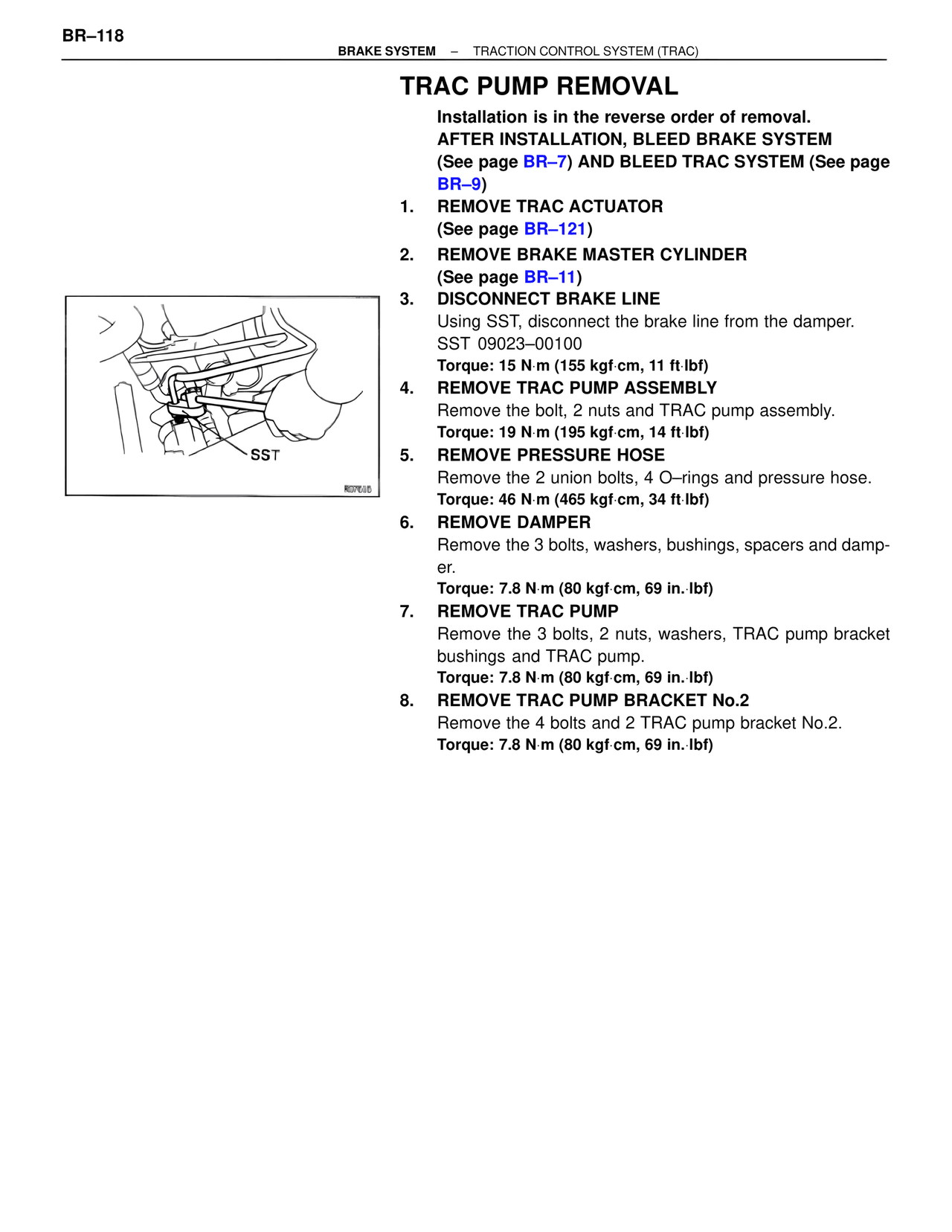

BR–118
BRAKE SYSTEM – TRACTION CONTROL SYSTEM (TRAC)
TRAC PUMP REMOVAL
Installation is in the reverse order of removal.
AFTER INSTALLATION, BLEED BRAKE SYSTEM
(See page BR–7) AND BLEED TRAC SYSTEM (See page
BR–9)
1. REMOVE TRAC ACTUATOR
(See page BR–121)
2. REMOVE BRAKE MASTER CYLINDER
(See page BR–11)
3. DISCONNECT BRAKE LINE
Using SST, disconnect the brake line from the damper.
SST 09023–00100
Torque: 15 N·m (155 kgf·cm, 11 ft·lbf)
4. REMOVE TRAC PUMP ASSEMBLY
Remove the bolt, 2 nuts and TRAC pump assembly.
Torque: 19 N·m (195 kgf·cm, 14 ft·lbf)
5. REMOVE PRESSURE HOSE
Remove the 2 union bolts, 4 O–rings and pressure hose.
Torque: 46 N·m (465 kgf·cm, 34 ft·lbf)
6. REMOVE DAMPER
Remove the 3 bolts, washers, bushings, spacers and damper.
Torque: 7.8 N·m (80 kgf·cm, 69 in.·lbf)
7. REMOVE TRAC PUMP
Remove the 3 bolts, 2 nuts, washers, TRAC pump bracket
bushings and TRAC pump.
Torque: 7.8 N·m (80 kgf·cm, 69 in.·lbf)
8. REMOVE TRAC PUMP BRACKET No.2
Remove the 4 bolts and 2 TRAC pump bracket No.2.
Torque: 7.8 N·m (80 kgf·cm, 69 in.·lbf)
SST
R07005
