BR–125
BRAKE SYSTEM – TRACTION CONTROL SYSTEM (TRAC)

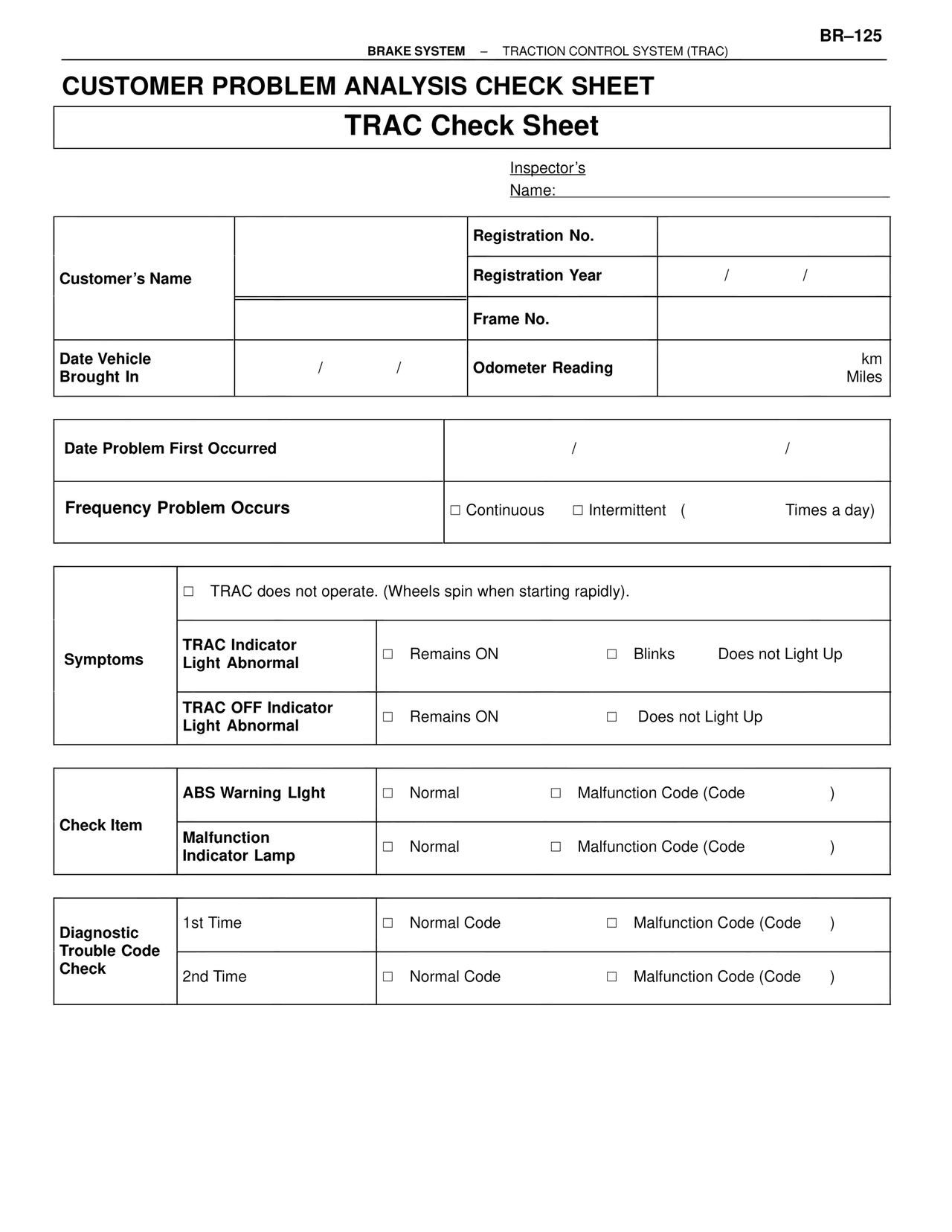

CUSTOMER PROBLEM ANALYSIS CHECK SHEET
TRAC Check Sheet
Inspector's
Name:
Customer's Name
Registration No.
Registration Year / /
Frame No.
Date Vehicle
Brought In / /
Odometer Reading km
Miles
Date Problem First Occurred / /
Frequency Problem Occurs □ Continuous □ Intermittent ( Times a day)
Symptoms
□ TRAC does not operate. (Wheels spin when starting rapidly).
TRAC Indicator
Light Abnormal □ Remains ON □ Blinks Does not Light Up
TRAC OFF Indicator
Light Abnormal □ Remains ON □ Does not Light Up
Check Item
ABS Warning Light □ Normal □ Malfunction Code (Code )
Malfunction
Indicator Lamp □ Normal □ Malfunction Code (Code )
Diagnostic
Trouble Code
Check
1st Time □ Normal Code □ Malfunction Code (Code )
2nd Time □ Normal Code □ Malfunction Code (Code )
