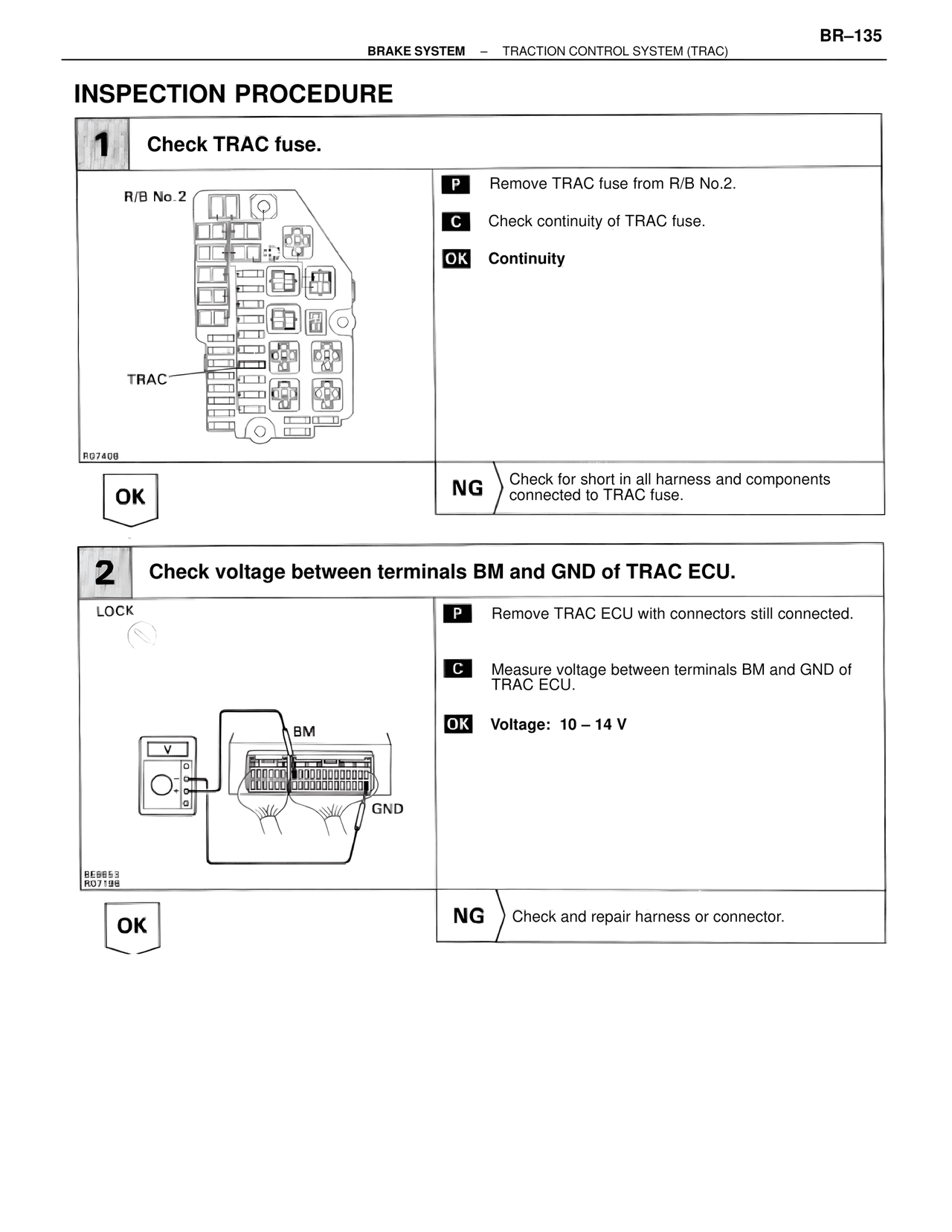

BR–135
BRAKE SYSTEM – TRACTION CONTROL SYSTEM (TRAC)
INSPECTION PROCEDURE
1 Check TRAC fuse.
R/B No.2
TRAC
R07408
P Remove TRAC fuse from R/B No.2.
C Check continuity of TRAC fuse.
OK Continuity
OK
NG Check for short in all harness and components connected to TRAC fuse.
2 Check voltage between terminals BM and GND of TRAC ECU.
LOCK
BM
GND
BE6653
R07198
P Remove TRAC ECU with connectors still connected.
C Measure voltage between terminals BM and GND of TRAC ECU.
OK Voltage: 10 – 14 V
OK
NG Check and repair harness or connector.
