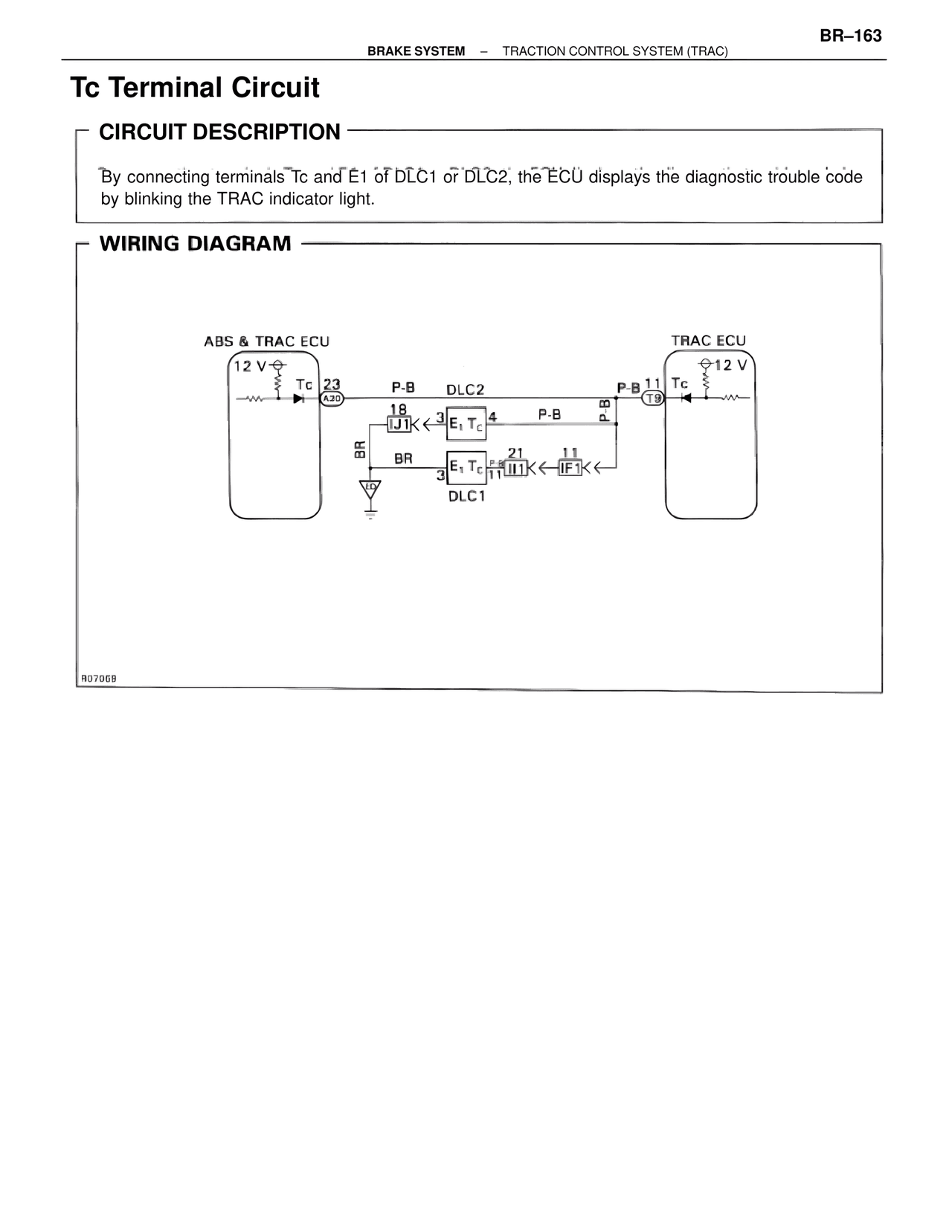

BR–163
BRAKE SYSTEM – TRACTION CONTROL SYSTEM (TRAC)
Tc Terminal Circuit
CIRCUIT DESCRIPTION
By connecting terminals Tc and E1 of DLC1 or DLC2, the ECU displays the diagnostic trouble code
by blinking the TRAC indicator light.
WIRING DIAGRAM
ABS & TRAC ECU TRAC ECU
12 V 12 V
Tc 23 P-B DLC2 P-B 11 Tc
A20 T9
18
IJ1 3 E1 Tc 4 P-B P-B
BR BR
3 E1 Tc 21 11
II1 11 IF1
DLC1
R07068
