BR–17

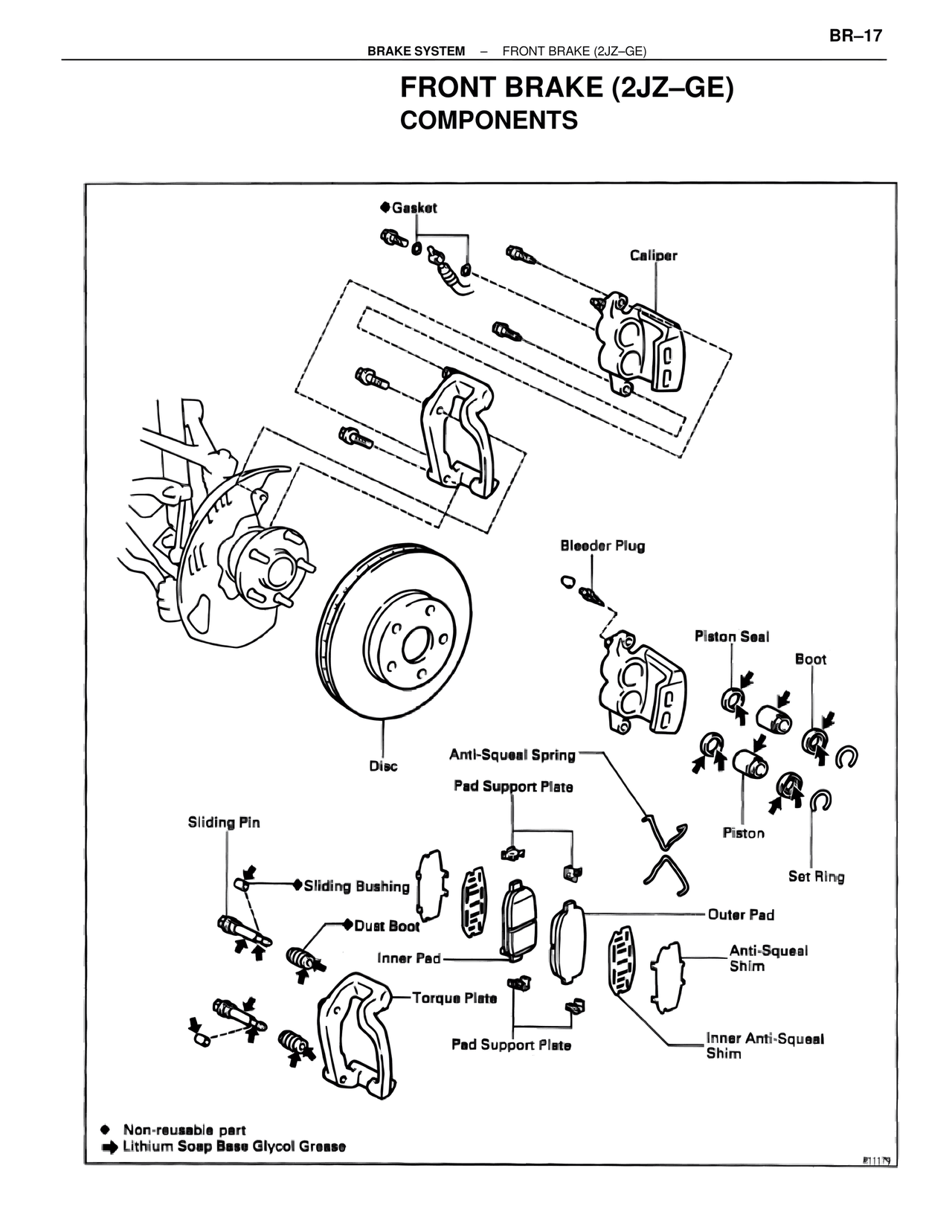

BRAKE SYSTEM – FRONT BRAKE (2JZ–GE)

FRONT BRAKE (2JZ–GE)
COMPONENTS

♦Gasket

Caliper

Bleeder Plug

Piston Seal

Boot

Disc

Anti-Squeal Spring
Pad Support Plate

Sliding Pin

♦Sliding Bushing

♦Dust Boot

Inner Pad

Torque Plate

Pad Support Plate

Piston

Set Ring

Outer Pad

Anti-Squeal
Shim

Inner Anti-Squeal
Shim

♦ Non-reusable part
➔ Lithium Soap Base Glycol Grease

R11179
