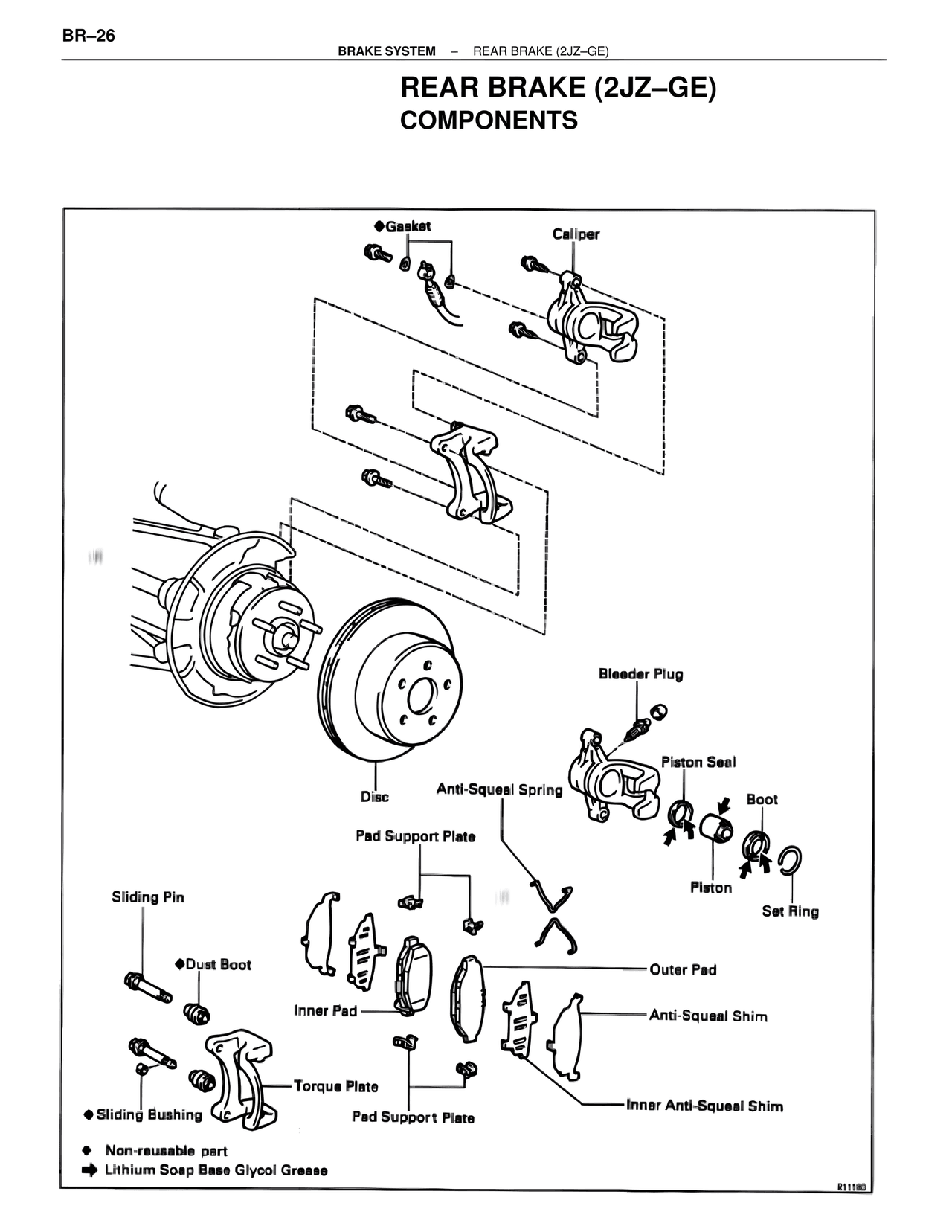

REAR BRAKE (2JZ–GE) COMPONENTS — MK4 Supra Brakes, ABS & TRAC Systems, page 26
100%
BR–26 BRAKE SYSTEM – REAR BRAKE (2JZ–GE) REAR BRAKE (2JZ–GE) COMPONENTS ♦Gasket Caliper Bleeder Plug Piston Seal Boot Piston Set Ring Disc Anti-Squeal Spring Pad Support Plate Sliding Pin ♦Dust Boot Inner Pad Outer Pad Anti-Squeal Shim Inner Anti-Squeal Shim Torque Plate ♦ Sliding Bushing Pad Support Plate ♦ Non-reusable part ➡ Lithium Soap Base Glycol Grease R11180
