BR–29
BRAKE SYSTEM – REAR BRAKE (2JZ–GE)

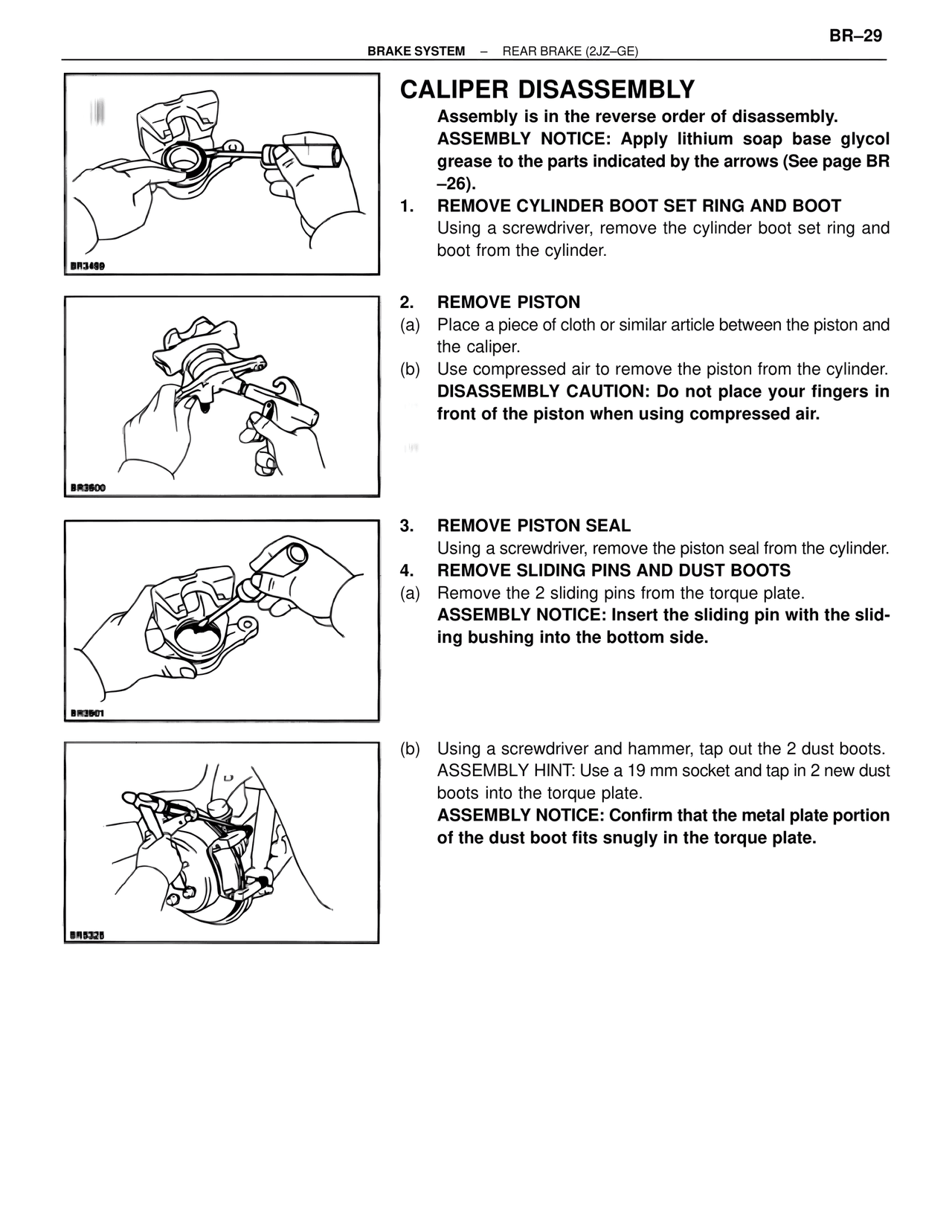

CALIPER DISASSEMBLY
Assembly is in the reverse order of disassembly.
ASSEMBLY NOTICE: Apply lithium soap base glycol grease to the parts indicated by the arrows (See page BR –26).
1. REMOVE CYLINDER BOOT SET RING AND BOOT
Using a screwdriver, remove the cylinder boot set ring and boot from the cylinder.
BR3489
2. REMOVE PISTON
(a) Place a piece of cloth or similar article between the piston and the caliper.
(b) Use compressed air to remove the piston from the cylinder.
DISASSEMBLY CAUTION: Do not place your fingers in front of the piston when using compressed air.
BR3500
3. REMOVE PISTON SEAL
Using a screwdriver, remove the piston seal from the cylinder.
4. REMOVE SLIDING PINS AND DUST BOOTS
(a) Remove the 2 sliding pins from the torque plate.
ASSEMBLY NOTICE: Insert the sliding pin with the sliding bushing into the bottom side.
BR3501
(b) Using a screwdriver and hammer, tap out the 2 dust boots.
ASSEMBLY HINT: Use a 19 mm socket and tap in 2 new dust boots into the torque plate.
ASSEMBLY NOTICE: Confirm that the metal plate portion of the dust boot fits snugly in the torque plate.
BR5328
