BR–31

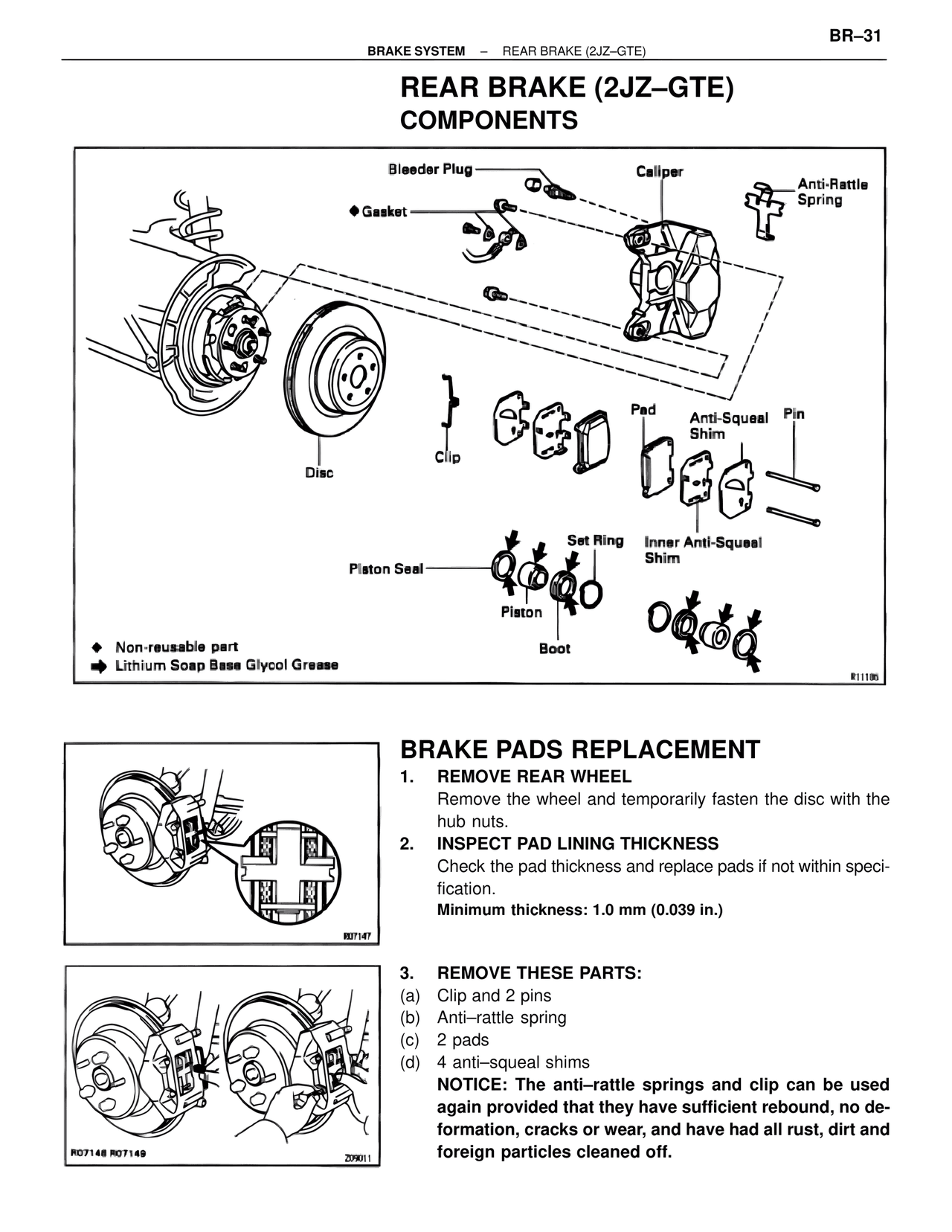

BRAKE SYSTEM – REAR BRAKE (2JZ–GTE)
REAR BRAKE (2JZ–GTE)
COMPONENTS
Bleeder Plug
Caliper
Anti-Rattle
Spring
◆ Gasket
Disc
Clip
Pad
Anti-Squeal
Shim
Pin
Set Ring
Inner Anti-Squeal
Shim
Piston Seal
Piston
Boot
◆ Non-reusable part
➡ Lithium Soap Base Glycol Grease
R11186
BRAKE PADS REPLACEMENT
1. REMOVE REAR WHEEL
Remove the wheel and temporarily fasten the disc with the
hub nuts.
2. INSPECT PAD LINING THICKNESS
Check the pad thickness and replace pads if not within speci-
fication.
Minimum thickness: 1.0 mm (0.039 in.)
R07147
3. REMOVE THESE PARTS:
(a) Clip and 2 pins
(b) Anti–rattle spring
(c) 2 pads
(d) 4 anti–squeal shims
NOTICE: The anti–rattle springs and clip can be used
again provided that they have sufficient rebound, no de-
formation, cracks or wear, and have had all rust, dirt and
foreign particles cleaned off.
R07148 R07149
Z09011
