BR–33

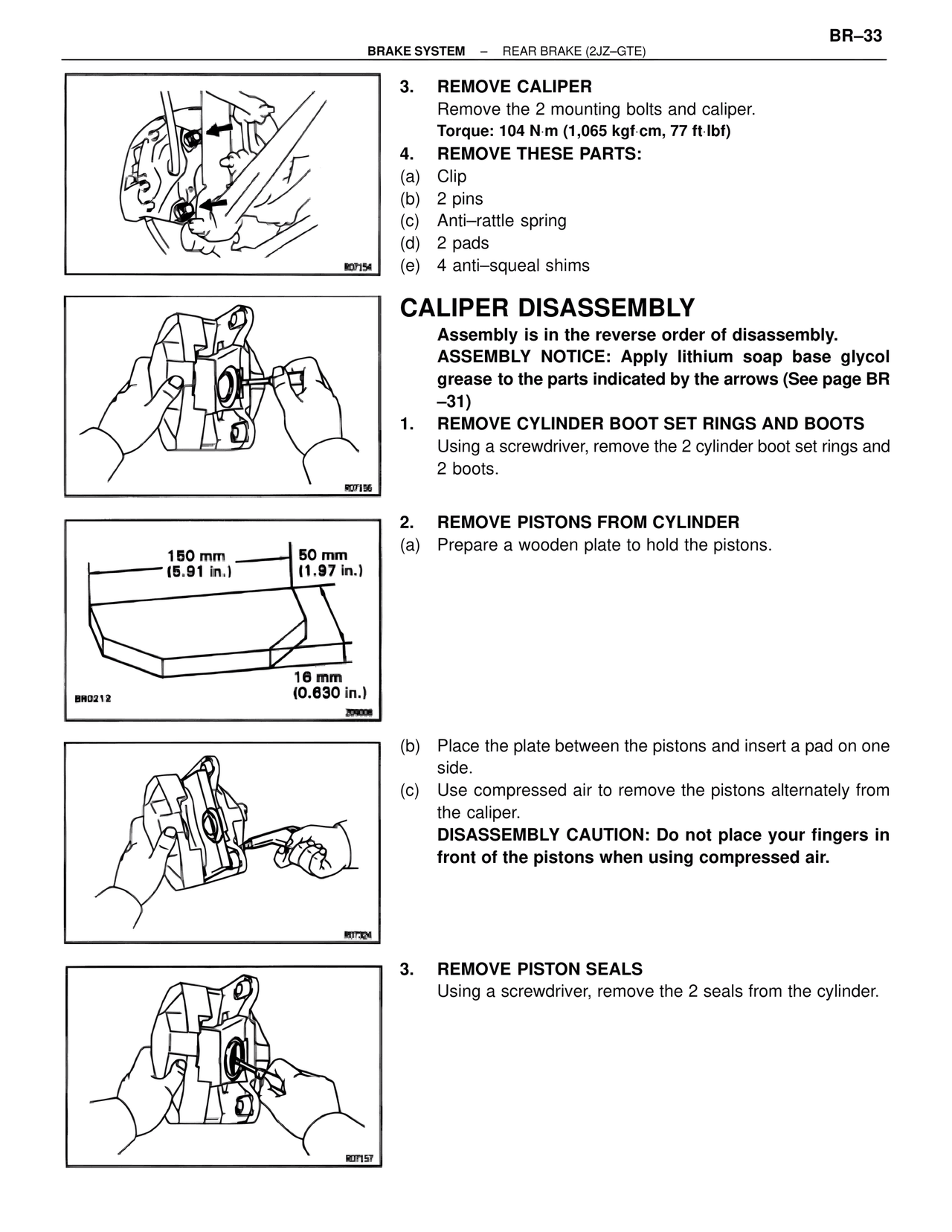

BRAKE SYSTEM – REAR BRAKE (2JZ–GTE)
3. REMOVE CALIPER
Remove the 2 mounting bolts and caliper.
Torque: 104 N·m (1,065 kgf·cm, 77 ft·lbf)
4. REMOVE THESE PARTS:
(a) Clip
(b) 2 pins
(c) Anti–rattle spring
(d) 2 pads
(e) 4 anti–squeal shims
CALIPER DISASSEMBLY
Assembly is in the reverse order of disassembly.
ASSEMBLY NOTICE: Apply lithium soap base glycol grease to the parts indicated by the arrows (See page BR–31)
1. REMOVE CYLINDER BOOT SET RINGS AND BOOTS
Using a screwdriver, remove the 2 cylinder boot set rings and 2 boots.
2. REMOVE PISTONS FROM CYLINDER
(a) Prepare a wooden plate to hold the pistons.
150 mm
(5.91 in.)
50 mm
(1.97 in.)
16 mm
(0.630 in.)
BR0212
209008
(b) Place the plate between the pistons and insert a pad on one side.
(c) Use compressed air to remove the pistons alternately from the caliper.
DISASSEMBLY CAUTION: Do not place your fingers in front of the pistons when using compressed air.
3. REMOVE PISTON SEALS
Using a screwdriver, remove the 2 seals from the cylinder.
R07154
R07156
R07324
R07157
