BRAKE SYSTEM – REAR BRAKE (Parking Brake)

REAR BRAKE (Parking Brake)

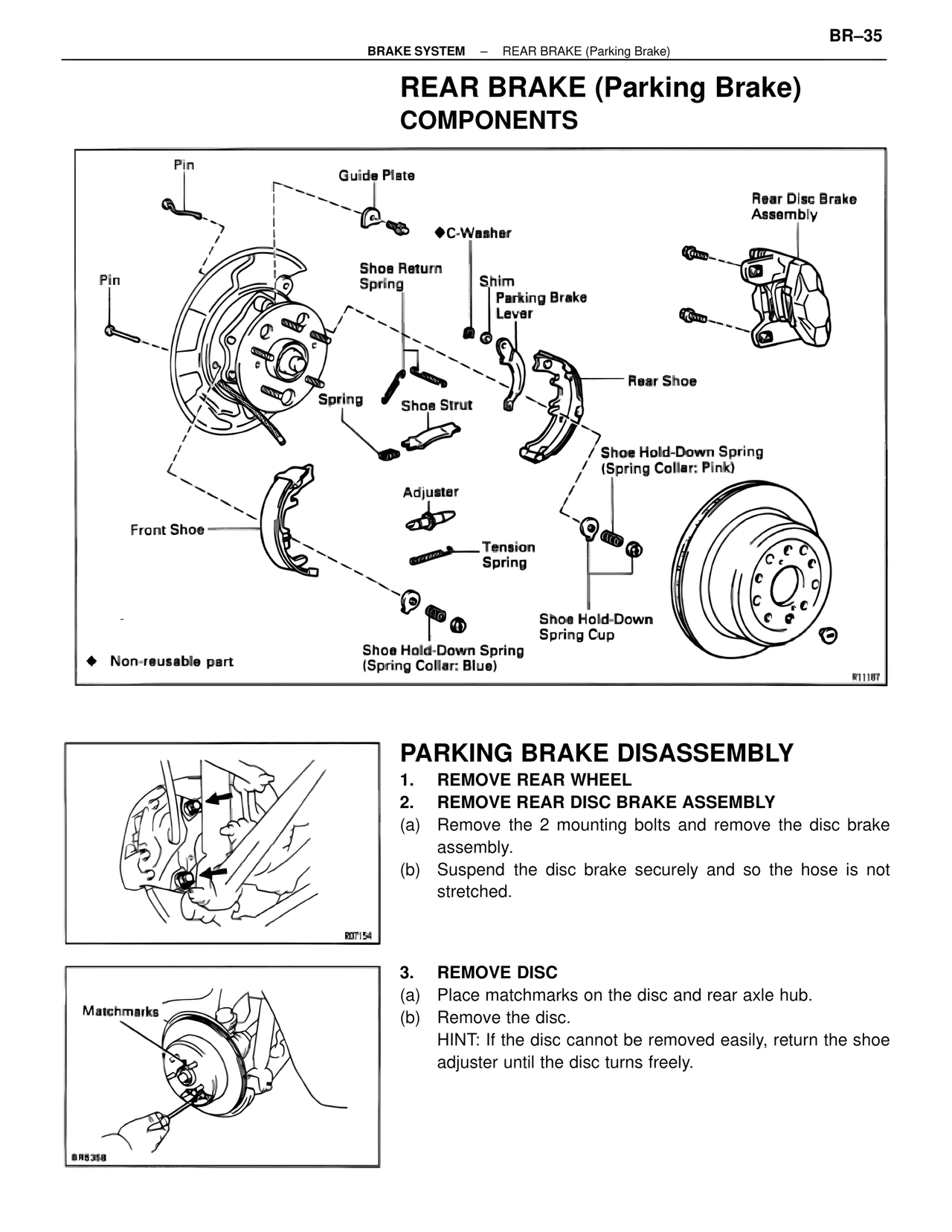

COMPONENTS

Pin
Guide Plate
♦C-Washer
Shoe Return Spring
Shim
Parking Brake Lever
Rear Disc Brake Assembly
Pin
Rear Shoe
Spring
Shoe Strut
Shoe Hold-Down Spring (Spring Collar: Pink)
Adjuster
Front Shoe
Tension Spring
Shoe Hold-Down Spring Cup
Shoe Hold-Down Spring (Spring Collar: Blue)

♦ Non-reusable part

R11187

PARKING BRAKE DISASSEMBLY

1. REMOVE REAR WHEEL
2. REMOVE REAR DISC BRAKE ASSEMBLY
(a) Remove the 2 mounting bolts and remove the disc brake assembly.
(b) Suspend the disc brake securely and so the hose is not stretched.

R07154

3. REMOVE DISC
(a) Place matchmarks on the disc and rear axle hub.
(b) Remove the disc.
HINT: If the disc cannot be removed easily, return the shoe adjuster until the disc turns freely.

Matchmarks

BR5358
