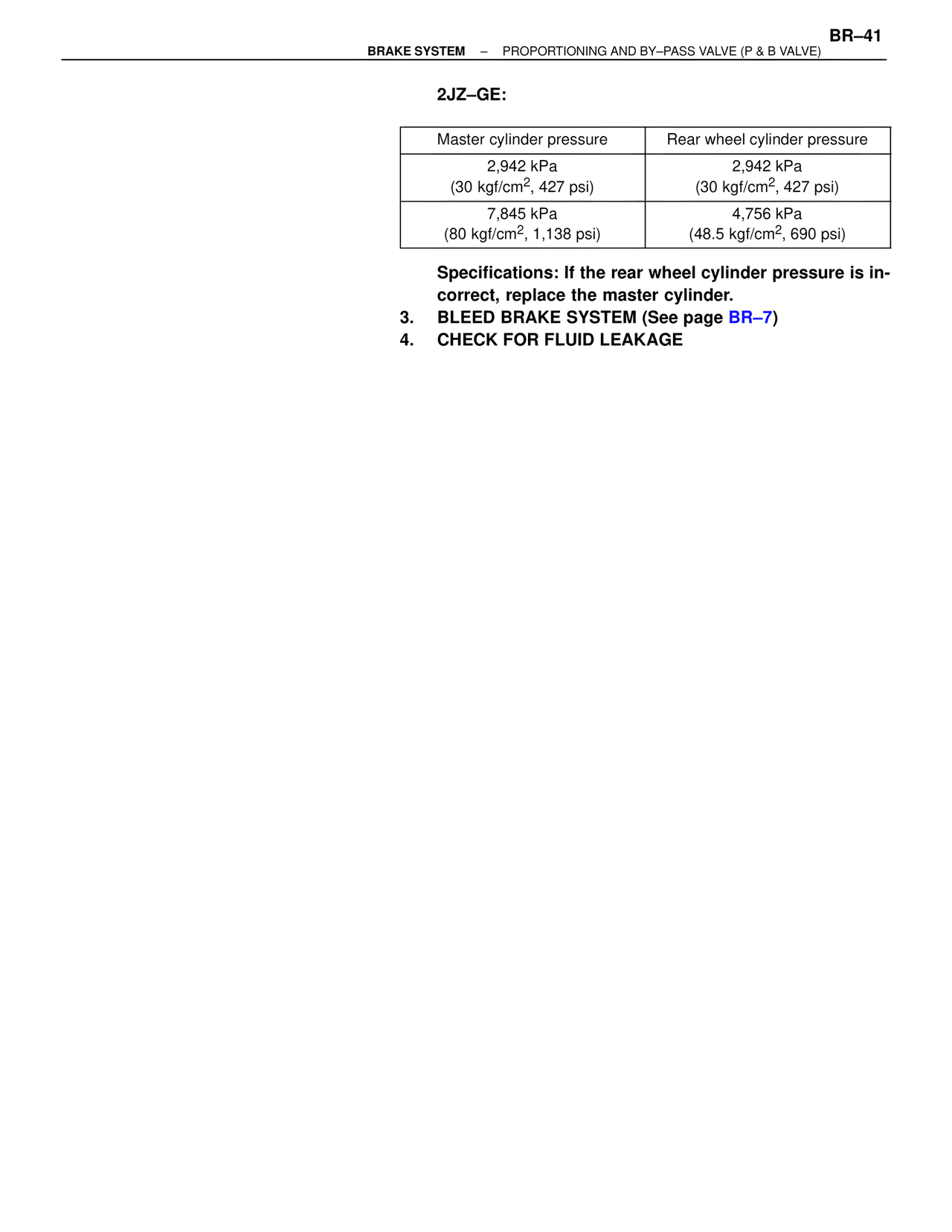

BR–41 BRAKE SYSTEM – PROPORTIONING AND BY–PASS VALVE (P & B VALVE) 2JZ–GE: Master cylinder pressure | Rear wheel cylinder pressure 2,942 kPa | 2,942 kPa (30 kgf/cm², 427 psi) | (30 kgf/cm², 427 psi) 7,845 kPa | 4,756 kPa (80 kgf/cm², 1,138 psi) | (48.5 kgf/cm², 690 psi) Specifications: If the rear wheel cylinder pressure is in- correct, replace the master cylinder. 3. BLEED BRAKE SYSTEM (See page BR–7) 4. CHECK FOR FLUID LEAKAGE
