BRAKE SYSTEM – ANTI-LOCK BRAKE SYSTEM (ABS)

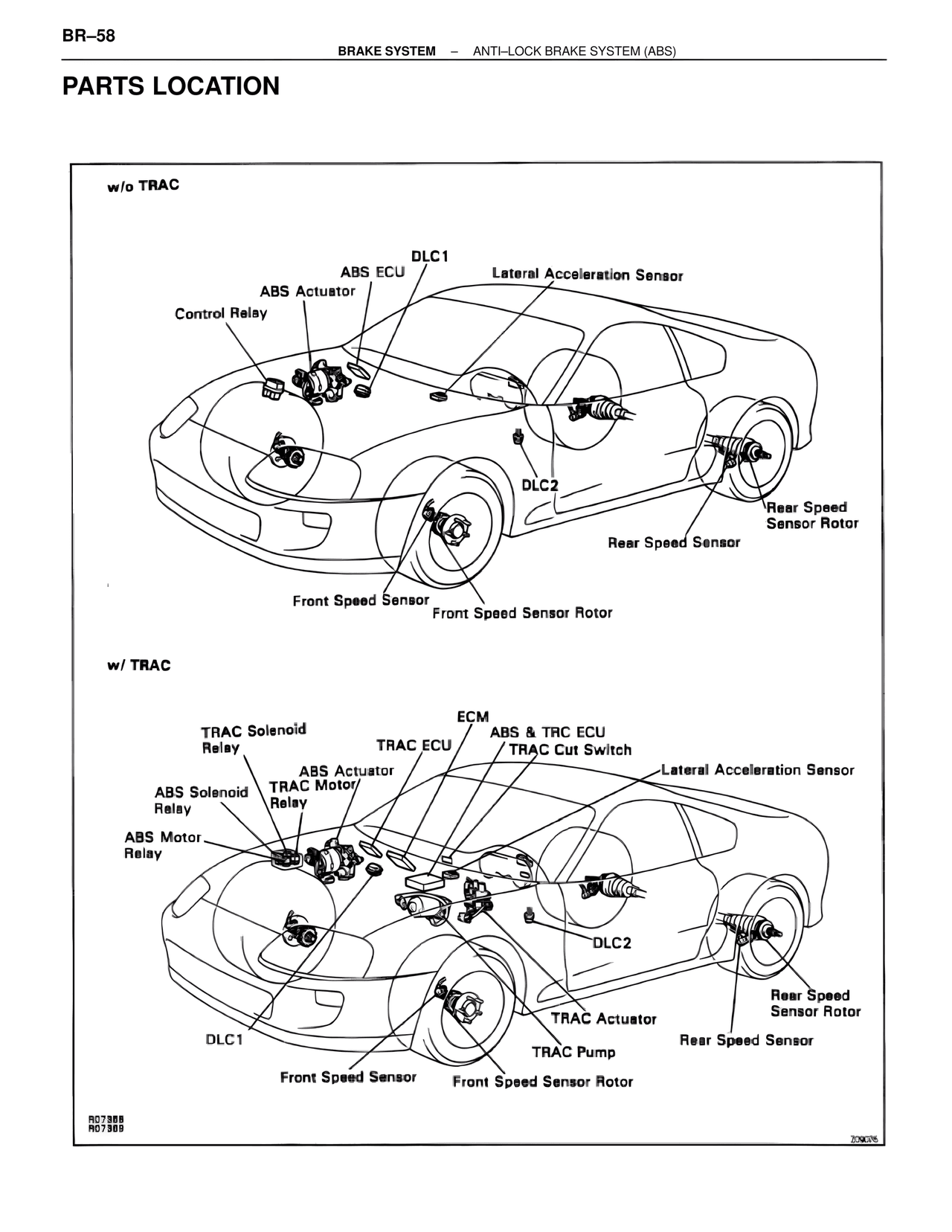

PARTS LOCATION
w/o TRAC
DLC1
ABS ECU
Lateral Acceleration Sensor
ABS Actuator
Control Relay
DLC2
Rear Speed
Sensor Rotor
Rear Speed Sensor
Front Speed Sensor
Front Speed Sensor Rotor
w/ TRAC
ECM
TRAC Solenoid
Relay
TRAC ECU
ABS & TRC ECU
TRAC Cut Switch
ABS Actuator
Lateral Acceleration Sensor
ABS Solenoid
TRAC Motor
Relay
Relay
ABS Motor
Relay
DLC2
Rear Speed
Sensor Rotor
TRAC Actuator
Rear Speed Sensor
DLC1
TRAC Pump
Front Speed Sensor
Front Speed Sensor Rotor
