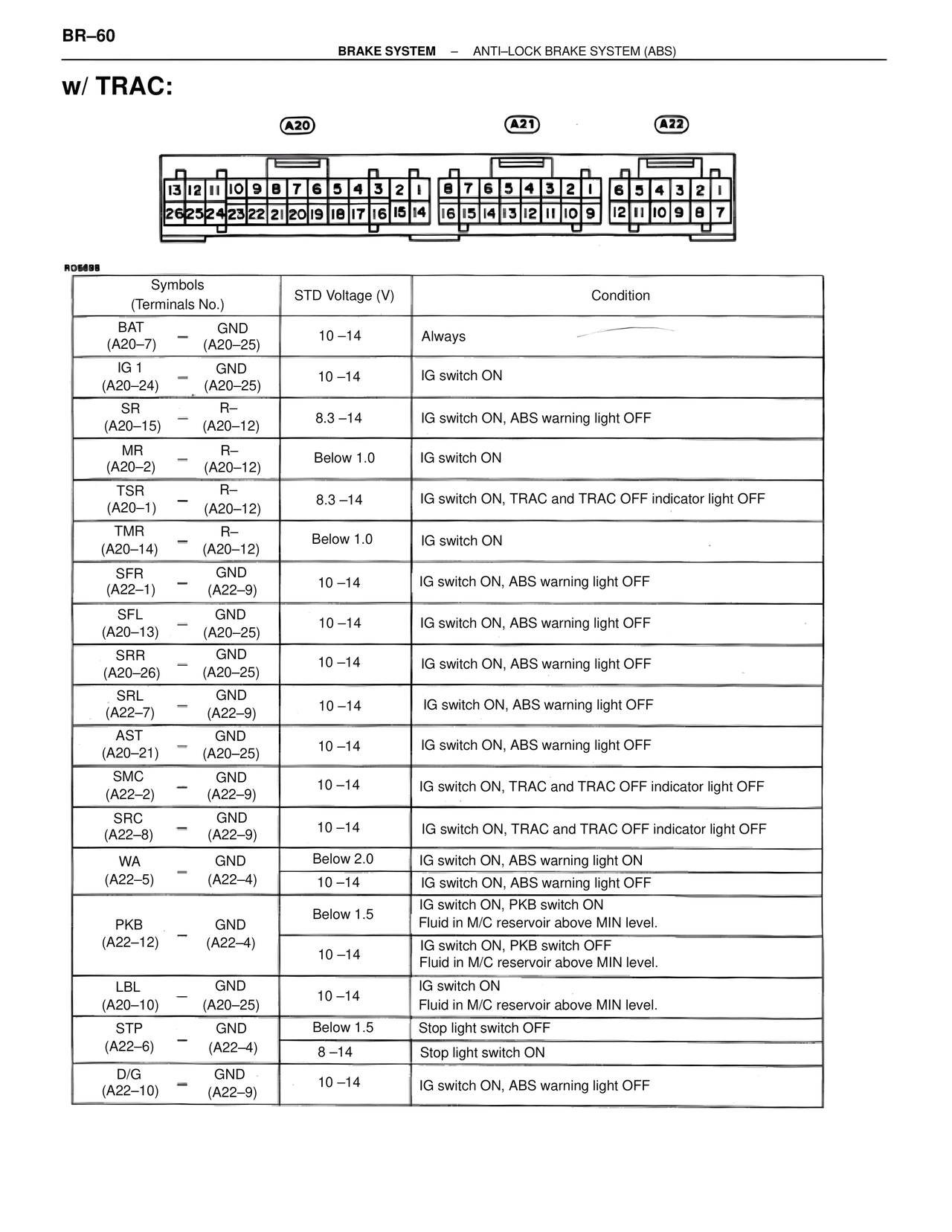

BRAKE SYSTEM – ANTI–LOCK BRAKE SYSTEM (ABS)
w/ TRAC:
A20 A21 A22
13 12 11 10 9 8 7 6 5 4 3 2 1 8 7 6 5 4 3 2 1 6 5 4 3 2 1
26 25 24 23 22 21 20 19 18 17 16 15 14 16 15 14 13 12 11 10 9 12 11 10 9 8 7
RD669B
Symbols (Terminals No.) STD Voltage (V) Condition
BAT (A20–7) – GND (A20–25) 10 –14 Always
IG 1 (A20–24) – GND (A20–25) 10 –14 IG switch ON
SR (A20–15) – R– (A20–12) 8.3 –14 IG switch ON, ABS warning light OFF
MR (A20–2) – R– (A20–12) Below 1.0 IG switch ON
TSR (A20–1) – R– (A20–12) 8.3 –14 IG switch ON, TRAC and TRAC OFF indicator light OFF
TMR (A20–14) – R– (A20–12) Below 1.0 IG switch ON
SFR (A22–1) – GND (A22–9) 10 –14 IG switch ON, ABS warning light OFF
SFL (A20–13) – GND (A20–25) 10 –14 IG switch ON, ABS warning light OFF
SRR (A20–26) – GND (A20–25) 10 –14 IG switch ON, ABS warning light OFF
SRL (A22–7) – GND (A22–9) 10 –14 IG switch ON, ABS warning light OFF
AST (A20–21) – GND (A20–25) 10 –14 IG switch ON, ABS warning light OFF
SMC (A22–2) – GND (A22–9) 10 –14 IG switch ON, TRAC and TRAC OFF indicator light OFF
SRC (A22–8) – GND (A22–9) 10 –14 IG switch ON, TRAC and TRAC OFF indicator light OFF
WA (A22–5) – GND (A22–4) Below 2.0 IG switch ON, ABS warning light ON
10 –14 IG switch ON, ABS warning light OFF
PKB (A22–12) – GND (A22–4) Below 1.5 IG switch ON, PKB switch ON
Fluid in M/C reservoir above MIN level.
10 –14 IG switch ON, PKB switch OFF
Fluid in M/C reservoir above MIN level.
LBL (A20–10) – GND (A20–25) 10 –14 IG switch ON
Fluid in M/C reservoir above MIN level.
STP (A22–6) – GND (A22–4) Below 1.5 Stop light switch OFF
8 –14 Stop light switch ON
D/G (A22–10) – GND (A22–9) 10 –14 IG switch ON, ABS warning light OFF
