BE–10
BODY ELECTRICAL SYSTEM – HEADLIGHT AND TAILLIGHT SYSTEM

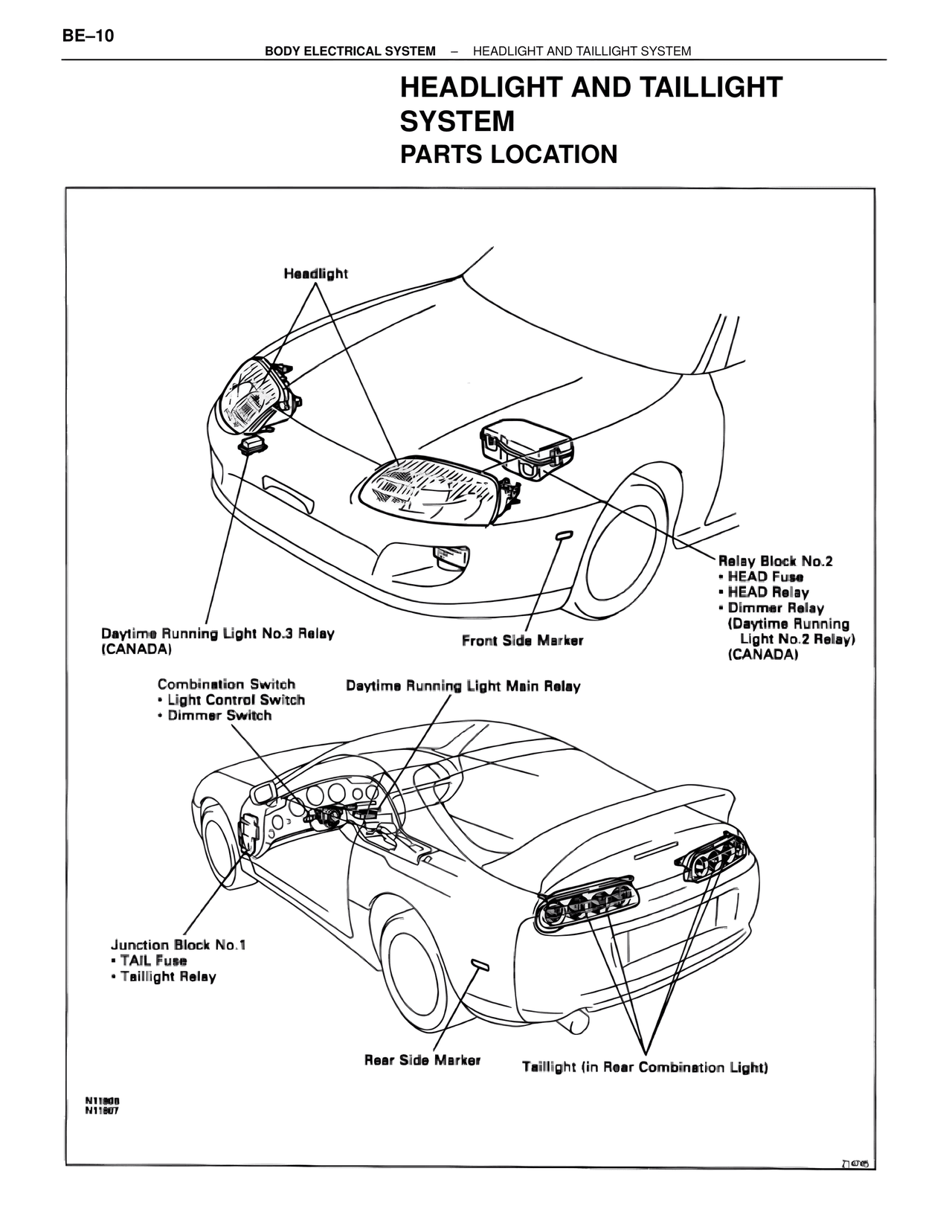

HEADLIGHT AND TAILLIGHT SYSTEM
PARTS LOCATION

Headlight

Relay Block No.2
• HEAD Fuse
• HEAD Relay
• Dimmer Relay
(Daytime Running
Light No.2 Relay)
(CANADA)

Daytime Running Light No.3 Relay
(CANADA)

Front Side Marker

Combination Switch
• Light Control Switch
• Dimmer Switch

Daytime Running Light Main Relay

Junction Block No.1
• TAIL Fuse
• Taillight Relay

Rear Side Marker

Taillight (in Rear Combination Light)

N11808
N11807

214765
