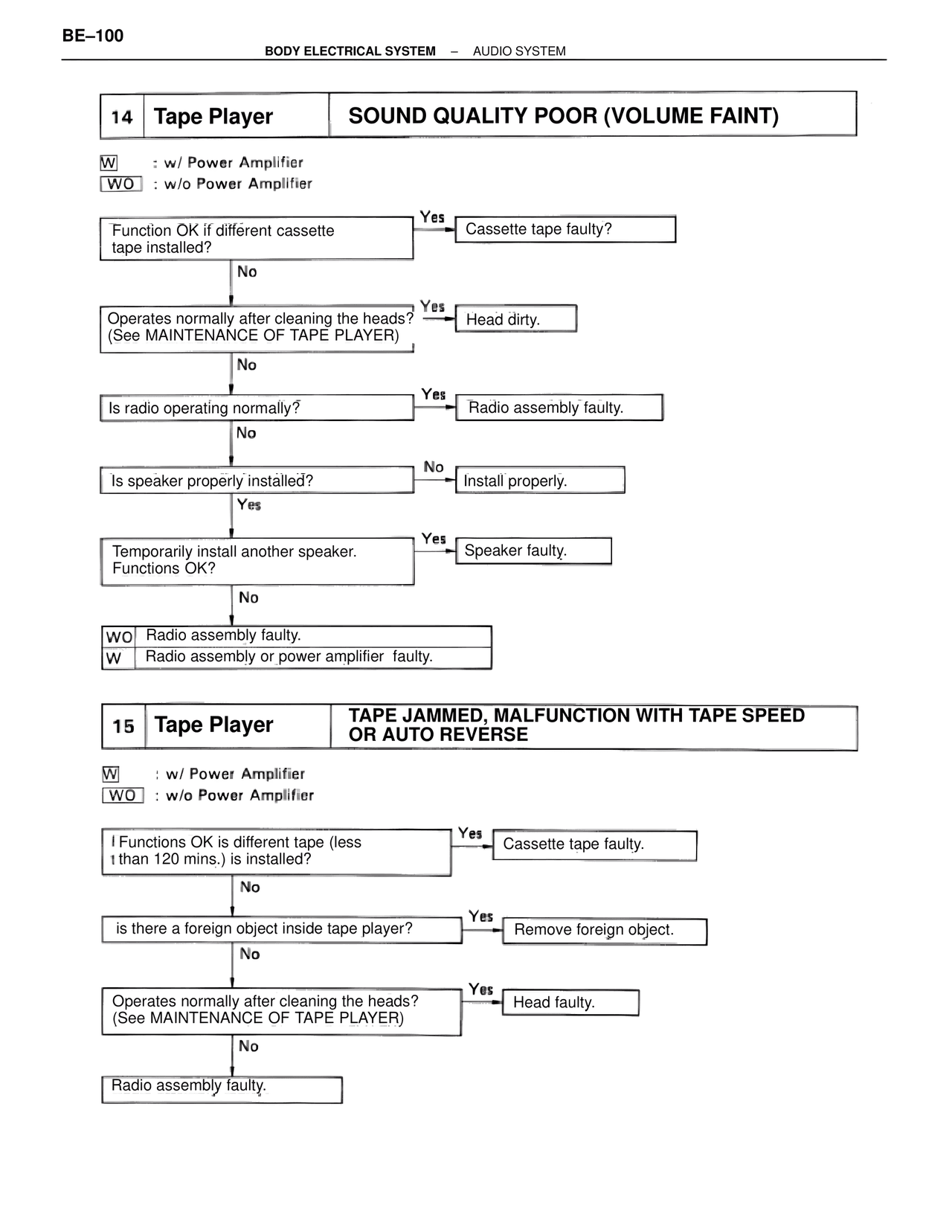

BODY ELECTRICAL SYSTEM – AUDIO SYSTEM
14 Tape Player SOUND QUALITY POOR (VOLUME FAINT)
W : w/ Power Amplifier
WO : w/o Power Amplifier
Function OK if different cassette
tape installed?
Yes → Cassette tape faulty?
No
↓
Operates normally after cleaning the heads?
(See MAINTENANCE OF TAPE PLAYER)
Yes → Head dirty.
No
↓
Is radio operating normally?
Yes → Radio assembly faulty.
No
↓
Is speaker properly installed?
No → Install properly.
Yes
↓
Temporarily install another speaker.
Functions OK?
Yes → Speaker faulty.
No
↓
WO Radio assembly faulty.
W Radio assembly or power amplifier faulty.
15 Tape Player TAPE JAMMED, MALFUNCTION WITH TAPE SPEED
OR AUTO REVERSE
W : w/ Power Amplifier
WO : w/o Power Amplifier
I Functions OK is different tape (less
t than 120 mins.) is installed?
Yes → Cassette tape faulty.
No
↓
is there a foreign object inside tape player?
Yes → Remove foreign object.
No
↓
Operates normally after cleaning the heads?
(See MAINTENANCE OF TAPE PLAYER)
Yes → Head faulty.
No
↓
Radio assembly faulty.
