BODY ELECTRICAL SYSTEM – AUDIO SYSTEM

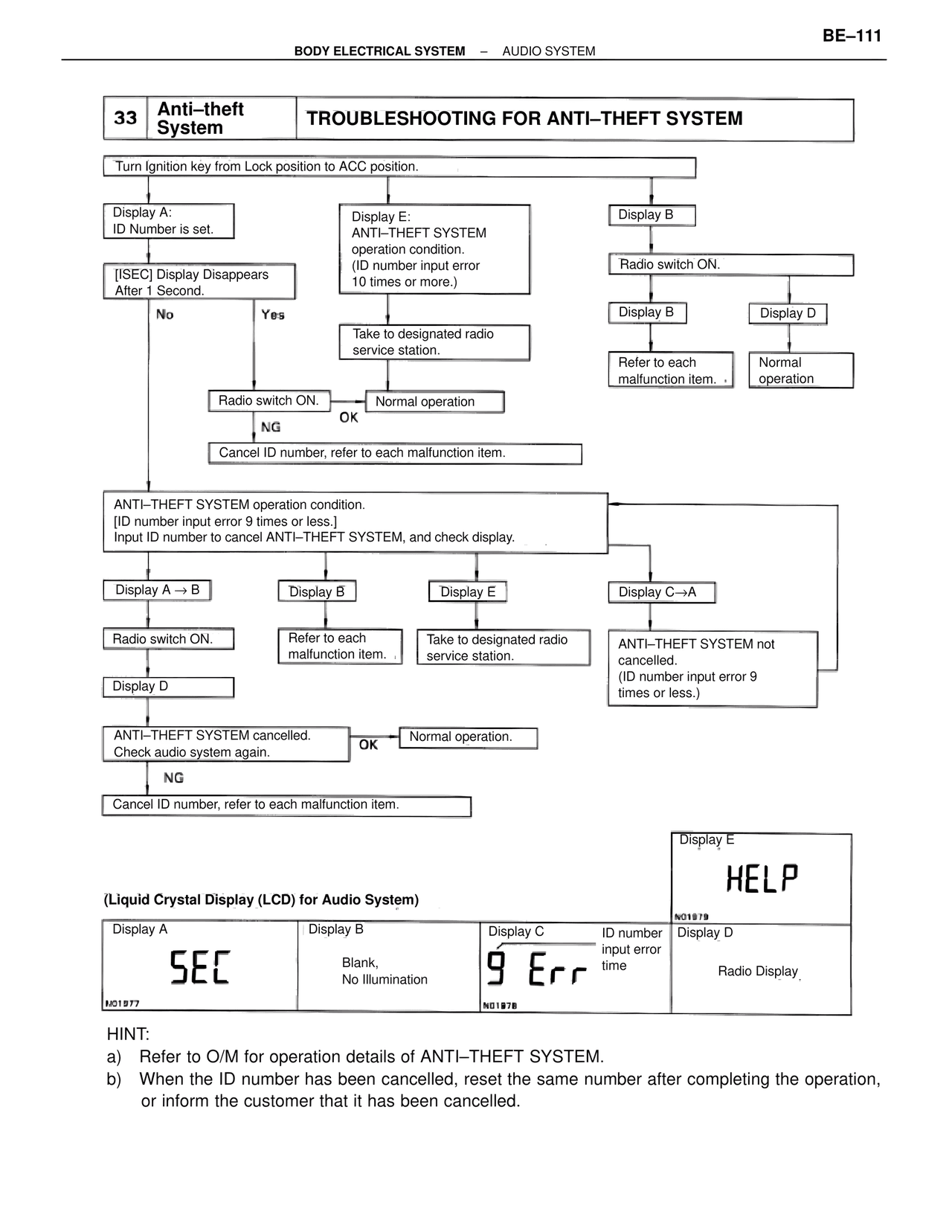

33 | Anti–theft System | TROUBLESHOOTING FOR ANTI–THEFT SYSTEM
Turn Ignition key from Lock position to ACC position.
Display A:
ID Number is set.
[ISEC] Display Disappears
After 1 Second.
No Yes
Display E:
ANTI–THEFT SYSTEM
operation condition.
(ID number input error
10 times or more.)
Take to designated radio
service station.
Radio switch ON. Normal operation
NG OK
Cancel ID number, refer to each malfunction item.
Display B
Radio switch ON.
Display B Display D
Refer to each Normal
malfunction item. operation
ANTI–THEFT SYSTEM operation condition.
[ID number input error 9 times or less.]
Input ID number to cancel ANTI–THEFT SYSTEM, and check display.
Display A → B Display B Display E Display C→A
Radio switch ON. Refer to each Take to designated radio ANTI–THEFT SYSTEM not
malfunction item. service station. cancelled.
(ID number input error 9
Display D times or less.)
ANTI–THEFT SYSTEM cancelled. OK Normal operation.
Check audio system again.
NG
Cancel ID number, refer to each malfunction item.
(Liquid Crystal Display (LCD) for Audio System)
Display A Display B Display C ID number Display E
input error
SEC Blank, 9 Err time HELP
No Illumination
N01977 N01378 N01979
Display D
Radio Display
HINT:
a) Refer to O/M for operation details of ANTI–THEFT SYSTEM.
b) When the ID number has been cancelled, reset the same number after completing the operation,
or inform the customer that it has been cancelled.
