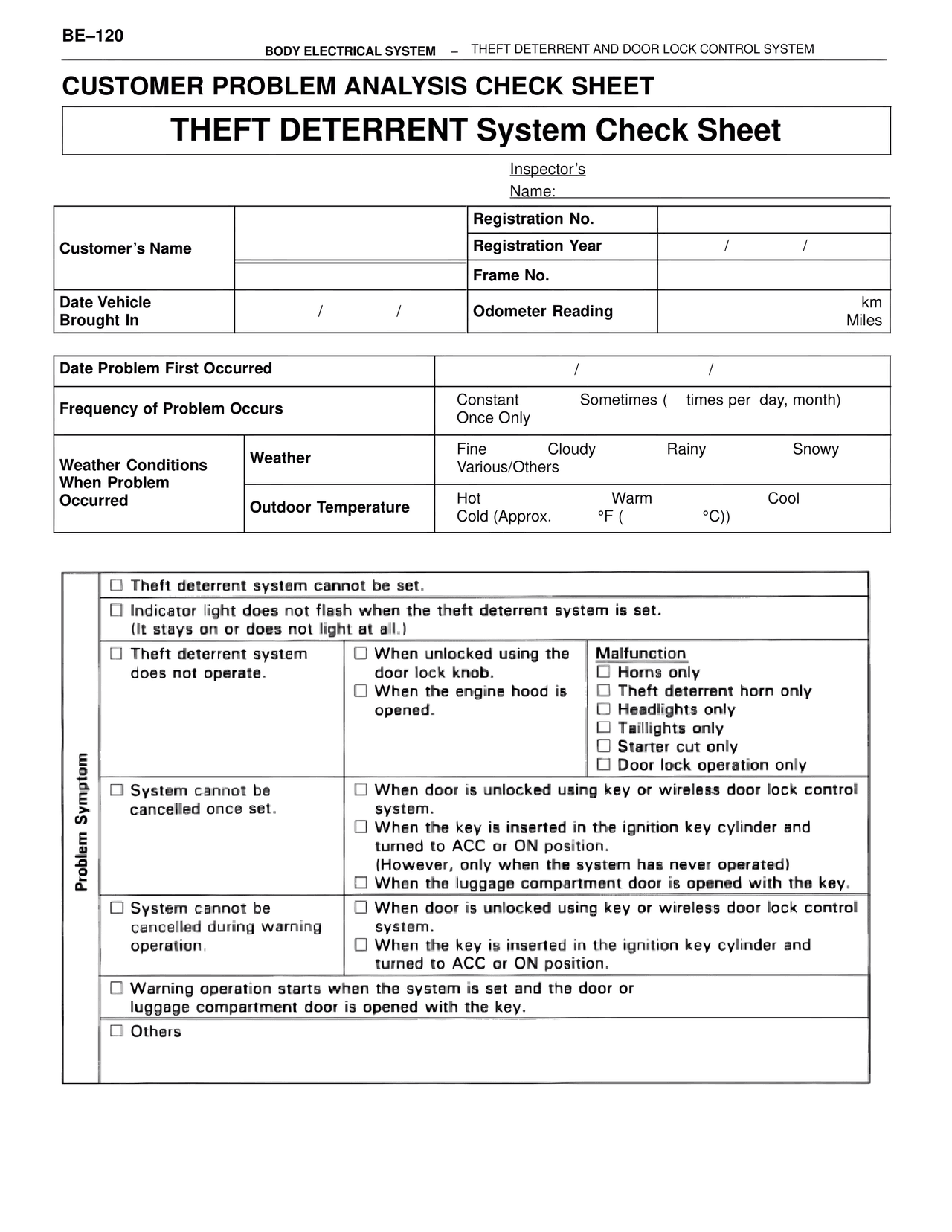

BE–120
BODY ELECTRICAL SYSTEM – THEFT DETERRENT AND DOOR LOCK CONTROL SYSTEM
CUSTOMER PROBLEM ANALYSIS CHECK SHEET
THEFT DETERRENT System Check Sheet
Inspector's
Name:
Customer's Name
Registration No.
Registration Year / /
Frame No.
Date Vehicle
Brought In / /
Odometer Reading km
Miles
Date Problem First Occurred / /
Frequency of Problem Occurs Constant Sometimes ( times per day, month)
Once Only
Weather Conditions
When Problem
Occurred
Weather Fine Cloudy Rainy Snowy
Various/Others
Outdoor Temperature Hot Warm Cool
Cold (Approx. °F ( °C))
Problem Symptom
□ Theft deterrent system cannot be set.
□ Indicator light does not flash when the theft deterrent system is set.
(It stays on or does not light at all.)
□ Theft deterrent system □ When unlocked using the Malfunction
does not operate. door lock knob. □ Horns only
□ When the engine hood is □ Theft deterrent horn only
opened. □ Headlights only
□ Taillights only
□ Starter cut only
□ Door lock operation only
□ System cannot be □ When door is unlocked using key or wireless door lock control
cancelled once set. system.
□ When the key is inserted in the ignition key cylinder and
turned to ACC or ON position.
(However, only when the system has never operated)
□ When the luggage compartment door is opened with the key.
□ System cannot be □ When door is unlocked using key or wireless door lock control
cancelled during warning system.
operation. □ When the key is inserted in the ignition key cylinder and
turned to ACC or ON position.
□ Warning operation starts when the system is set and the door or
luggage compartment door is opened with the key.
□ Others
