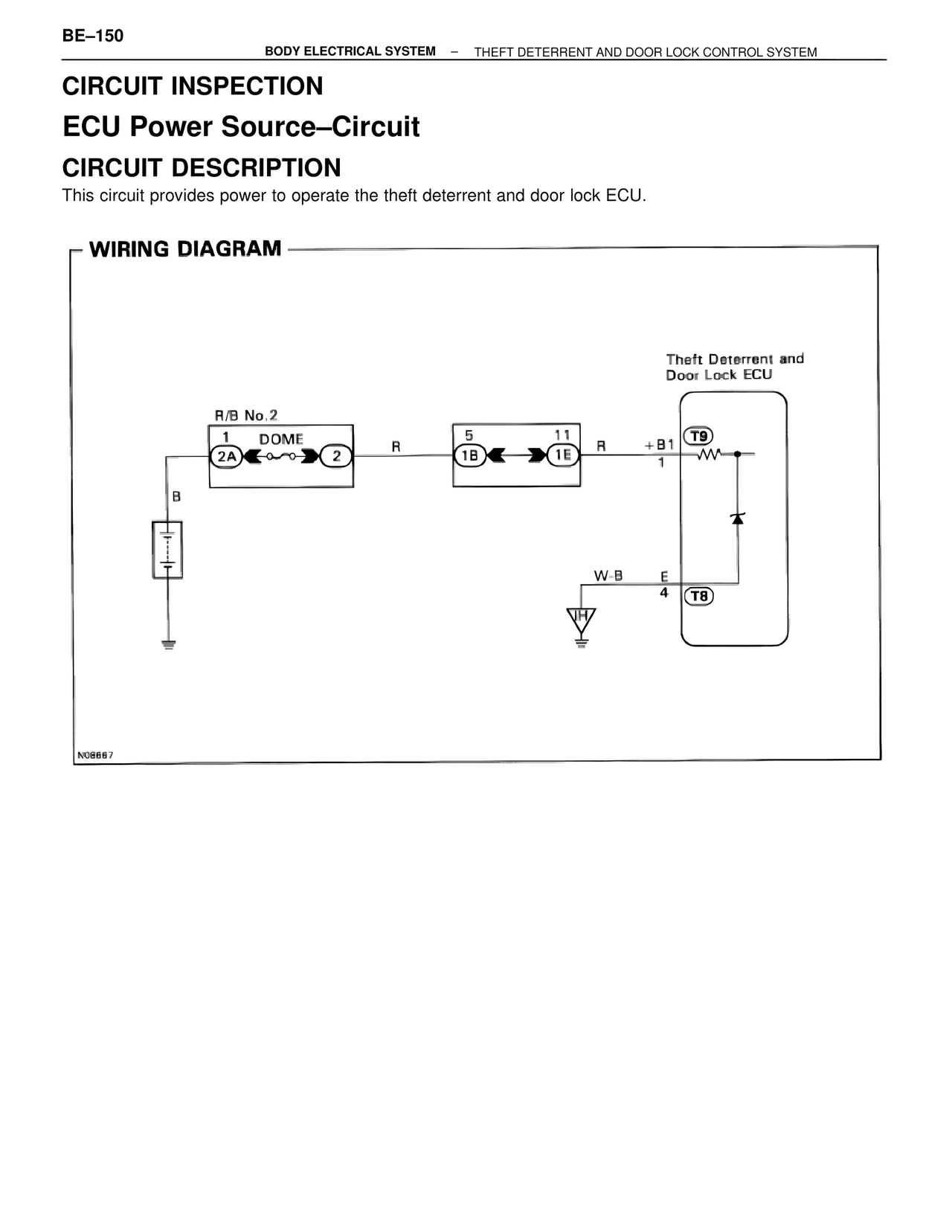

BE/Body Electrical Systems — Circuit Inspection ECU Power Source–Circuit, page 150

BE–150
BODY ELECTRICAL SYSTEM – THEFT DETERRENT AND DOOR LOCK CONTROL SYSTEM

CIRCUIT INSPECTION
ECU Power Source–Circuit
CIRCUIT DESCRIPTION
This circuit provides power to operate the theft deterrent and door lock ECU.

WIRING DIAGRAM

R/B No.2
1        DOME
2A              2
B

R
5        11
1B        1E
R
+B1
1

W-B
E
4

Theft Deterrent and
Door Lock ECU
T9
T8

N08667
