BODY ELECTRICAL SYSTEM – THEFT DETERRENT AND DOOR LOCK CONTROL SYSTEM

Actuator Power Source Circuit

CIRCUIT DESCRIPTION

This circuit provides power to drive the door lock motor.

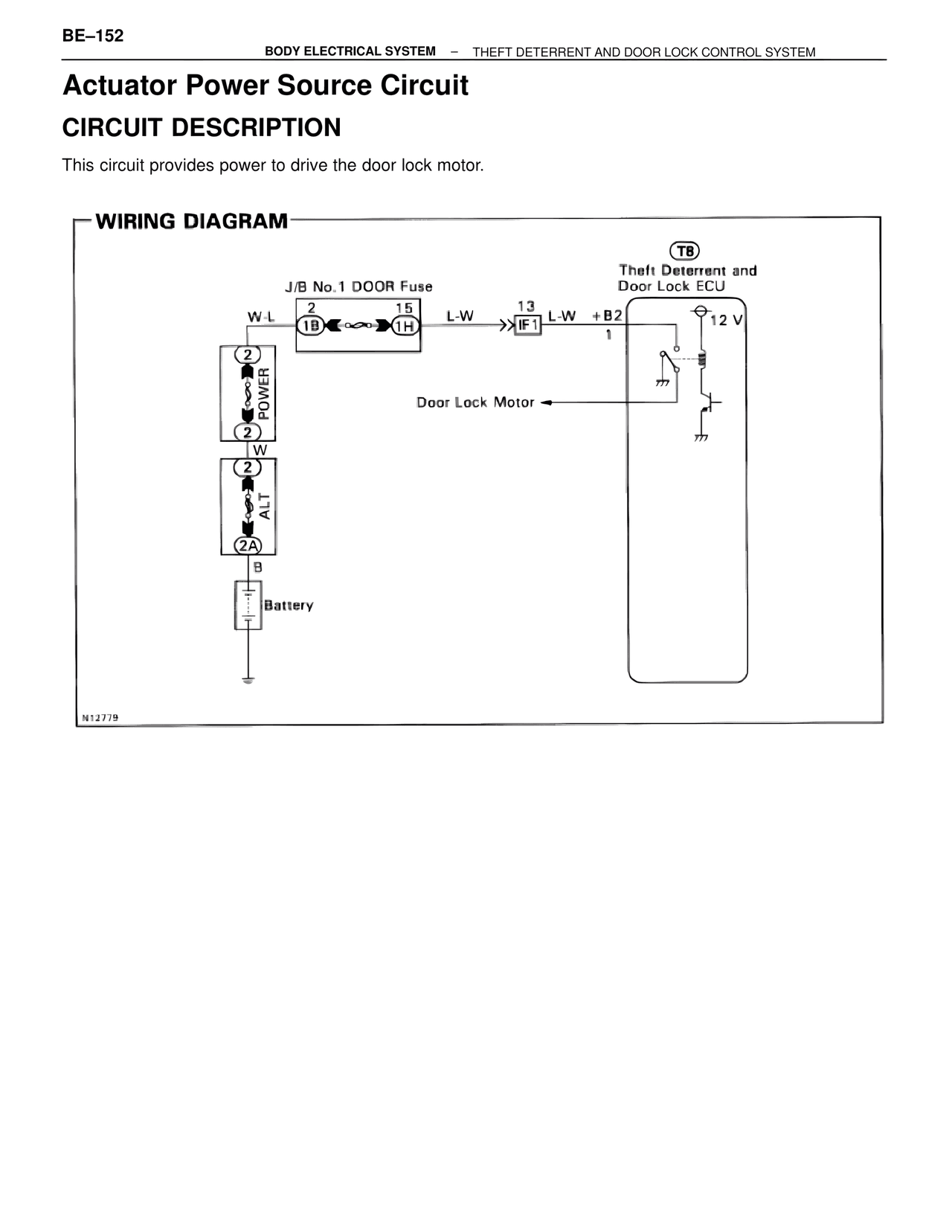

WIRING DIAGRAM

T8
Theft Deterrent and
Door Lock ECU

J/B No.1 DOOR Fuse
2        15
1B       1H

W-L                    L-W        13      L-W    +B2
                                  IF1            1

2
POWER
2

W
2
ALT
2A

B
Battery

+12 V

Door Lock Motor

N12779
