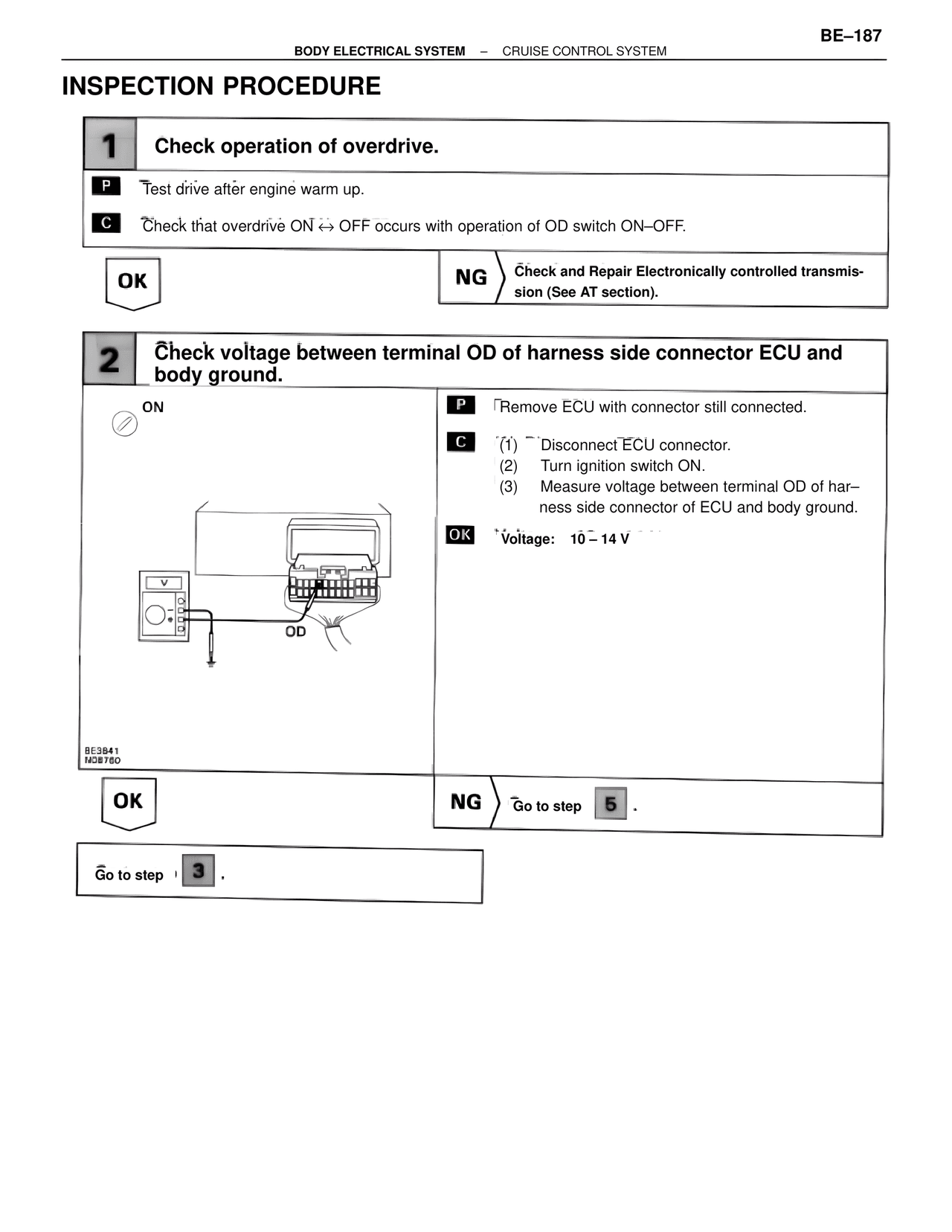

BE–187
BODY ELECTRICAL SYSTEM – CRUISE CONTROL SYSTEM
INSPECTION PROCEDURE
1 Check operation of overdrive.
P Test drive after engine warm up.
C Check that overdrive ON ↔ OFF occurs with operation of OD switch ON–OFF.
OK NG Check and Repair Electronically controlled transmission (See AT section).
2 Check voltage between terminal OD of harness side connector ECU and body ground.
ON
P Remove ECU with connector still connected.
C (1) Disconnect ECU connector.
(2) Turn ignition switch ON.
(3) Measure voltage between terminal OD of harness side connector of ECU and body ground.
OK Voltage: 10 – 14 V
OD
BE3841
NO8760
OK NG Go to step 5 .
Go to step 3 .
