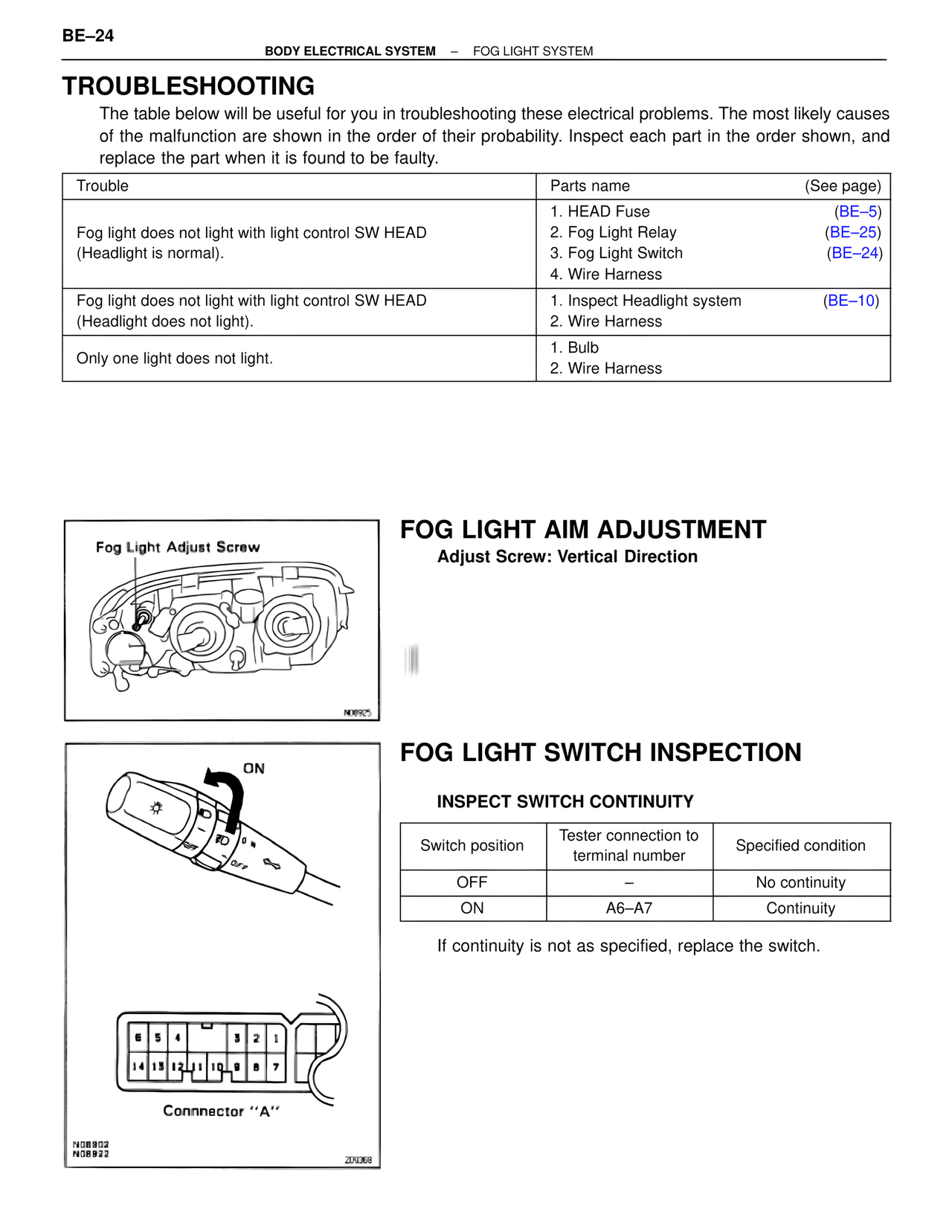

BE–24
BODY ELECTRICAL SYSTEM – FOG LIGHT SYSTEM
TROUBLESHOOTING
The table below will be useful for you in troubleshooting these electrical problems. The most likely causes
of the malfunction are shown in the order of their probability. Inspect each part in the order shown, and
replace the part when it is found to be faulty.
Trouble | Parts name | (See page)
Fog light does not light with light control SW HEAD
(Headlight is normal).
1. HEAD Fuse (BE–5)
2. Fog Light Relay (BE–25)
3. Fog Light Switch (BE–24)
4. Wire Harness
Fog light does not light with light control SW HEAD
(Headlight does not light).
1. Inspect Headlight system (BE–10)
2. Wire Harness
Only one light does not light.
1. Bulb
2. Wire Harness
Fog Light Adjust Screw
N08925
FOG LIGHT AIM ADJUSTMENT
Adjust Screw: Vertical Direction
ON
FOG LIGHT SWITCH INSPECTION
INSPECT SWITCH CONTINUITY
Switch position | Tester connection to terminal number | Specified condition
OFF | – | No continuity
ON | A6–A7 | Continuity
If continuity is not as specified, replace the switch.
6 5 4 3 2 1
14 13 12 11 10 9 8 7
Connnector "A"
N08902
N08922
209368
