TSRM/MK4 Supra/Repair Manual
Repair ManualWiring Diagrams
p.025
BE/Body Electrical Systems26 / 203
p.027
INTERIOR LIGHT SYSTEM PARTS LOCATION — MK4 Supra Body Electrical Systems, page 26
100%

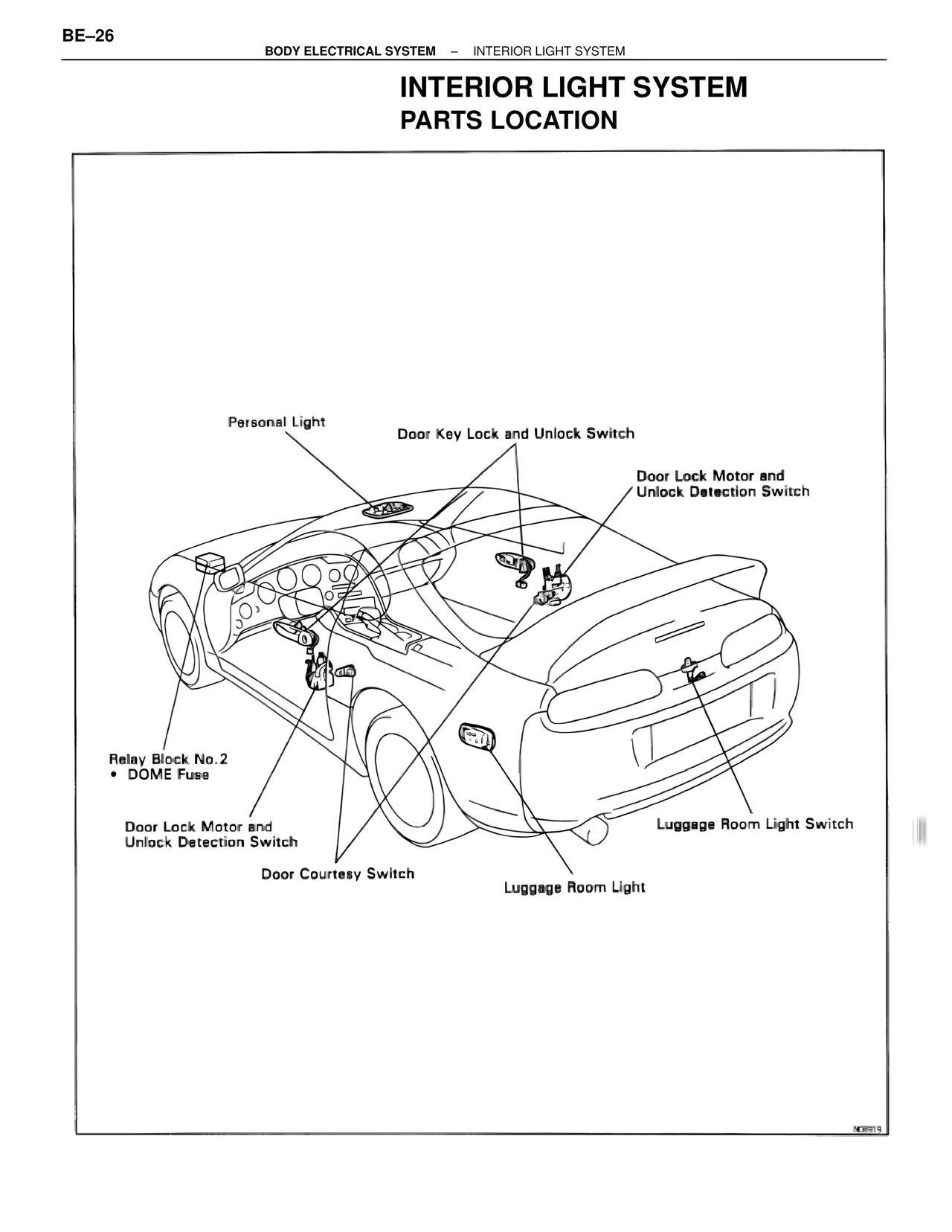

BE–26 BODY ELECTRICAL SYSTEM – INTERIOR LIGHT SYSTEM INTERIOR LIGHT SYSTEM PARTS LOCATION Personal Light Door Key Lock and Unlock Switch Door Lock Motor and Unlock Detection Switch Relay Block No. 2 • DOME Fuse Door Lock Motor and Unlock Detection Switch Door Courtesy Switch Luggage Room Light Luggage Room Light Switch NOB019
