COMBINATION METER PARTS LOCATION — MK4 Supra Body Electrical Systems, page 40
100%

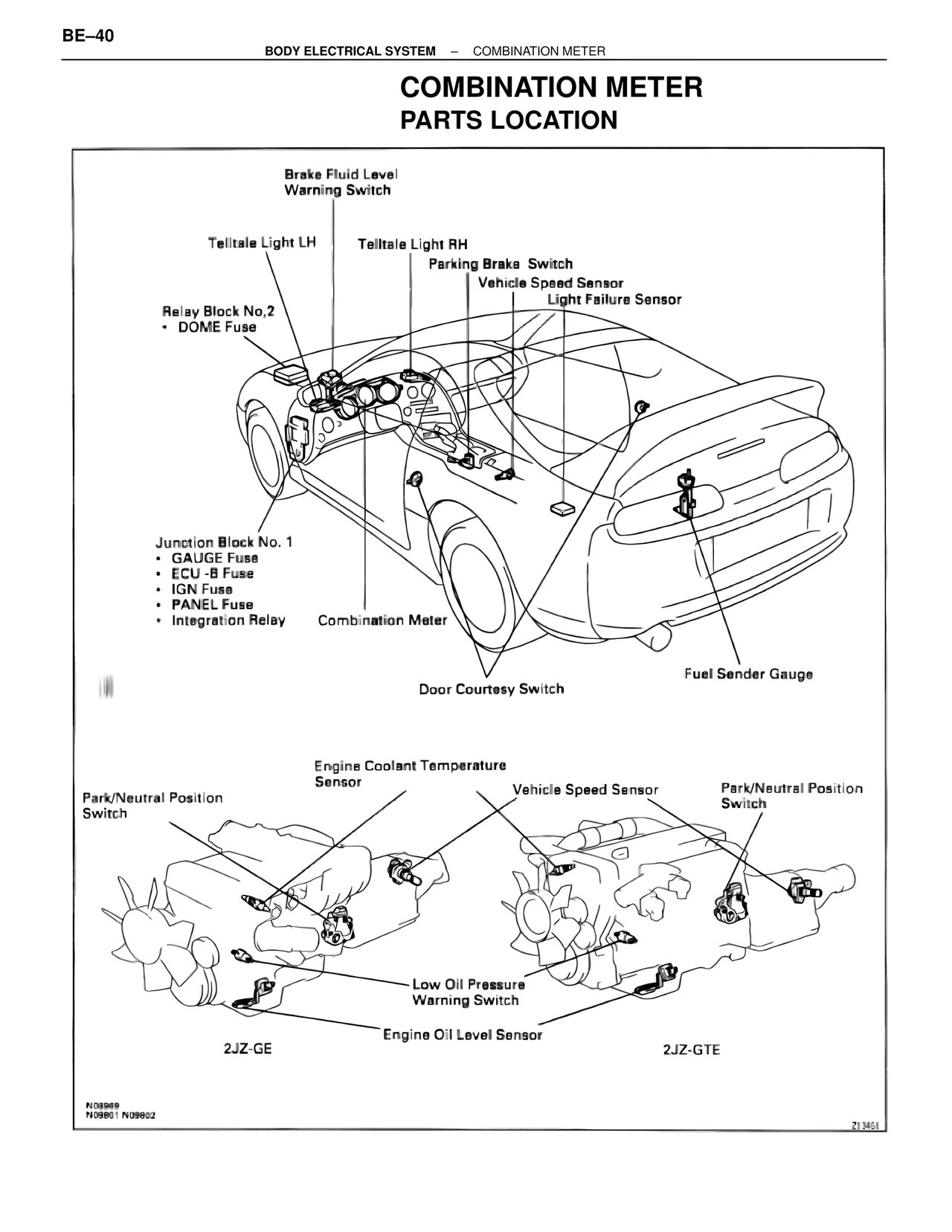

BE–40 BODY ELECTRICAL SYSTEM – COMBINATION METER COMBINATION METER PARTS LOCATION Brake Fluid Level Warning Switch Telltale Light LH Telltale Light RH Parking Brake Switch Vehicle Speed Sensor Light Failure Sensor Relay Block No,2 • DOME Fuse Junction Block No. 1 • GAUGE Fuse • ECU -B Fuse • IGN Fuse • PANEL Fuse • Integration Relay Combination Meter Door Courtesy Switch Fuel Sender Gauge Engine Coolant Temperature Sensor Vehicle Speed Sensor Park/Neutral Position Switch Park/Neutral Position Switch Low Oil Pressure Warning Switch Engine Oil Level Sensor 2JZ-GE 2JZ-GTE N09969 N09801 N09802 ZI3464
