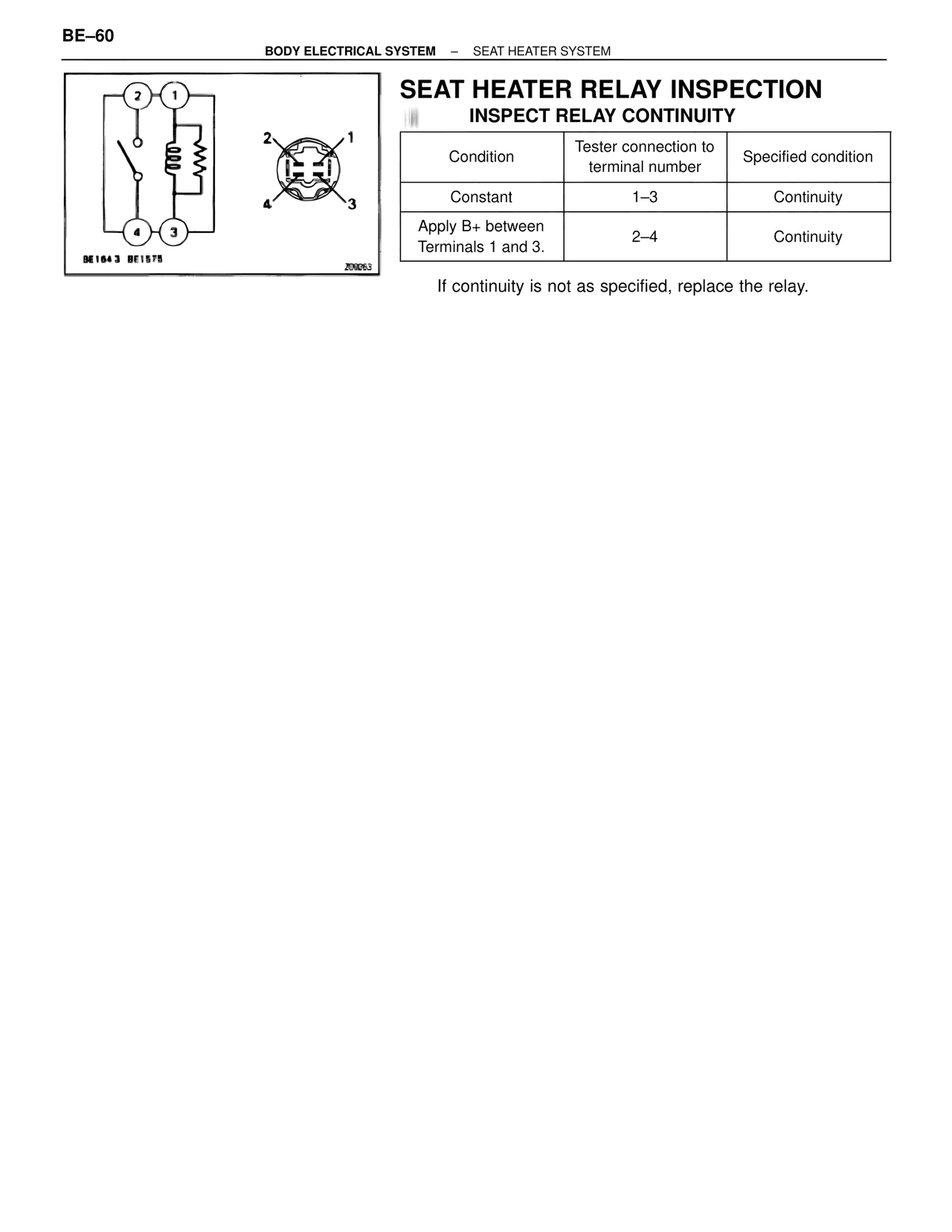

BE-60
BODY ELECTRICAL SYSTEM – SEAT HEATER SYSTEM
SEAT HEATER RELAY INSPECTION
INSPECT RELAY CONTINUITY
Condition | Tester connection to terminal number | Specified condition
Constant | 1–3 | Continuity
Apply B+ between Terminals 1 and 3. | 2–4 | Continuity
If continuity is not as specified, replace the relay.
BE1643 BE1575
200063
